Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Brake Pedal Push Rod Retainer (1) - Install NEW
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Align the power brake booster pushrod with the brake pedal retainer.

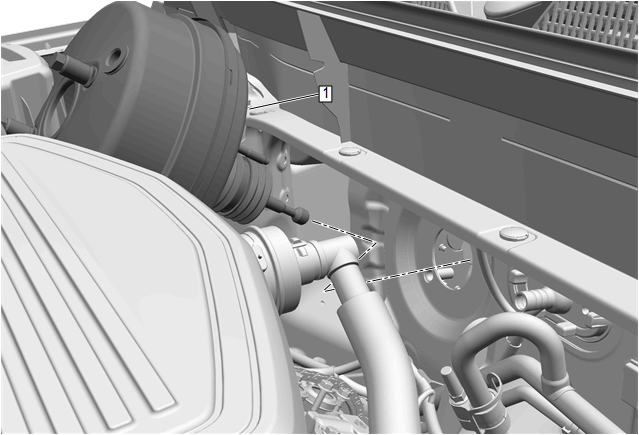

Power Brake Booster (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

Power Brake Booster Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Attach the brake pedal push rod retainer (1) to the brake pedal push rod (2).
Brake Pedal Position Sensor - Install - Brake Pedal Position Sensor Replacement
Camshaft Cover-Right Side - Install - Camshaft Cover Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

Brake Master Cylinder (1) - Install - Brake Master Cylinder Replacement (Holden)
Courtesy of GENERAL MOTORS COMPANY

NOTE:
A small amount of denatured alcohol may be used as a lubricant for assembly.

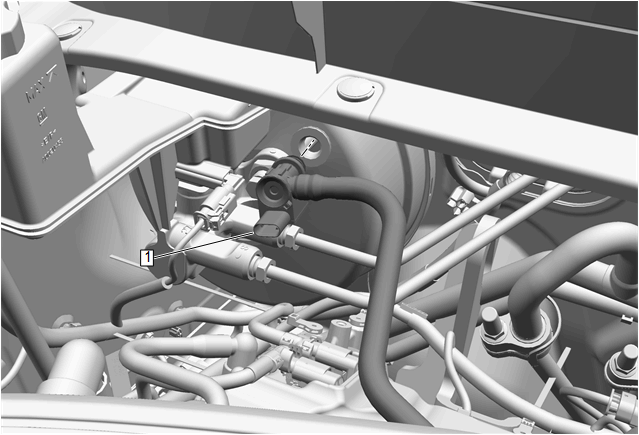

Power Brake Booster Vacuum Sensor (1) - Install
Connect the electrical connector.
