Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

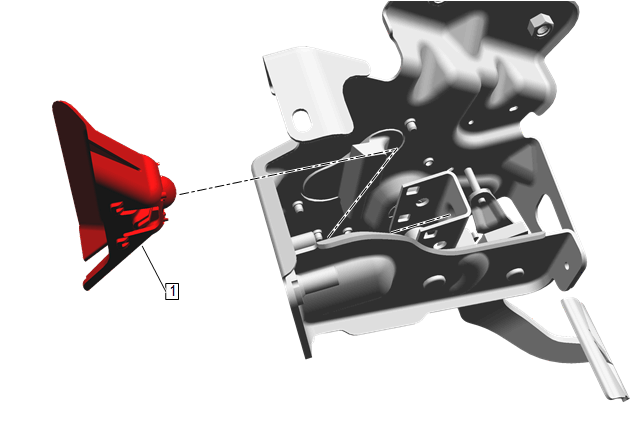

Brake Pedal Push Rod Retainer (1) - Install NEW

NOTE:

Align the power brake booster pushrod with the brake pedal retainer.

Brake Pedal Assembly - Install
Position the brake and accelerator pedal assembly and secure the wire harness retainer.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

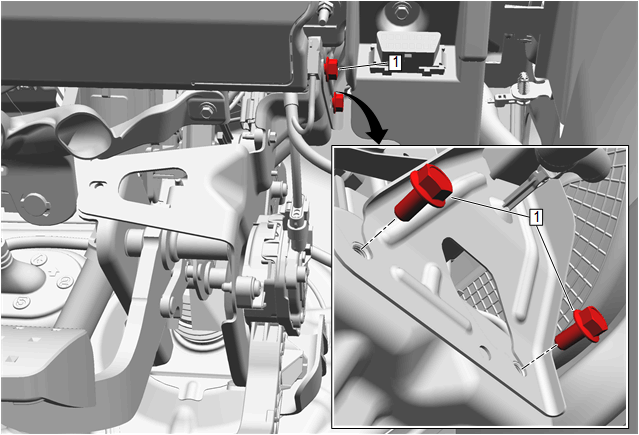

Brake Pedal Bracket Bolt (1) - Install and tighten [2x] 15 N.m (11 lb ft)
Courtesy of GENERAL MOTORS COMPANY

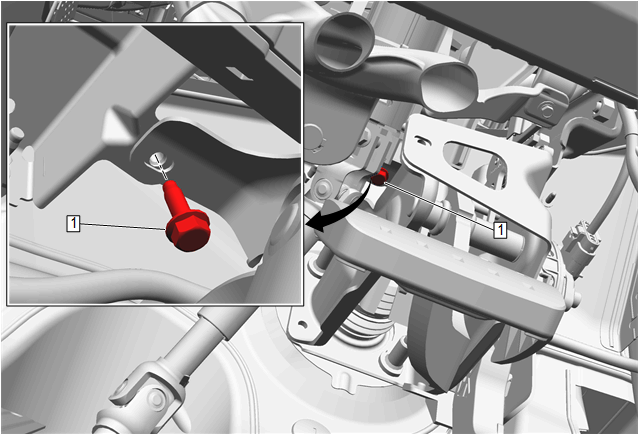

Brake Pedal Bracket Bolt (1) - Install and tighten 15 N.m (11 lb ft)
Courtesy of GENERAL MOTORS COMPANY

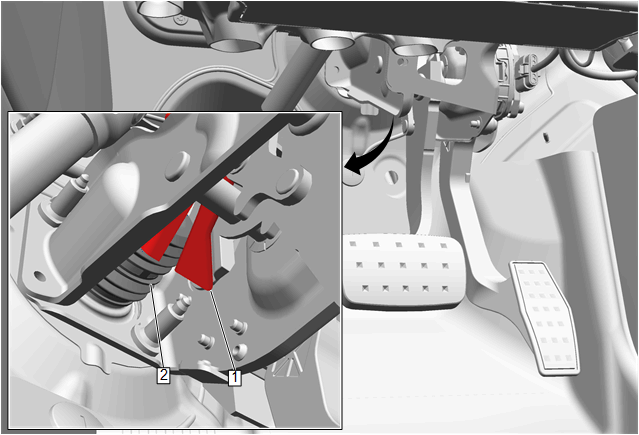

Attach the brake pedal push rod retainer (1) to the brake pedal push rod (2).
Accelerator Pedal with Position Sensor Assembly Electrical Connector - Connect
Brake Pedal Position Sensor - Install - Brake Pedal Position Sensor Replacement
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

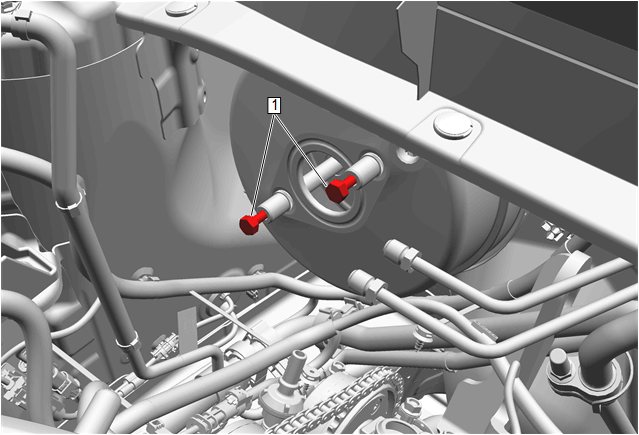

Power Brake Booster Bolt (1) - Install [2x] - Power Brake Booster Replacement (Holden)
Courtesy of GENERAL MOTORS COMPANY

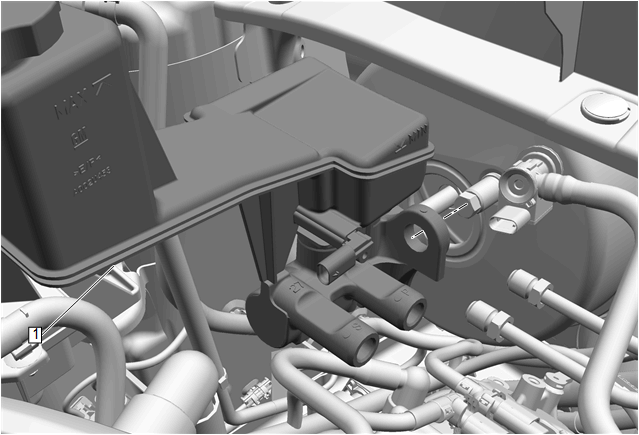

Brake Master Cylinder (1) - Install - Brake Master Cylinder Replacement (Holden)
