Installation Procedure
- Brake Pressure Modulator Valve Master Cylinder Reservoir Rear Brake Pipe - Install

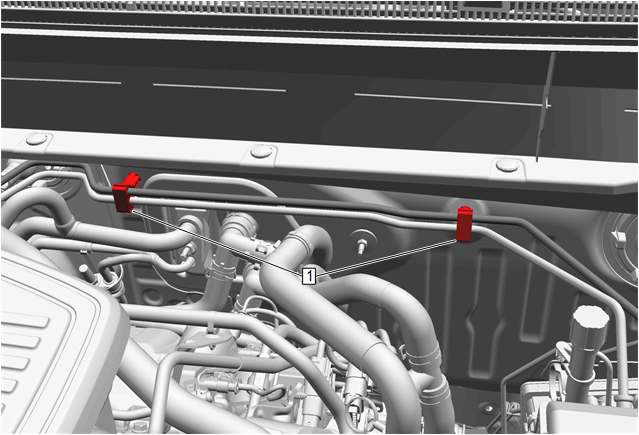

Retainer (1) - Install [2x]

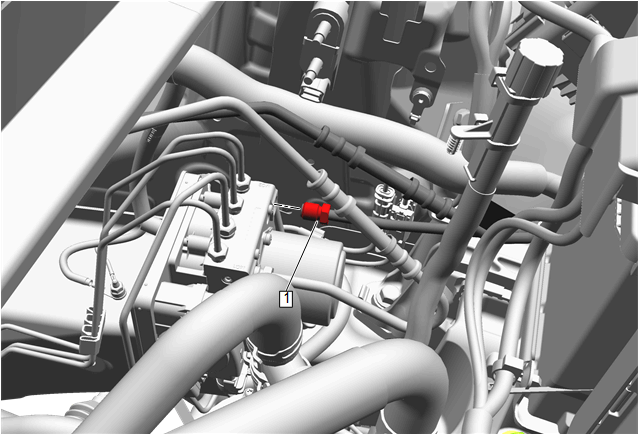

Remove the plug from the brake pressure modulator valve inlet port.
- Brake Pressure Modulator Valve Master Cylinder Reservoir Rear Brake Pipe Fitting (1) - Install - Electronic Brake Control Module with Brake Pressure Modulator Valve Replacement (Holden)

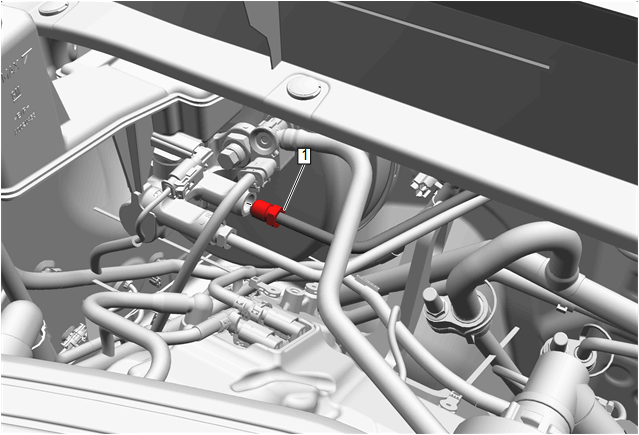

Remove the plug from the master cylinder outlet port.
- Brake Pressure Modulator Valve Master Cylinder Reservoir Rear Brake Pipe Fitting (1) - Install - Brake Master Cylinder Replacement (Holden)
- Reposition and install the radiator surge tank. Radiator Surge Tank Replacement (LGX with V08) , or Radiator Surge Tank Replacement (LCV)
- Bleed the brake system. Hydraulic Brake System Bleeding (Manual) , or Hydraulic Brake System Bleeding (Pressure)
