Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Brake Master Cylinder Gasket - Install NEW
Brake Master Cylinder Assembly (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

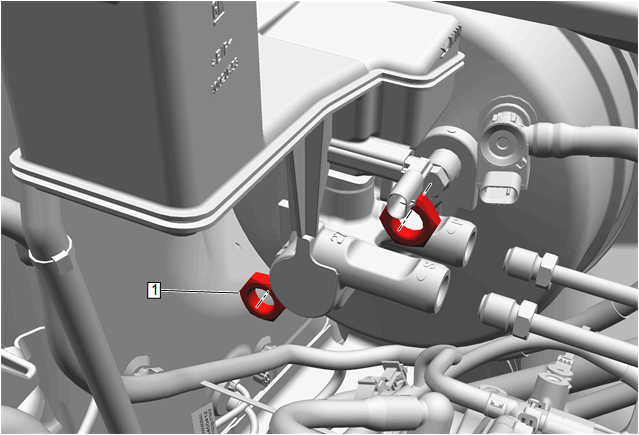

Brake Master Cylinder Nut (1) - Install NEW and tighten [2x] 49 N.m (36 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Remove the caps form the brake pipe fittings.

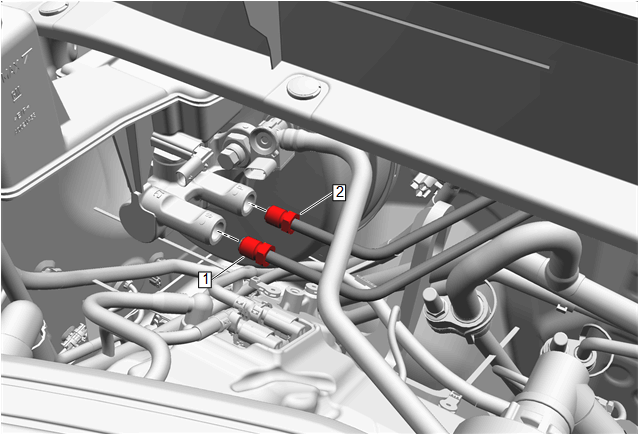

Brake Pressure Modulator Valve Master Cylinder Reservoir Rear Brake Pipe Fitting (1) - Install and tighten 32 N.m (24 lb ft)
Brake Pressure Modulator Valve Master Cylinder Reservoir Front Brake Pipe Fitting (2) - Install and tighten 32 N.m (24 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors. (1)
Bleed the brake system. Hydraulic Brake System Bleeding (Manual) , or Hydraulic Brake System Bleeding (Pressure)
