Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

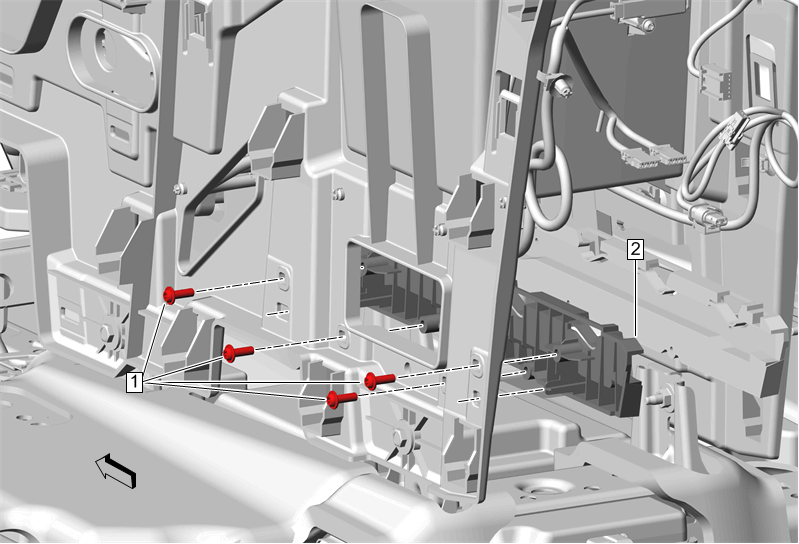

Front Floor Console Rear Cup Holder Guide (2) - Install

CAUTION:

Front Floor Console Bolt (1) - Install and tighten [4x] 1.5 N.m (13 lb in)
Courtesy of GENERAL MOTORS COMPANY

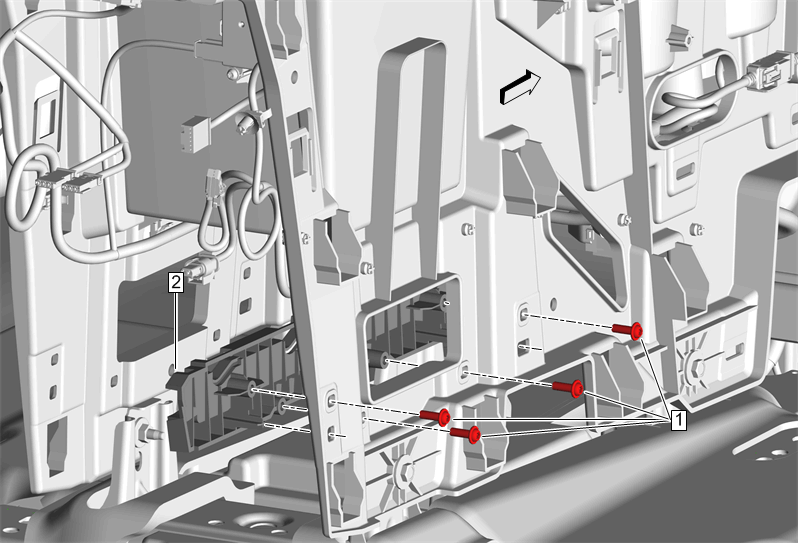

Front Floor Console Rear Cup Holder Guide (2) - Install
Front Floor Console Bolt (1) - Install and tighten [4x] 1.5 N.m (13 lb in)
Courtesy of GENERAL MOTORS COMPANY

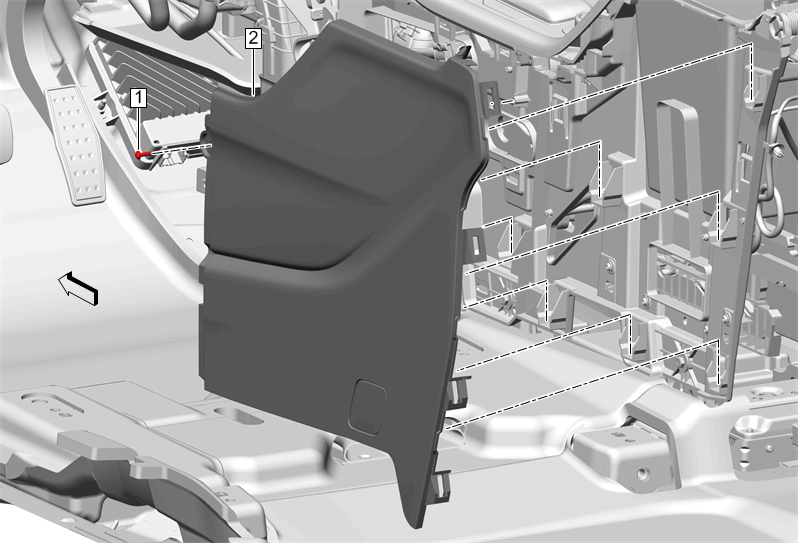

Front Floor Rear Console Side Trim Panel - Left Side (2) - Install - Front Floor Rear Console Side Trim Panel Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

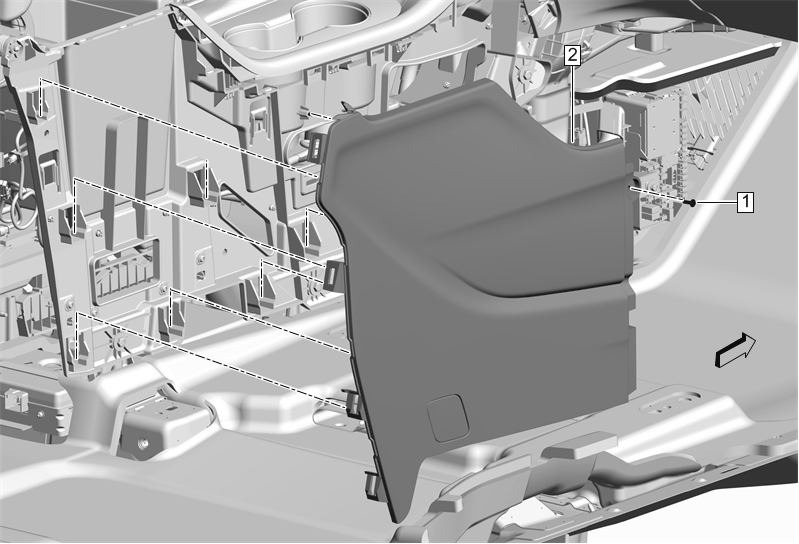

Front Floor Rear Console Side Trim Panel - Right Side (2) - Install - Front Floor Rear Console Side Trim Panel Replacement - Right Side
