Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Left Side (3) - Remove - Front Floor Console Extension Panel Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Right Side (3) - Remove - Front Floor Console Extension Panel Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

Transmission Control Lever Knob (3) - Remove - Transmission Control Lever Knob Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Cup Holder Liner (1) - Remove
Front Floor Console Trim Plate Bolt (2) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

Use a suitable tool to release the front floor console bolt access hole cover (1) from the front floor rear console side trim panel.
Front Floor Console Retainer Bolt (2) - Remove [5x]
Courtesy of GENERAL MOTORS COMPANY

Use a suitable tool to release the front floor console bolt access hole cover (1) from the front floor rear console side trim panel.
Front Floor Console Retainer Bolt (2) - Remove [5x]
Slide the front floor console back to clear the pins from the instrument panel assembly.
Courtesy of GENERAL MOTORS COMPANY

Use a flat bladed plastic trim tool.
Start at the rear of the front floor console trim plate (1) and work your way forward.
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Trim Plate (1) - Remove
Disconnect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

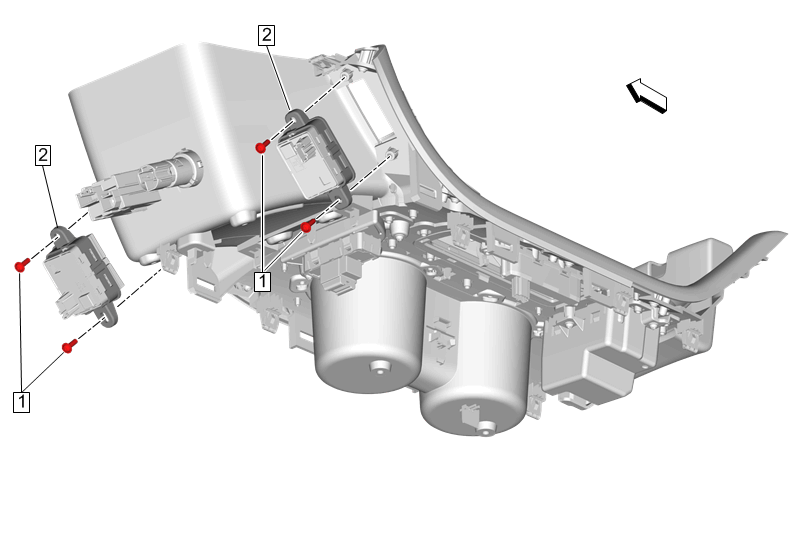

Front Floor Console Bolt (1) - Remove [4x]
Front Floor Console Accessory Switch Mount Plate (2) - Remove [2x]
Transfer components as necessary.
