Ambient Air Temperature Sensor Replacement

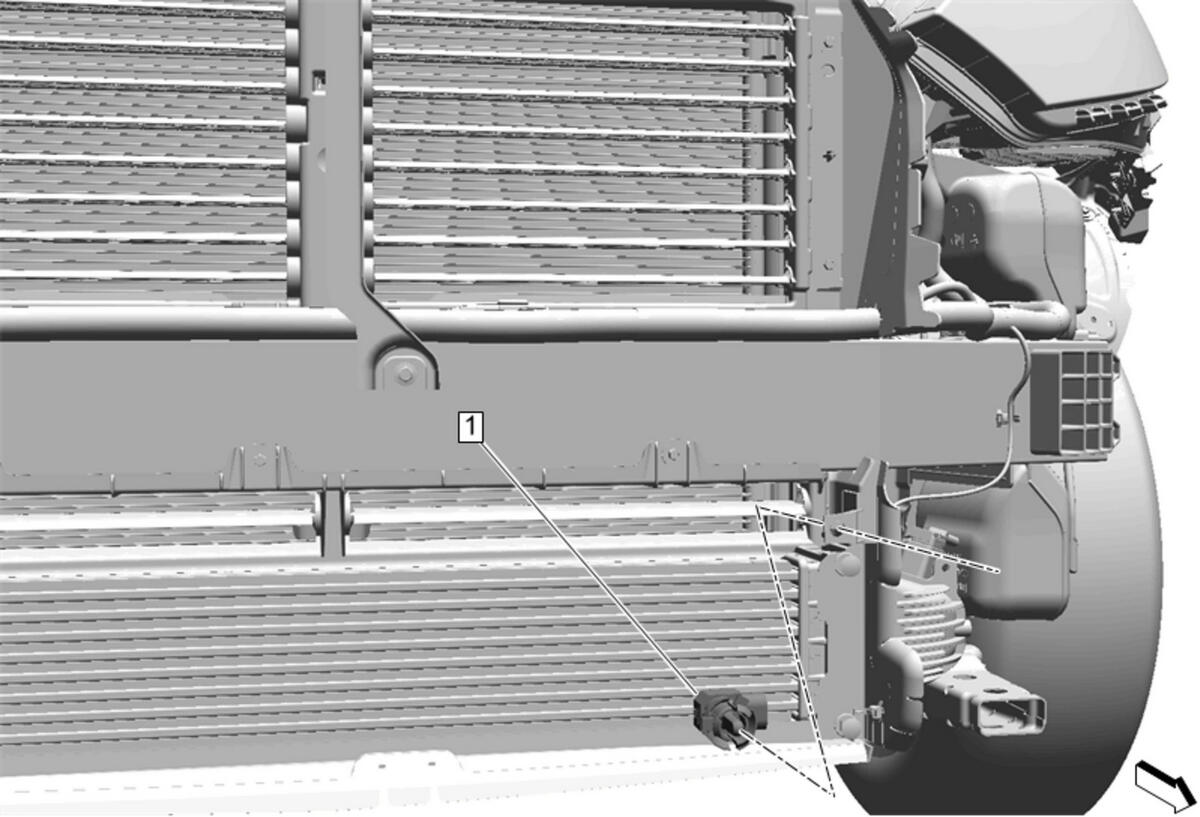

Fig 1: Ambient Air Temperature Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement (Equinox)Front Bumper Fascia Replacement (Terrain)
1	Ambient Air Temperature Sensor Procedure Squeeze the tabs on the ambient air temperature sensor, and push ambient air temperature sensor back out of the radiator lower air baffle. Disconnect the electrical connector.

Callout

Component Name

Ambient Air Temperature Sensor

Procedure

Squeeze the tabs on the ambient air temperature sensor, and push ambient air temperature sensor back out of the radiator lower air baffle.
Disconnect the electrical connector.
