Installation Procedure

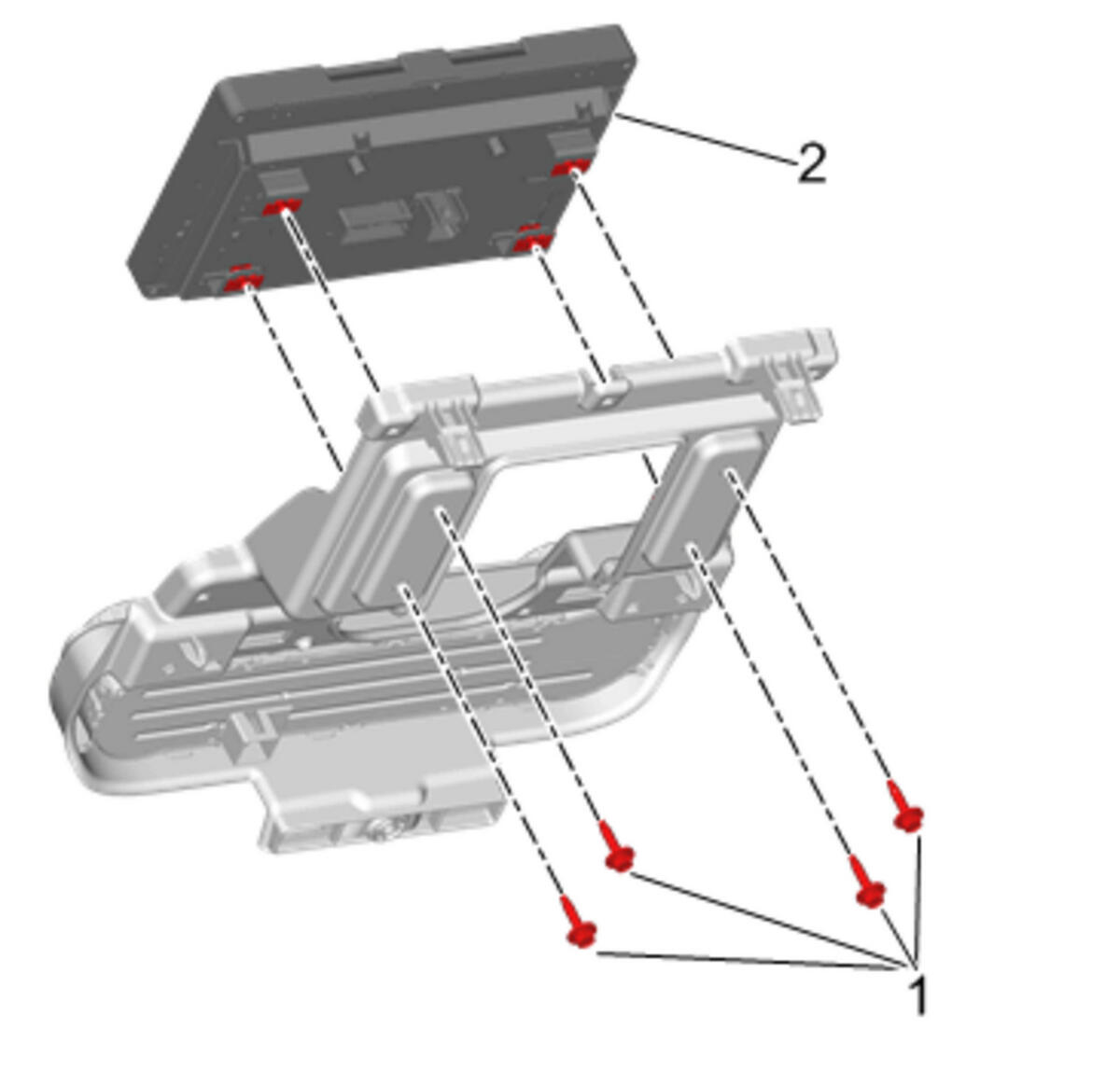

    Fig 1: Driver Information Display
    GM4702819Courtesy of GENERAL MOTORS COMPANY
  1. Install Driver Information Display (2)
    2. CAUTION:

    Fastener Caution

  2. Install Radio Control Bolt (1) and tighten [4x] 2.5 N.m (22 lb in)

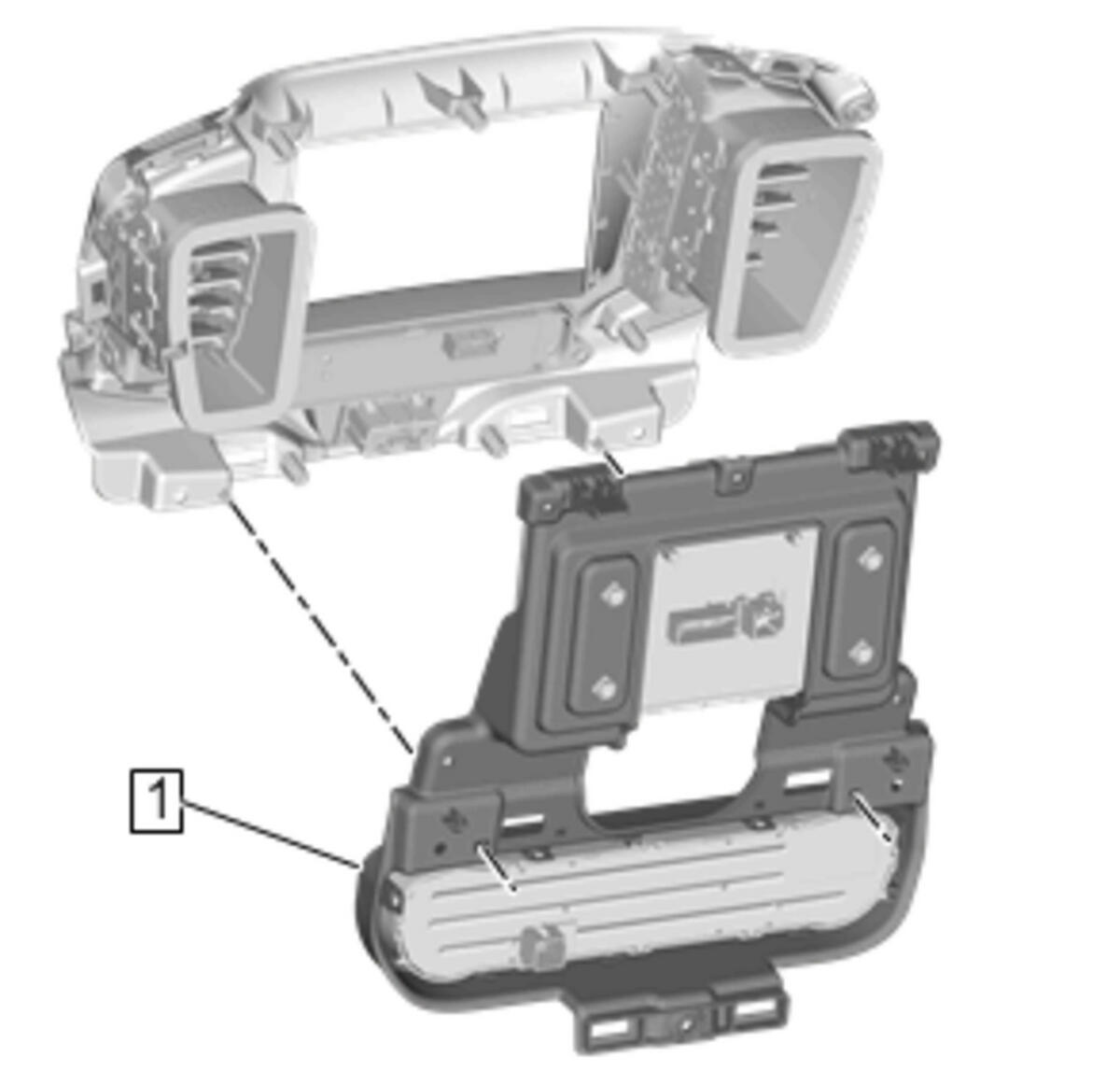

    3. Fig 2: Instrument Panel Radio Rear Trim Plate
    GM4697289Courtesy of GENERAL MOTORS COMPANY
  3. Install Instrument Panel Radio Rear Trim Plate (1)
    4. Fig 3: Radio Control Bolt
    GM4697280Courtesy of GENERAL MOTORS COMPANY
  4. Install Radio Control Bolt (1) and tighten [7x] 2.5 N.m (22 lb in)
    5. Fig 4: Instrument Panel Radio Front And Rear Trim Plate Assembly
    GM4697279Courtesy of GENERAL MOTORS COMPANY
  5. Connect the electrical connectors.
  6. Install Instrument Panel Radio Front And Rear Trim Plate Assembly (1)
    7. Fig 5: Radio Control Bolt
    GM4697274Courtesy of GENERAL MOTORS COMPANY
  7. Install Radio Control Bolt (1) and tighten [7x] 2.5 N.m (22 lb in)
    8. Fig 6: Instrument Panel Trim Pad - Right Side
    GM4693229Courtesy of GENERAL MOTORS COMPANY
  8. Install Instrument Panel Trim Pad - Right Side (2) - Instrument Panel Trim Pad Replacement - Right Side (Terrain)
    9. Fig 7: Instrument Panel Center Trim Plate Applique
    GM4692425Courtesy of GENERAL MOTORS COMPANY
  9. Install Instrument Panel Center Trim Plate Applique (1, 2)Instrument Panel Center Trim Plate Applique Replacement (Terrain)
