Installation Procedure

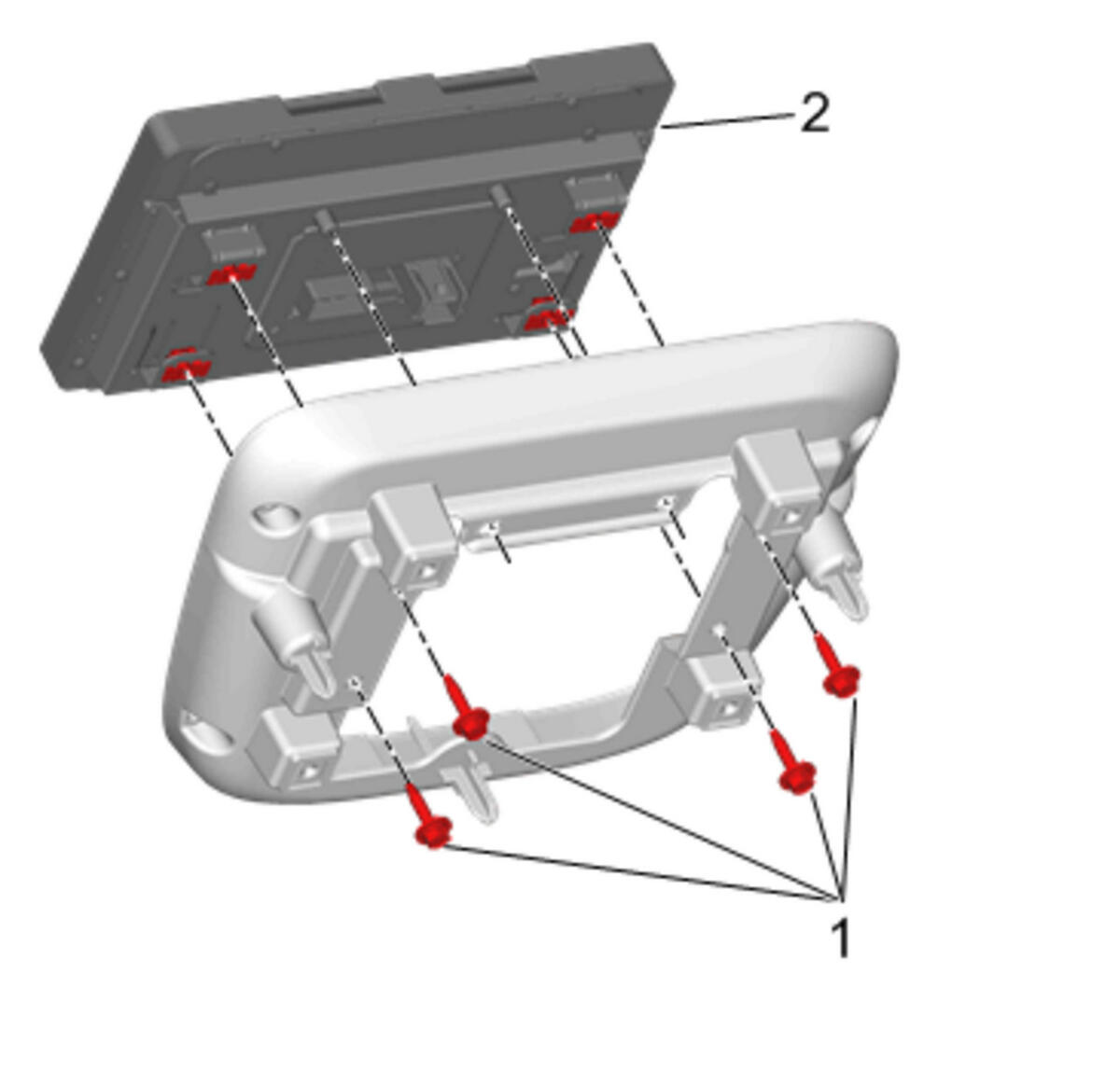

    Fig 1: Install Driver Information Display
    GM4568028Courtesy of GENERAL MOTORS COMPANY
  1. Install Driver Information Display (2)
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install Radio Control Bolt (1) and tighten [4x] 2.5 N.m (22 lb in)

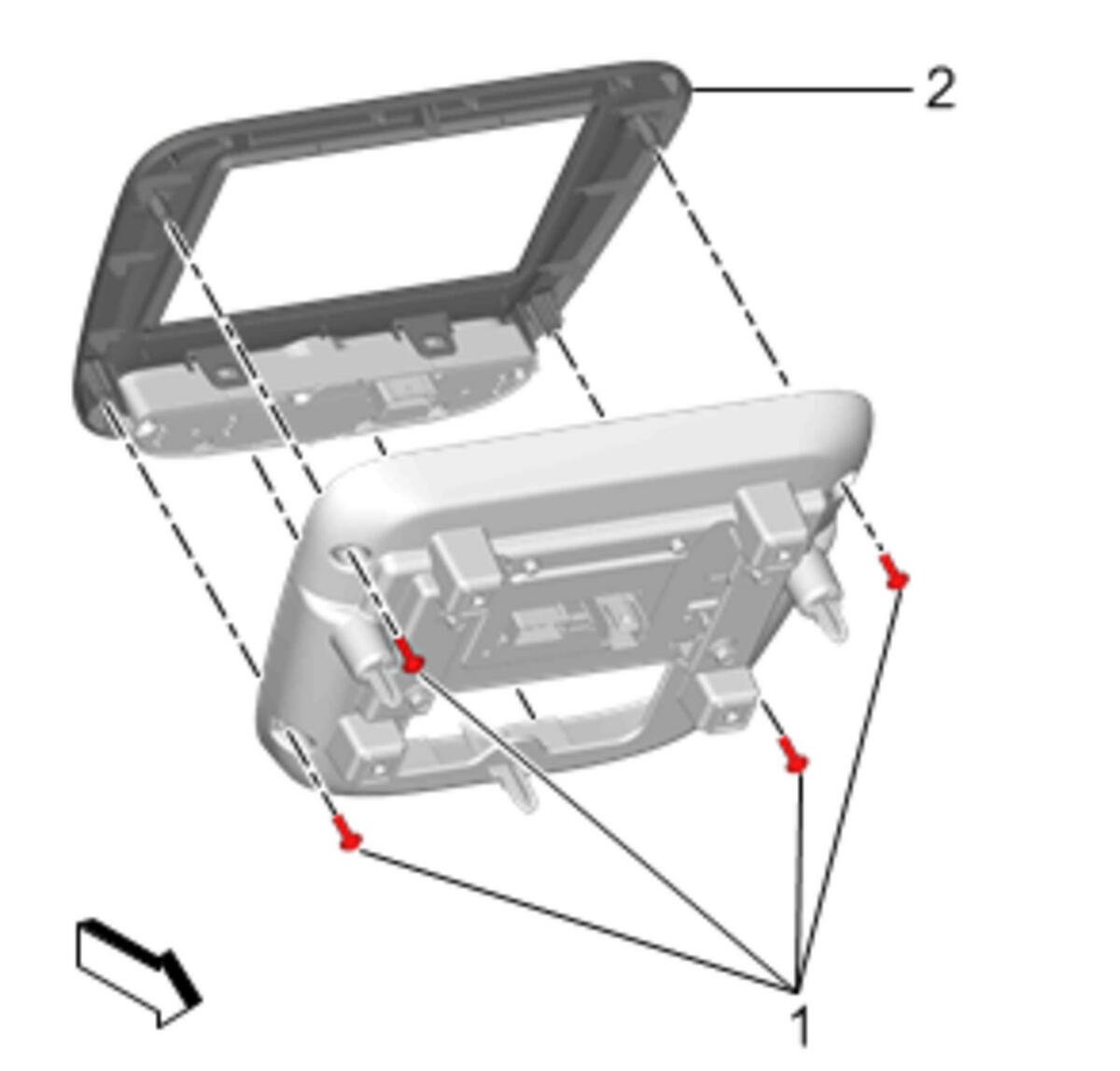

    3. Fig 2: Instrument Panel Radio Front Trim Plate And Panel Upper Compartment Bolt
    GM4565313Courtesy of GENERAL MOTORS COMPANY
  3. Install Instrument Panel Radio Front Trim Plate (2)
  4. Instrument Panel Upper Compartment Bolt (1) and tighten [4x] 1N.m (9 lb in)
    5. Fig 3: Radio Control Bracket And Bolt
    GM4565439Courtesy of GENERAL MOTORS COMPANY
  5. Install Radio Control Bracket (2)
  6. Install Radio Control Bracket Bolt (1) and tighten {4x] 2.5 N.m (22 lb in)
    7. Fig 4: Radio Control Assembly
    GM4565448Courtesy of GENERAL MOTORS COMPANY
  7. Connect the electrical connectors.
  8. Install Radio Control Assembly (1)
    9. Fig 5: Radio Control Bracket Bolt
    GM4565449Courtesy of GENERAL MOTORS COMPANY
  9. Install Radio Control Bracket Bolt (1) and tighten [2x] 2.5 N.m (22 lb in)
    10. Fig 6: Heater And Air Conditioning User Interface Control
    GM4588499Courtesy of GENERAL MOTORS COMPANY
  10. Install Heater and Air Conditioning User Interface Control (1)Heater and Air Conditioning User Interface Control Replacement (Equinox)
