Shift Controls and Indicator (without EPH)

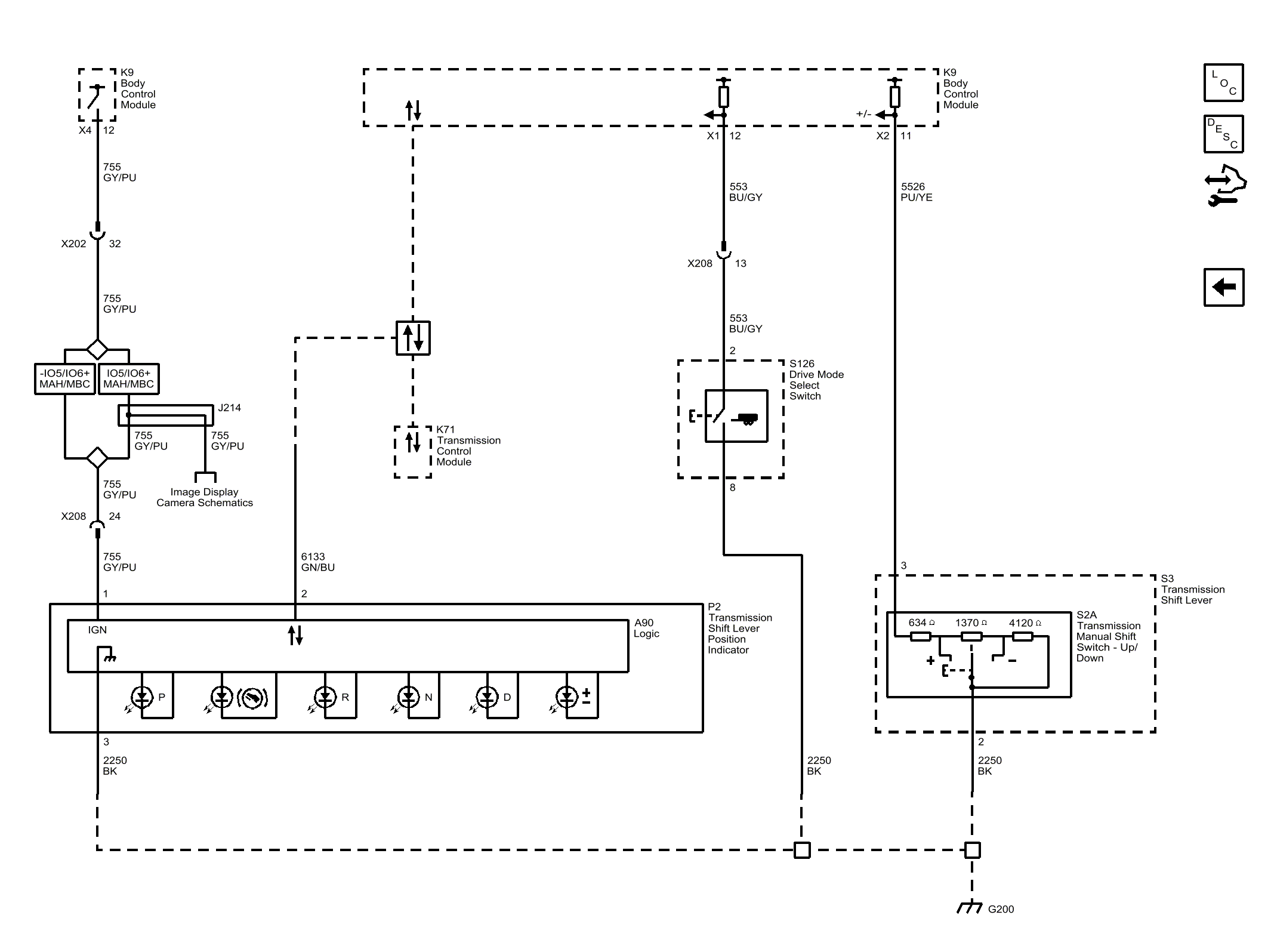

Fig 1: Shift Controls and Indicator (without EPH)

GM4865176

Courtesy of GENERAL MOTORS COMPANY
