Air Conditioning Cycling and Fan Control Refrigerant Pressure Sensor Replacement

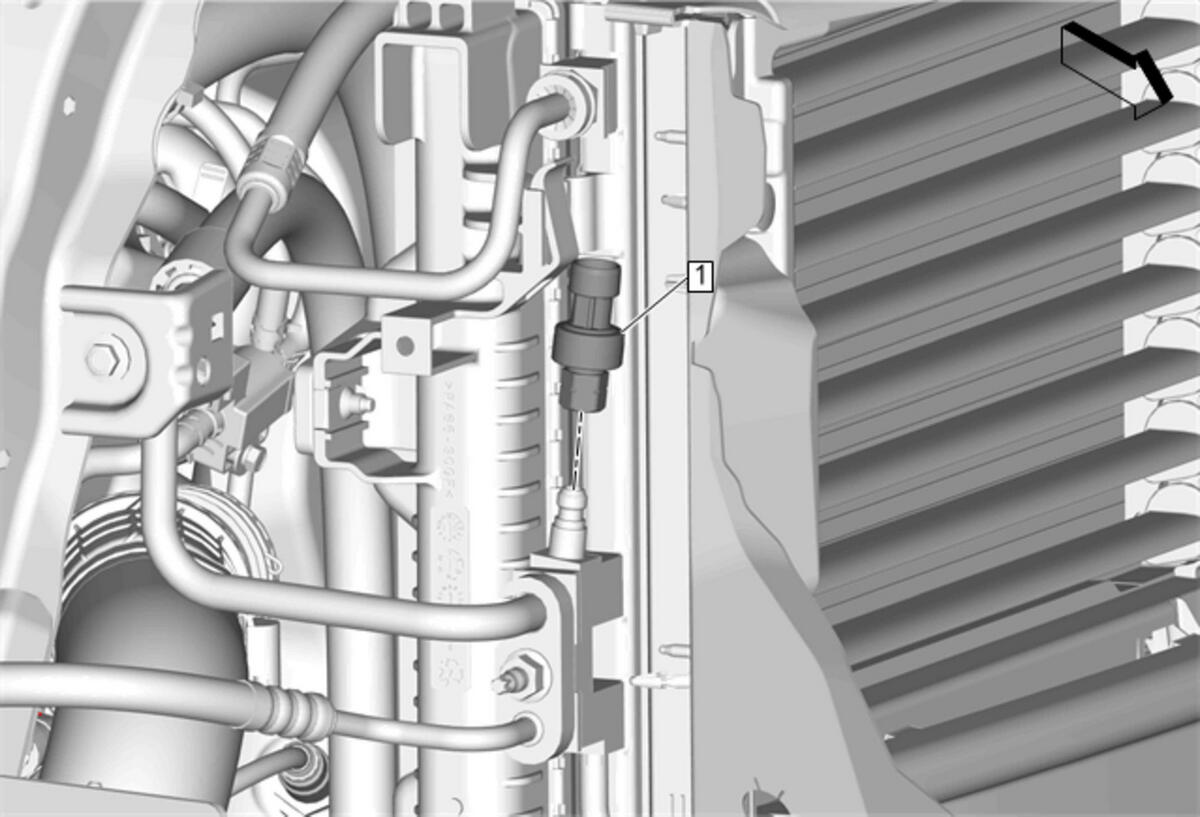

Fig 1: Air Conditioning Cycling and Fan Control Refrigerant Pressure Sensor
GM4597900Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Front Bumper Fascia Replacement (Equinox)Front Bumper Fascia Replacement (Terrain)
  2. Disconnect the electrical connector.
1 Air Conditioning Cycling and Fan Control Refrigerant Pressure Sensor
CAUTION:

Refer to Component Fastener Tightening Caution .


Tighten
7 N.m (62 lb in)
