Ignition Controls - Camshaft, Crankshaft, Knock Sensors, and Camshaft Position Actuators

WARNING: This page is about a different variant/trim than selected.

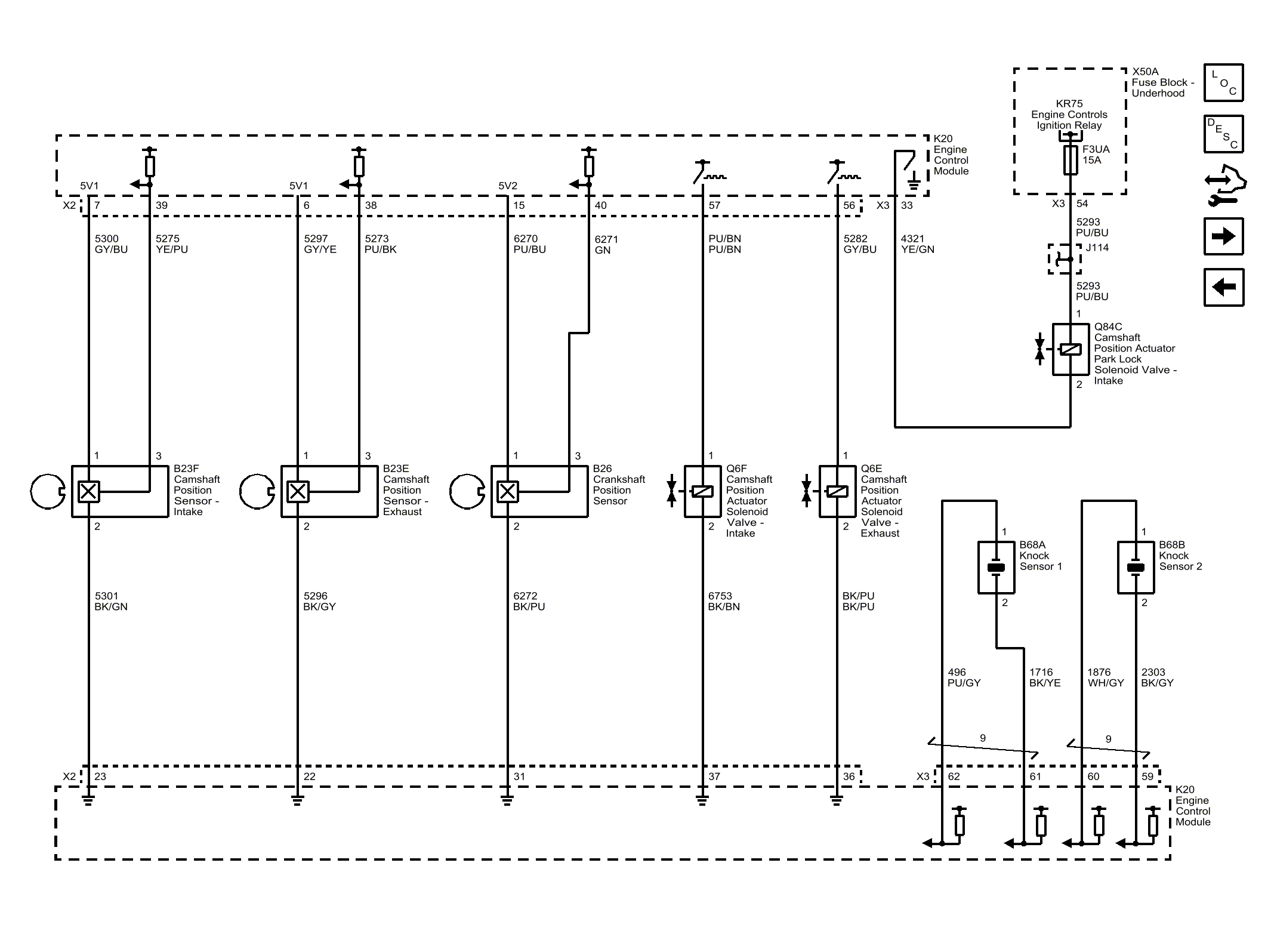

Fig 1: Ignition Controls - Camshaft, Crankshaft, Knock Sensors, and Camshaft Position Actuators
GM4597574Courtesy of GENERAL MOTORS COMPANY
