5V3, 5V4, 5V5, and Low Reference Bus (2 of 3)

WARNING: This page is about a different variant/trim than selected.

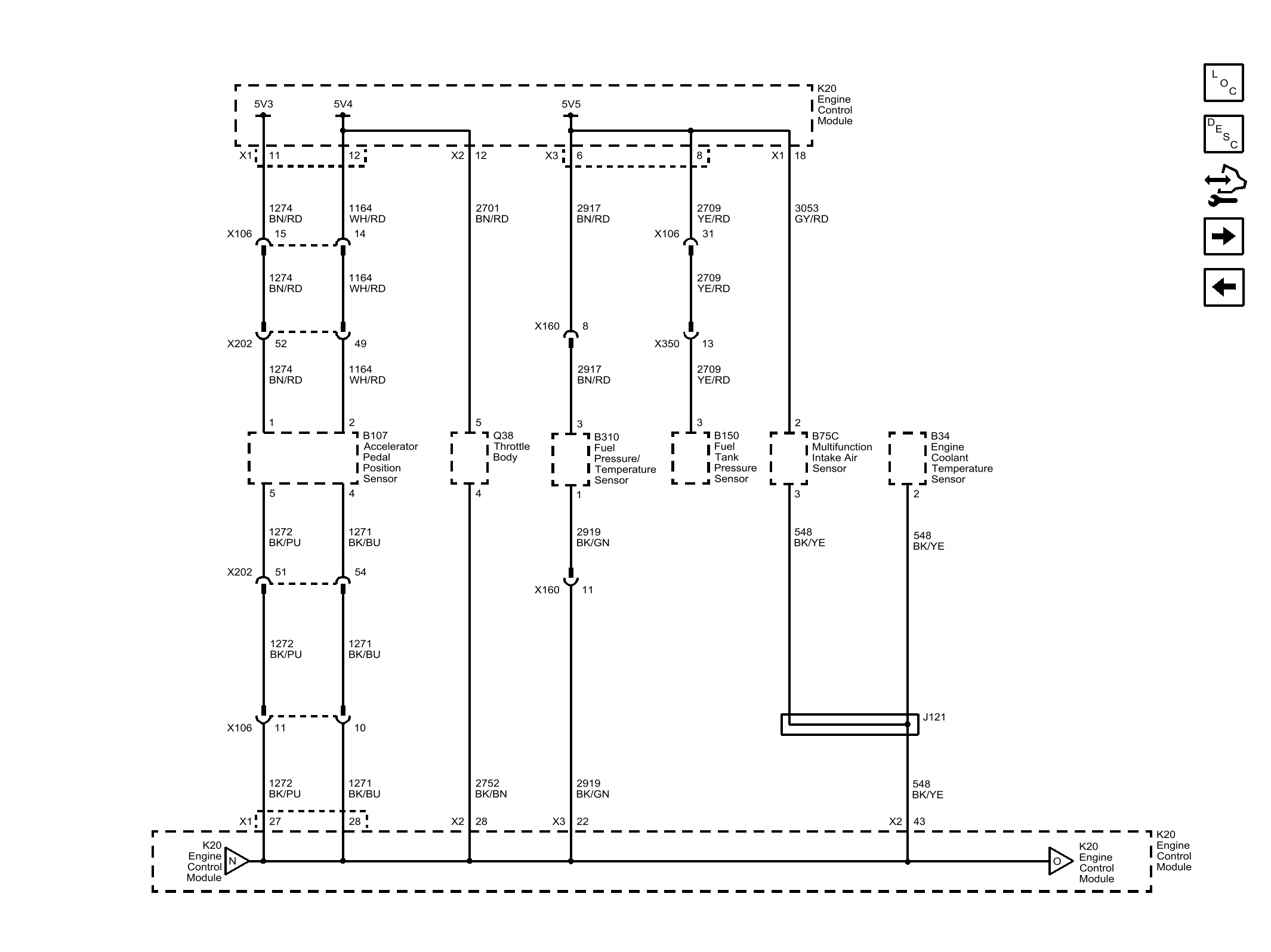

Fig 1: 5V3, 5V4, 5V5, and Low Reference Bus (2 of 3)
GM4597532Courtesy of GENERAL MOTORS COMPANY
