Section 8 (Engine Controls And Fuel - 1.5L (LYX) - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics 1.5L (LYX)
>>
5V1, 5V2, and Low Reference Bus (1 of 3)
5V1, 5V2, and Low Reference Bus (1 of 3)
WARNING:
This page is about a different variant/trim than selected.

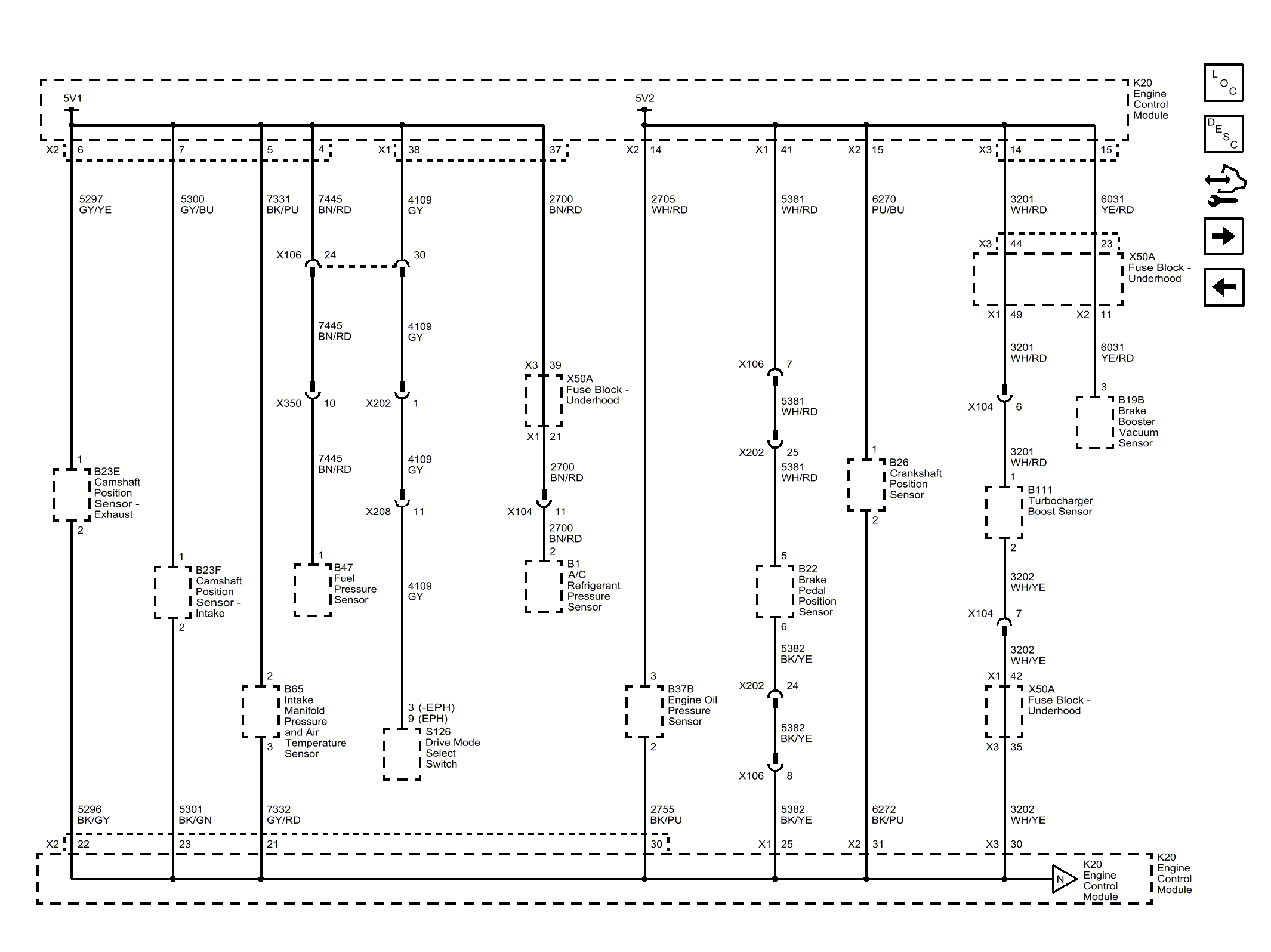

Fig 1: 5V1, 5V2, and Low Reference Bus (1 of 3)
Courtesy of GENERAL MOTORS COMPANY
