Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the crankshaft pulley. Refer to Crankshaft Pulley Replacement .

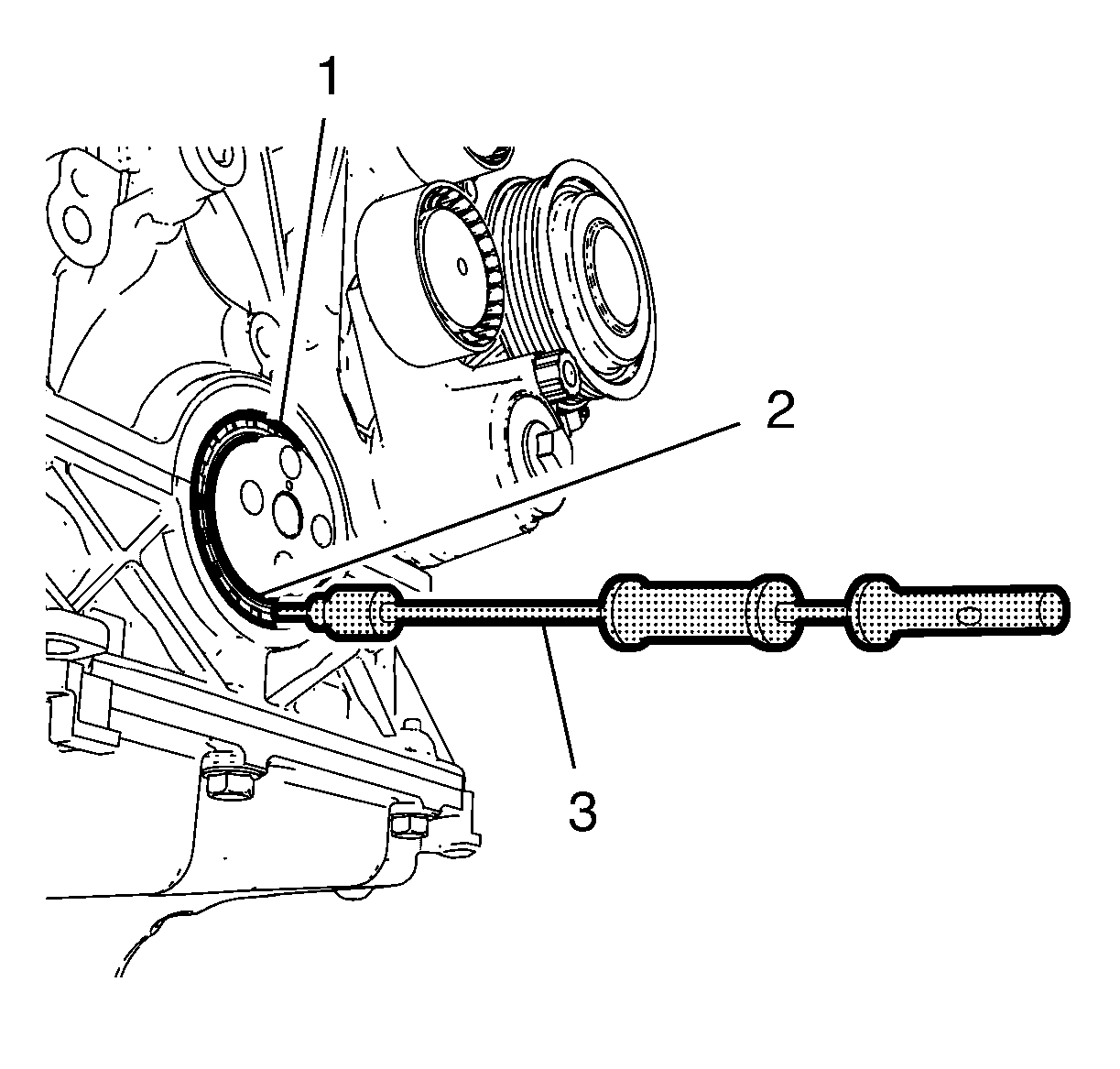

    2. Fig 1: Removers And Crankshaft Front Oil Seal
    GM3275427Courtesy of GENERAL MOTORS COMPANY
  2. Punch a bore into the crankshaft seal, use a suitable tool.
  3. Install the EN-6624  remover (2) into the oil sealing ring (1).
  4. Install the GE-328-B  remover (3) to EN-6624  remover (2).
  5. Remove the crankshaft front oil seal, with the GE-328-B  remover.
