Turbocharger Wastegate Actuator Pipe Installation

WARNING: This page is about a different variant/trim than selected.

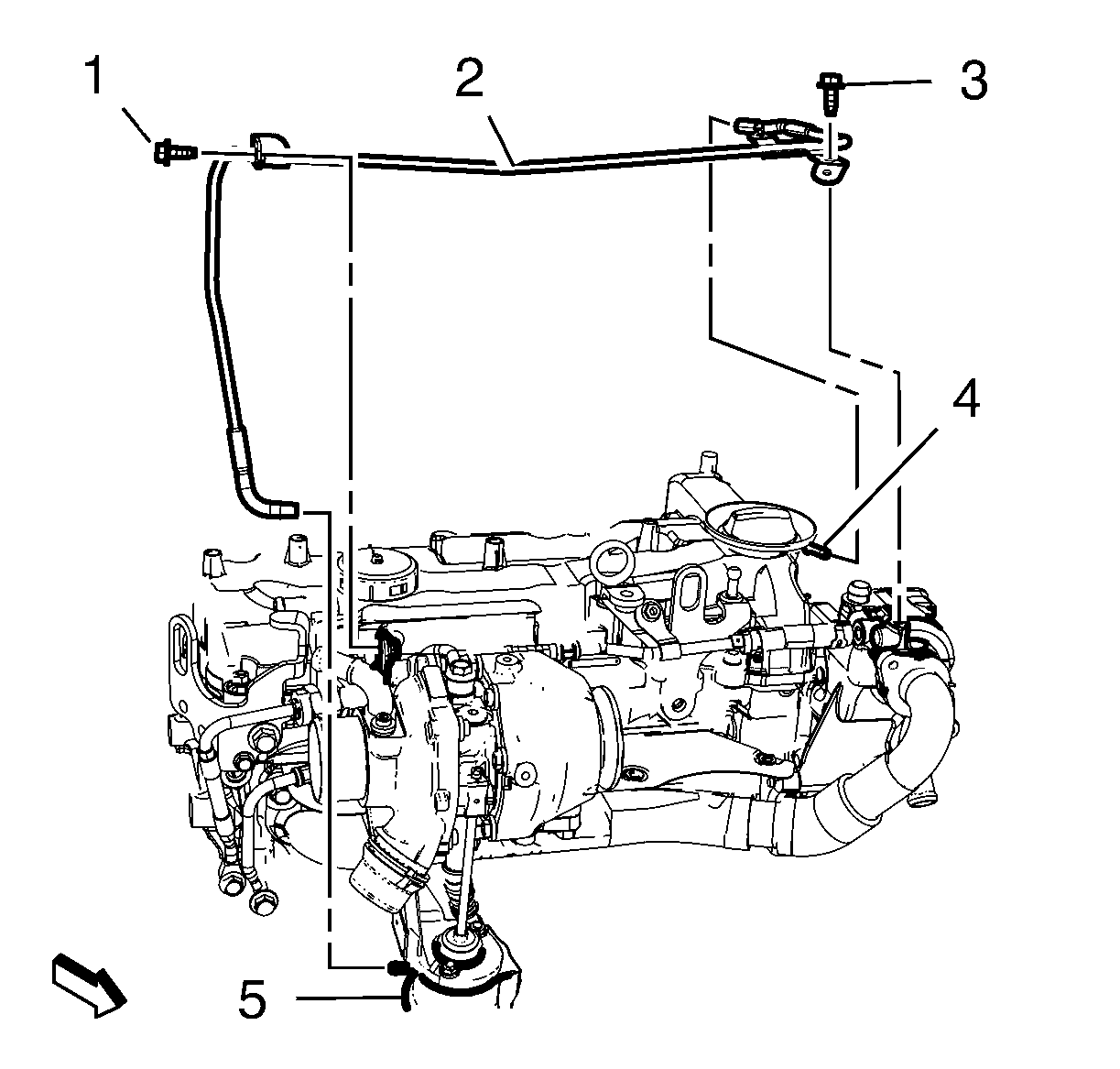

Fig 1: Turbocharger Wastegate Actuator Pipe And Components

GM2900097

Courtesy of GENERAL MOTORS COMPANY

Install the turbocharger wastegate actuator pipe (2).
Connect the turbocharger wastegate actuator pipe (2) to the power brake booster vacuum pipe (4).
Connect the turbocharger wastegate actuator pipe (2) to the turbocharger wastegate actuator (5).

CAUTION:

Refer to Fastener Caution .

Install the turbocharger wastegate actuator pipe bracket bolt (3) and tighten to 10 N.m (89 lb in).
Install the turbocharger wastegate actuator pipe bracket bolt (1) and tighten to 10 N.m (89 lb in).
