Turbocharger Oil Return Pipe Removal

WARNING: This page is about a different variant/trim than selected.

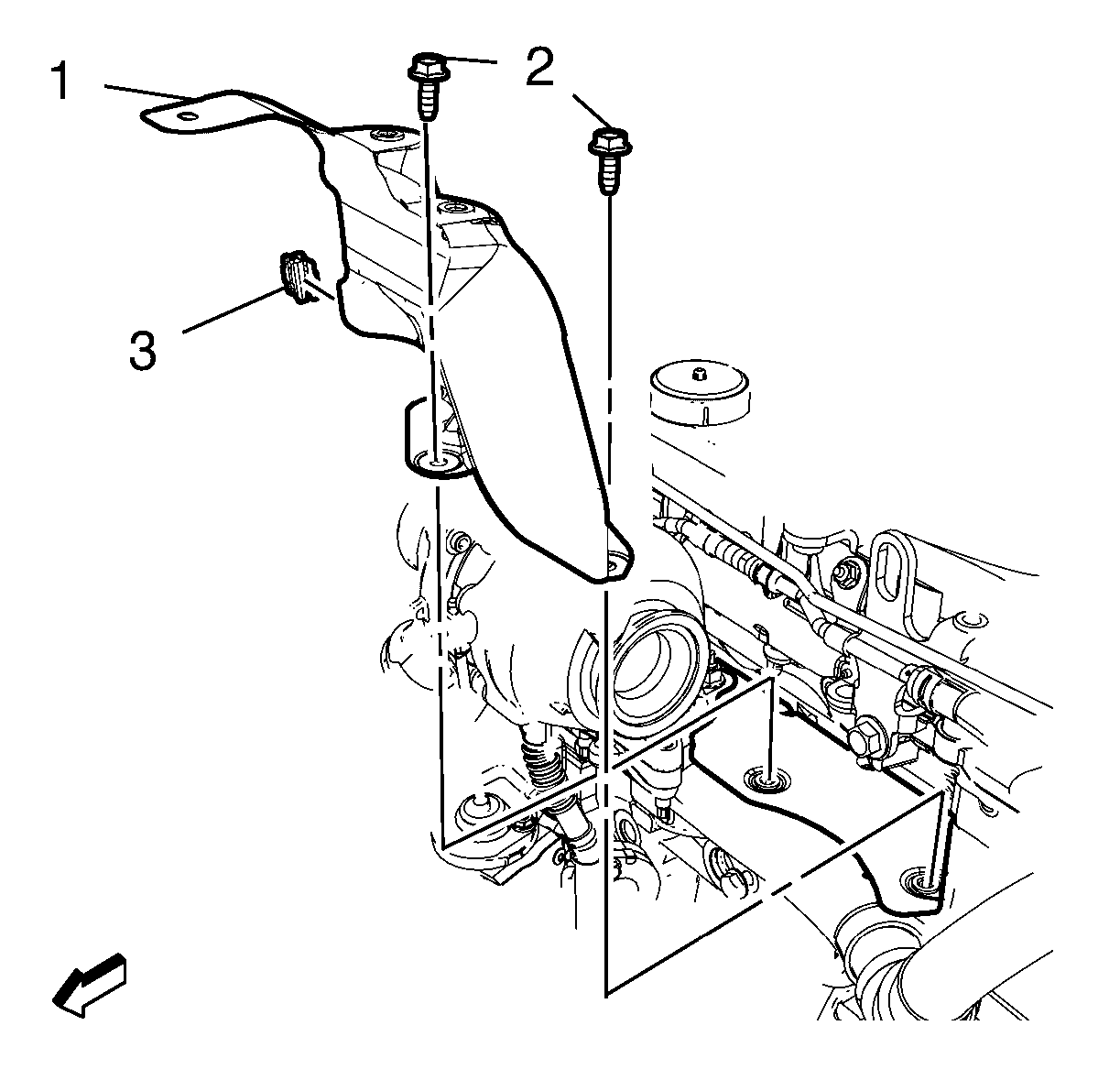

    Fig 1: Turbocharger Heat Shield, Bolts And Clip
    GM2900101Courtesy of GENERAL MOTORS COMPANY
  1. Remove the 2 turbocharger heat shield bolts (2).
  2. Unclip the turbocharger heat shield connection clip (3).
  3. Remove the turbocharger heat shield (1).

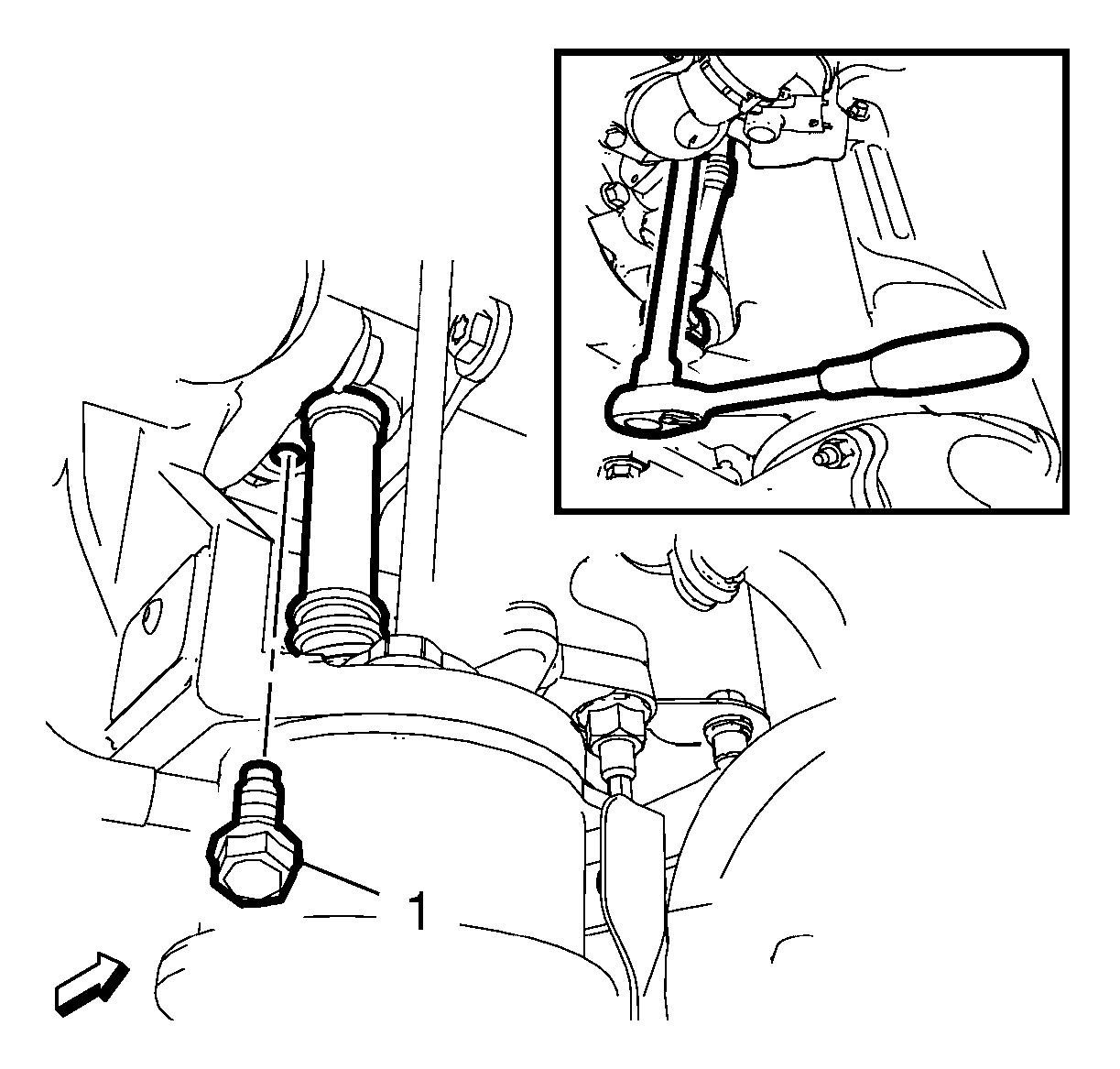

    4. Fig 2: Upper Turbocharger Oil Return Pipe Bolt
    GM3275487Courtesy of GENERAL MOTORS COMPANY
  4. Remove the upper turbocharger oil return pipe bolt (1)

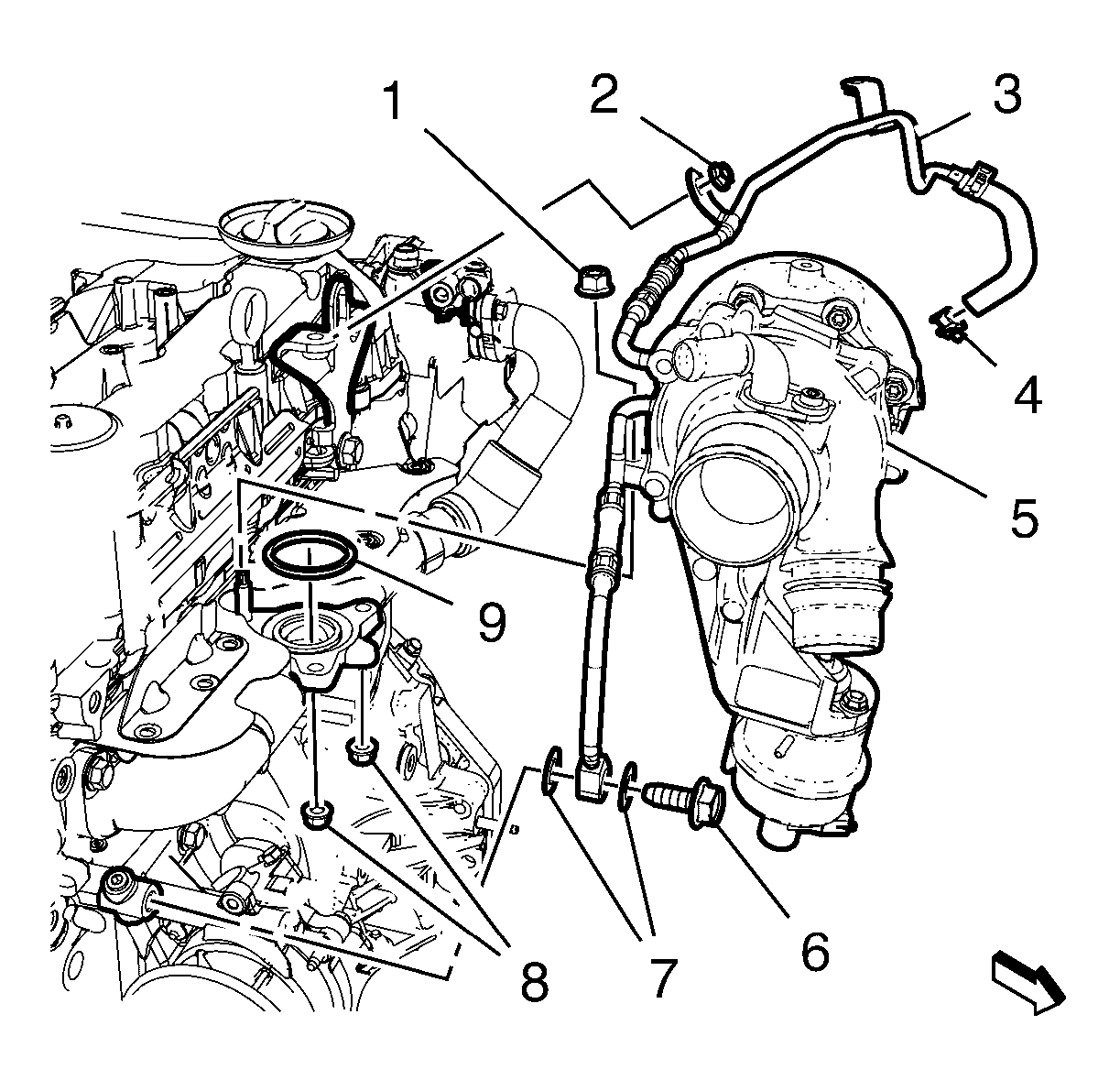

    5. Fig 3: Turbocharger And Components
    GM3221547Courtesy of GENERAL MOTORS COMPANY
  5. Remove the clamp (4) from thermostat bypass pipe.
  6. Remove the turbocharger coolant feed pipe bracket nut (2).
  7. Remove the turbocharger coolant feed pipe hollow bolt (6).
  8. Remove and DISCARD the 2 turbocharger coolant feed pipe gaskets (7).
  9. Remove the 3 turbocharger nuts (1, 8).
  10. Pull the turbocharger (5) slightly upwards and remove the turbocharger coolant feed pipe (3) from the thermostat bypass pipe.
  11. Remove the turbocharger (5) from the exhaust manifold.
  12. Remove and DISCARD the turbocharger gasket (9).

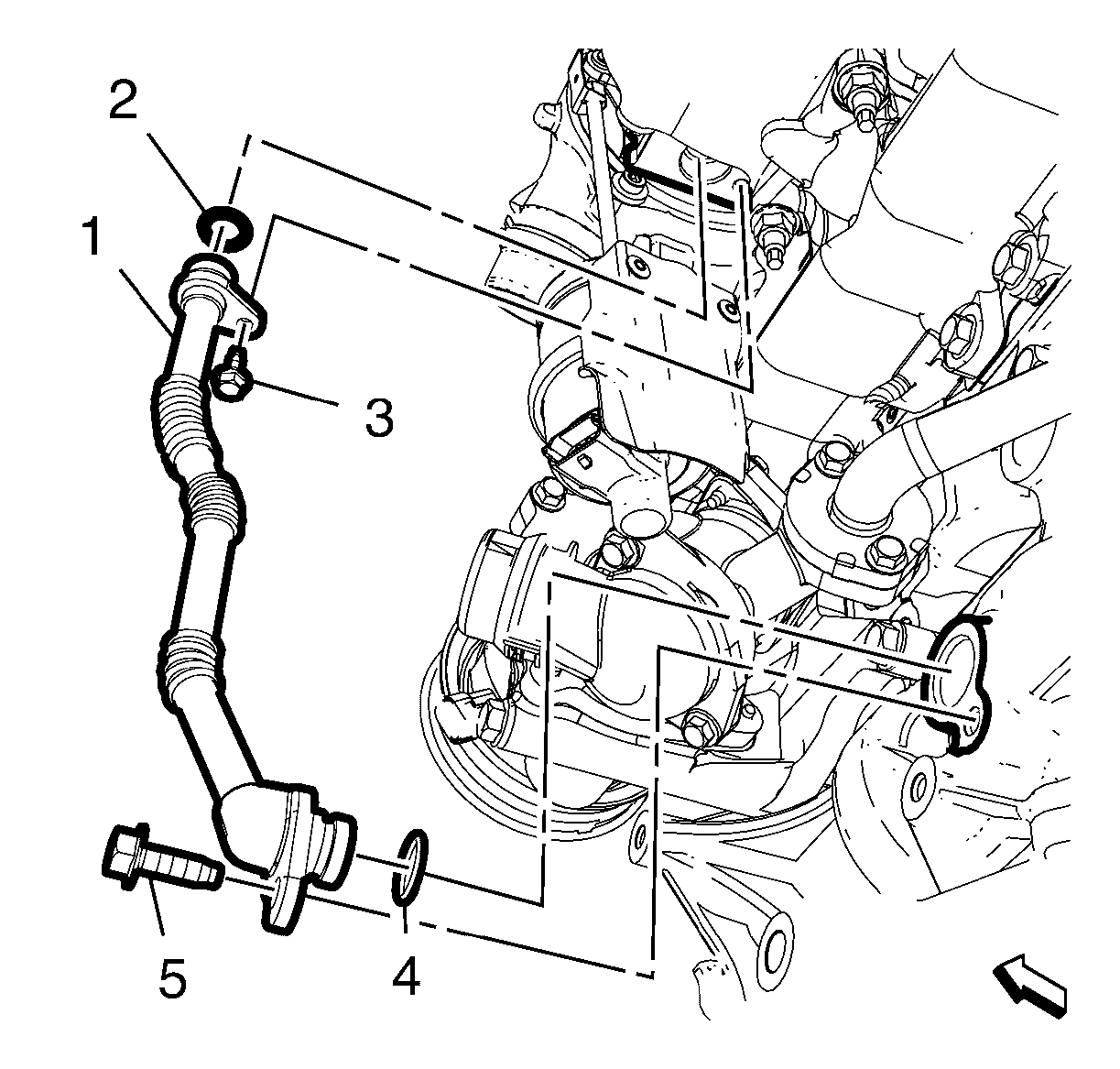

    13. Fig 4: Turbocharger Oil Return Pipe, Bolts And Gaskets
    GM2900099Courtesy of GENERAL MOTORS COMPANY
  13. Remove the turbocharger oil return pipe bolt (5).
  14. Remove the lower turbocharger oil return pipe joint out of the engine block.
  15. Remove the turbocharger oil return pipe (1).
  16. Remove and DISCARD the turbocharger oil return pipe seals (2, 4).
