Cylinder Head Measurement

WARNING: This page is about a different variant/trim than selected.

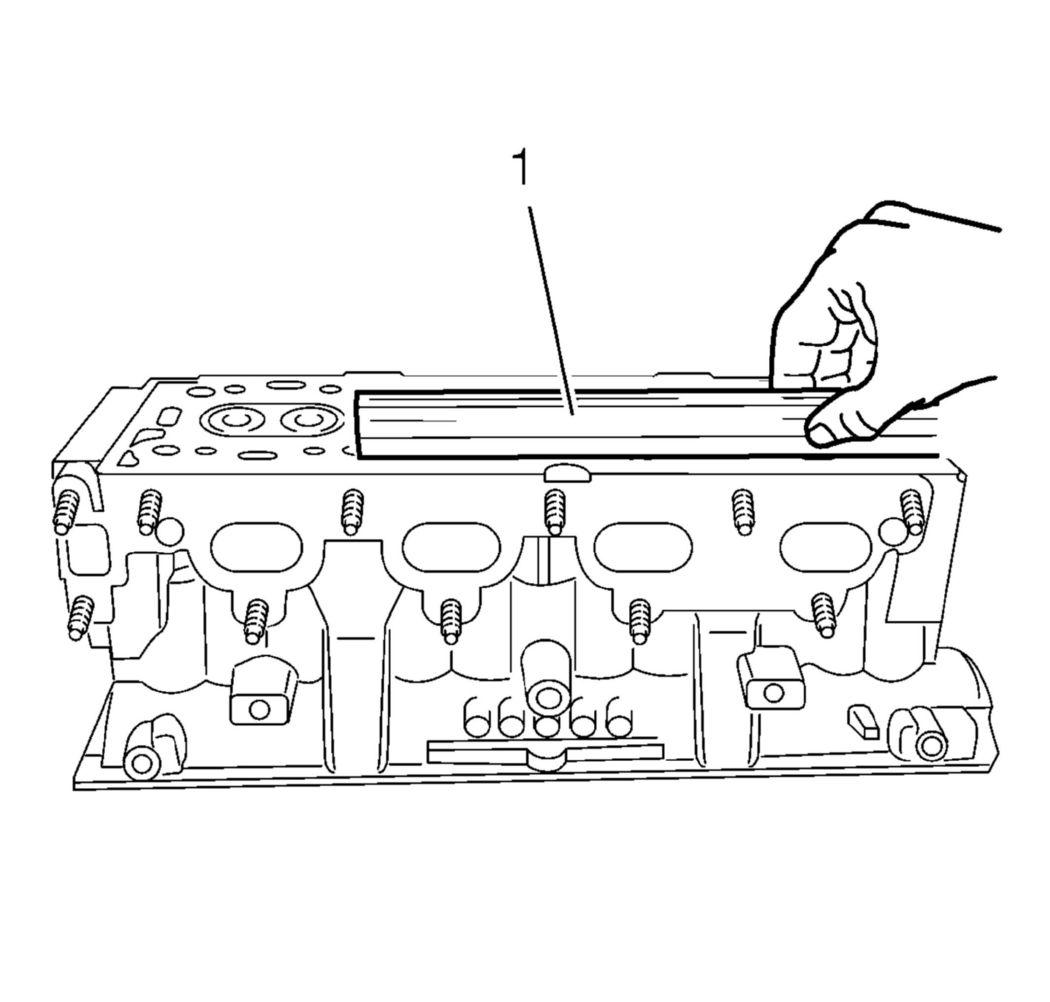

    Fig 1: Using Straightedge To Inspect Cylinder Head Sealing Surface For Flatness
    GM2189666Courtesy of GENERAL MOTORS COMPANY
  1. Inspect the cylinder head sealing surface for flatness. Use a straightedge (1).
  2. Turn the cylinder head upside down.

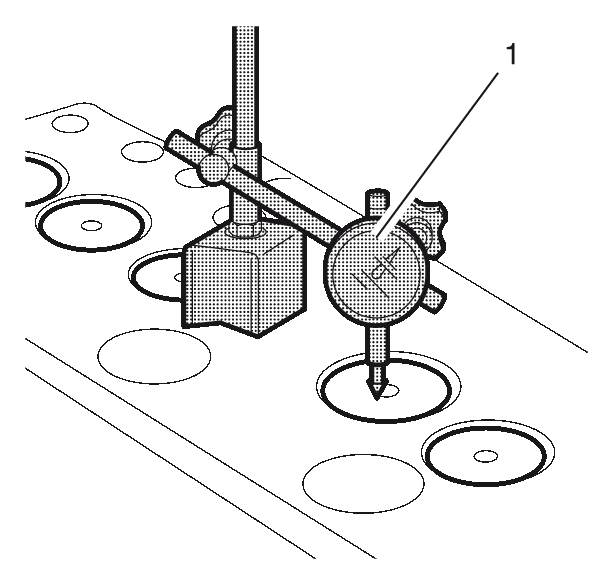

    3. Fig 2: Using Dial Indicator To Measure Valve Assembly Height
    GM4623262Courtesy of GENERAL MOTORS COMPANY
  3. Loosely install one valve to the cylinder head.
  4. Place the GE-7872  indicator (1) to the cylinder head sealing surface and measure the valve assembly height. Refer to Engine Mechanical Specifications  to find the permitted values.
