Camshaft Housing Disassemble

WARNING: This page is about a different variant/trim than selected.

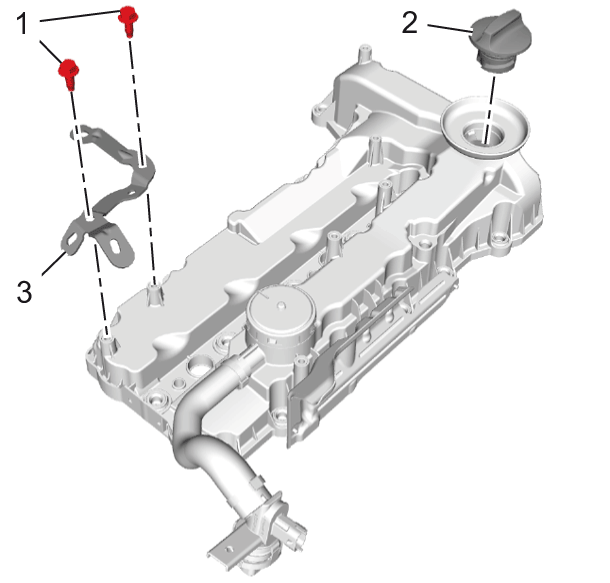

    Fig 1: Wiring Harness Bracket, Bolts And Oil Filler Cap
    GM4538029Courtesy of GENERAL MOTORS COMPANY
  1. Remove Wiring Harness Bracket Bolts (1) (Qty: 2)
  2. Remove Wiring Harness Bracket (3)
  3. Remove Oil Filler Cap (2)
