Speed and Temperature Sensors, Valve Position, Pressure and Shift Controls

WARNING: This page is about a different variant/trim than selected.

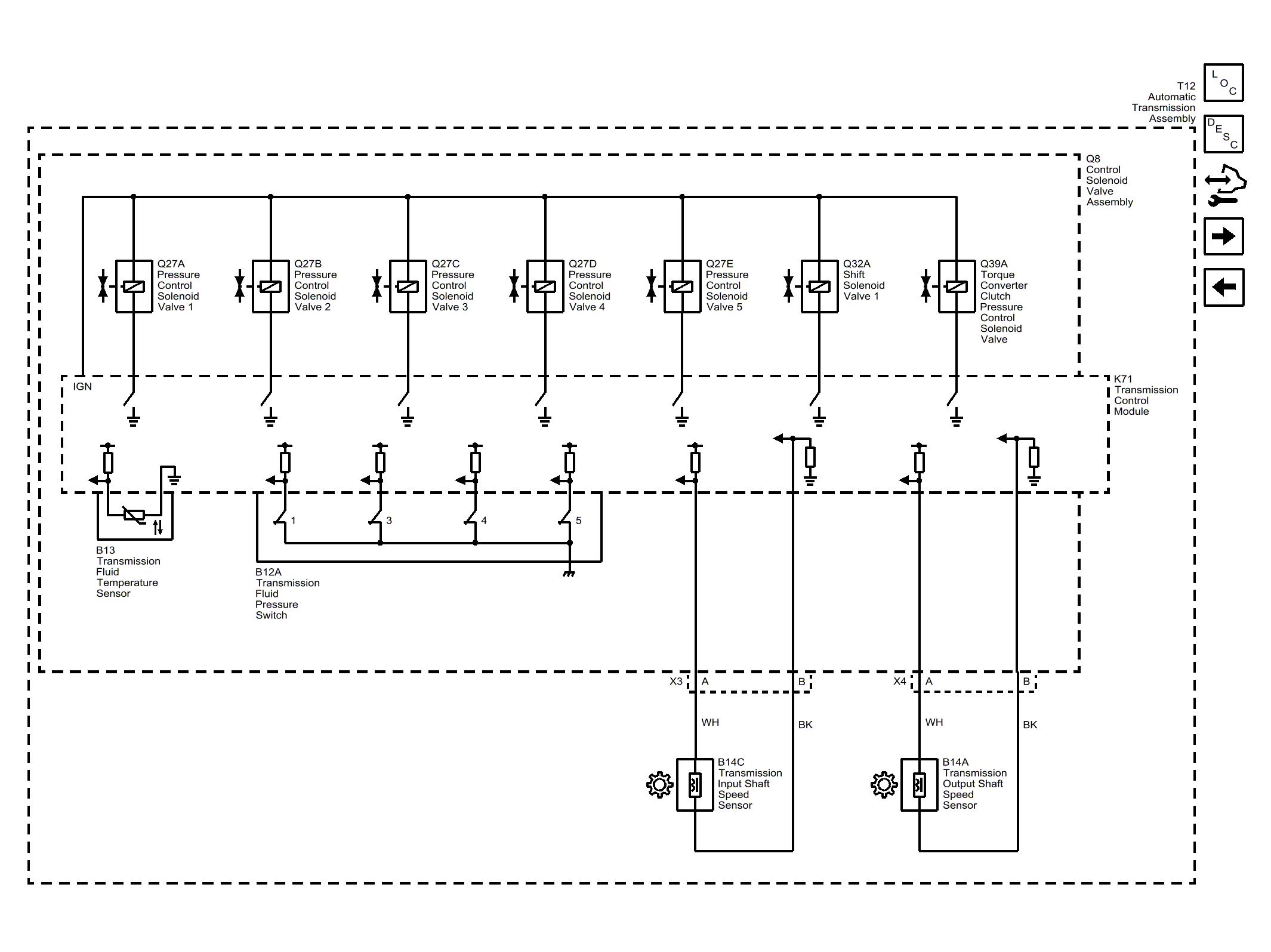

Fig 1: Speed and Temperature Sensors, Valve Position, Pressure and Shift Controls
GM4598433Courtesy of GENERAL MOTORS COMPANY
