Section 25 (Automatic Transmission - 6T40 (MNH MNK) Or 6T45 (MHG) - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Automatic Transmission Controls Wiring Schematics (6T40 (MNH MNK) Or 6T45 (MHG))
>>
Internal Mode Switch
Internal Mode Switch
WARNING:
This page is about a different variant/trim than selected.

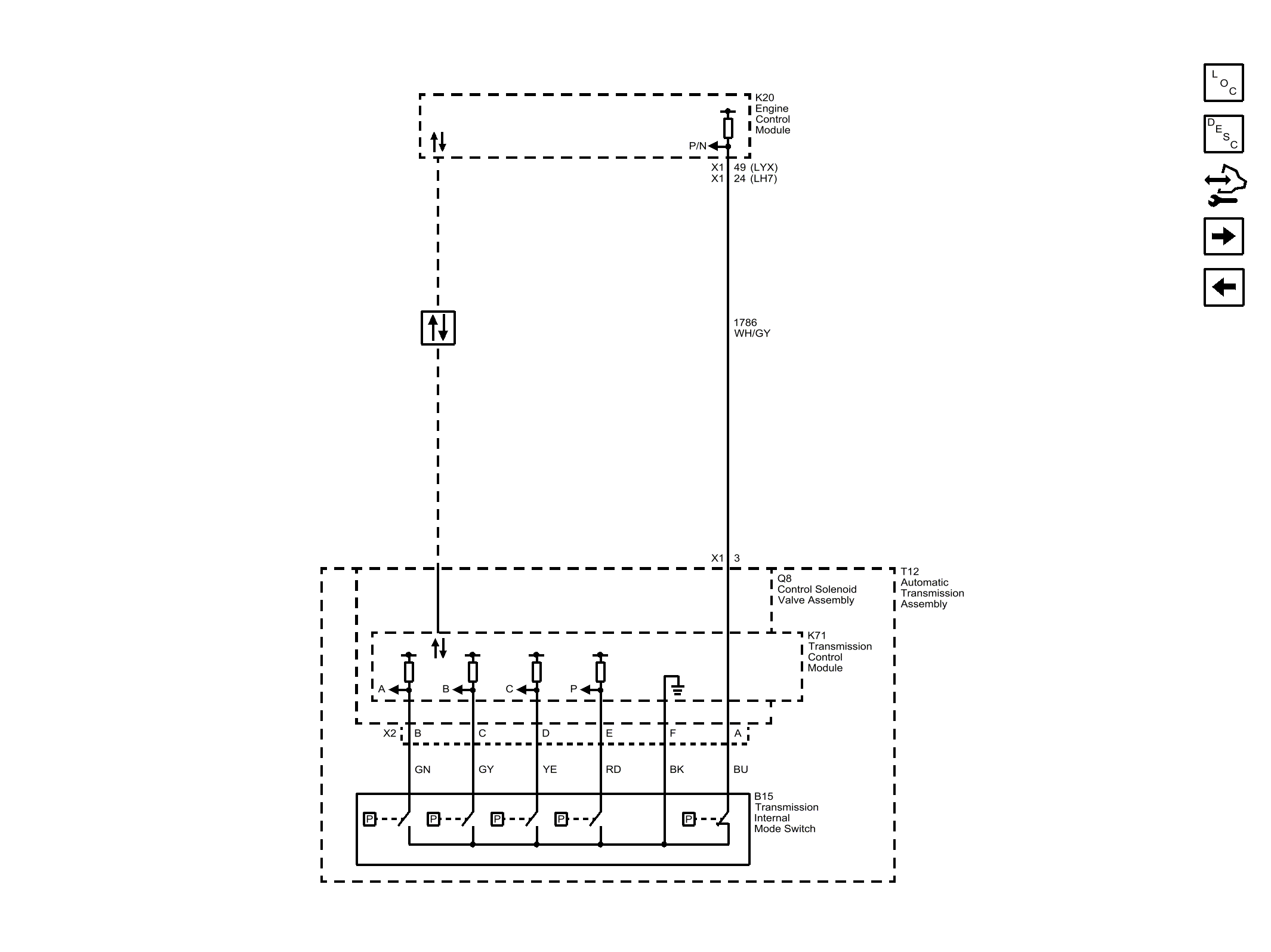

Fig 1: Internal Mode Switch
Courtesy of GENERAL MOTORS COMPANY
