Oil Pressure Control (LYX)
Oil Pressure Control (LYX)
WARNING:
This page is about a different variant/trim than selected.

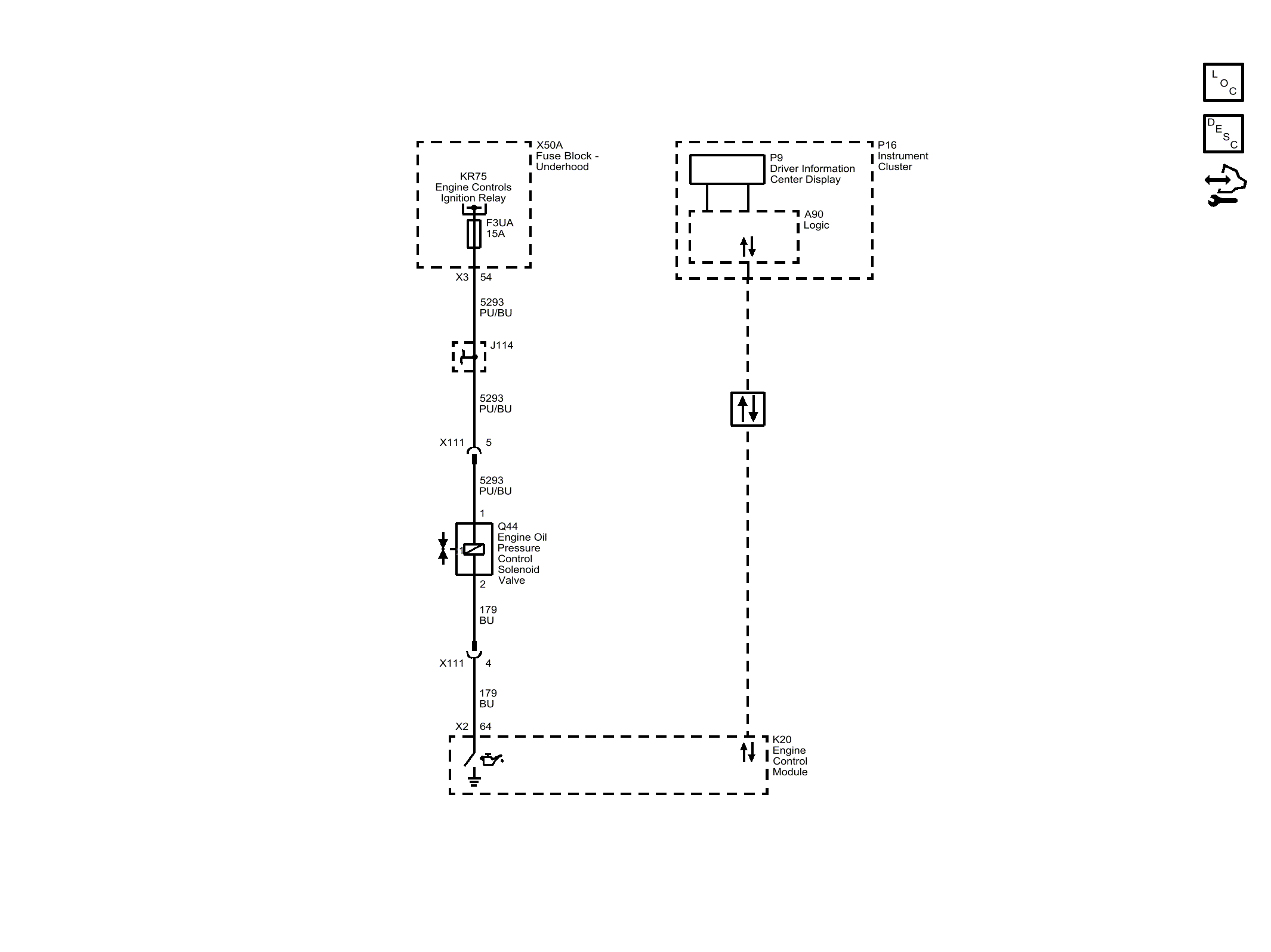

Fig 1: Oil Pressure Control (LYX)
Courtesy of GENERAL MOTORS COMPANY
