Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove Fuel Pump -Fuel Pump Replacement

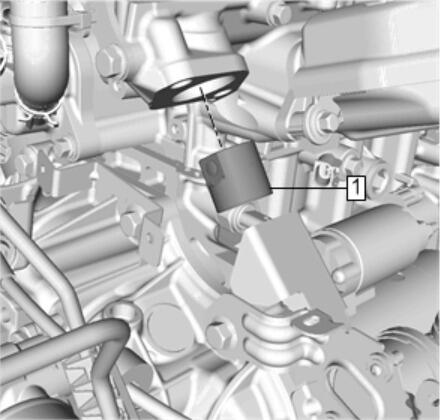

    2. Fig 1: Valve Lifter Follower
    GM4093846Courtesy of GENERAL MOTORS COMPANY
  2. Remove the valve lifter follower (1) from the cylinder head bore.
