Removal Procedure

WARNING: This page is about a different variant/trim than selected.

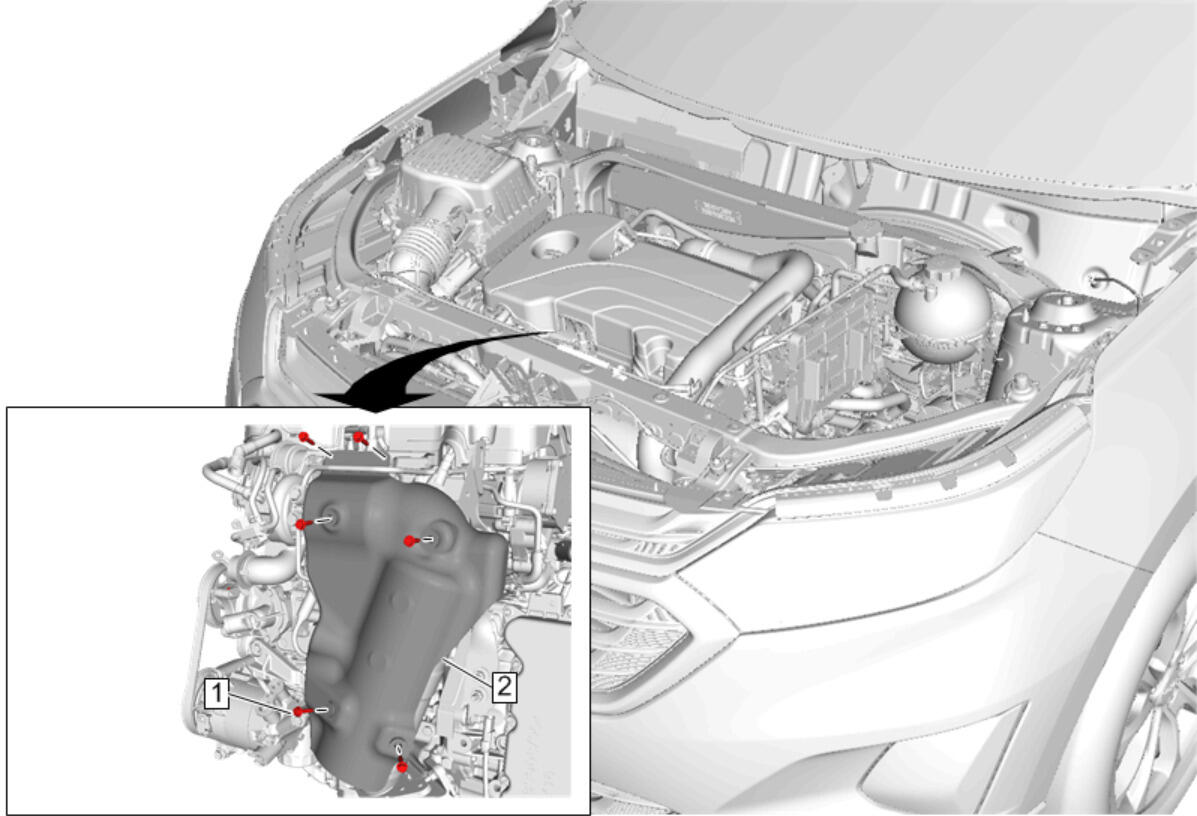

    Fig 1: Turbocharger Heat Shield And Fastener
    GM4640970Courtesy of GENERAL MOTORS COMPANY
  1. Remove Turbocharger Heat Shield Fastener (1)
  2. Remove Turbocharger Heat Shield (2)
