Installation Procedure

WARNING: This page is about a different variant/trim than selected.

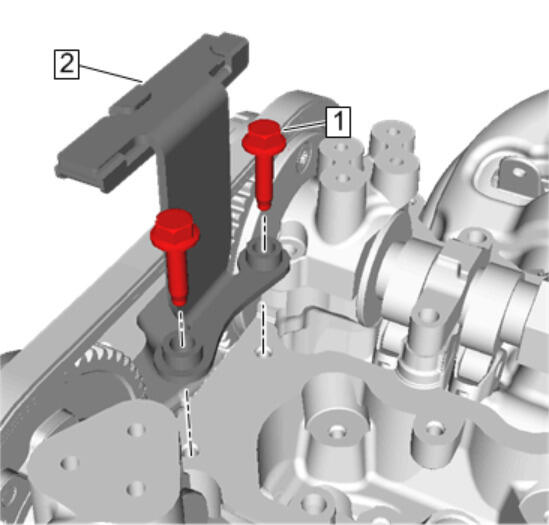

    Fig 1: Timing Chain Upper Guide And Bolt
    GM4587674Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install Timing Chain Upper Guide (2)
  2. Install Timing Chain Upper Guide Bolt (1) and tighten 10 N.m (89 lb in)
  3. Install Camshaft Cover - Camshaft Cover Replacement
