Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Timing Chain Guide And Fasteners
    GM3977673Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install Timing Chain Guide (2)
  2. Install Timing Chain Guide Fastener (1) and tighten 10 N.m (89 lb in)
    3. Fig 2: Pushing Back Piston
    GM3936517Courtesy of GENERAL MOTORS COMPANY
  3. Release the tensioner plunger (1). Timing Chain Tensioner Replacement

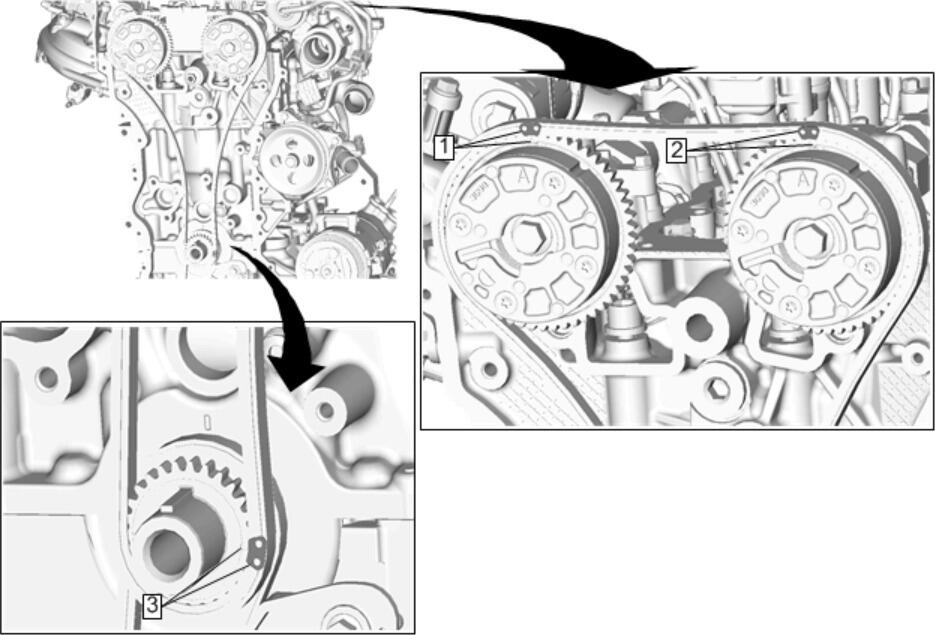

    4. Fig 3: Timing Chain Marks
    GM3977683Courtesy of GENERAL MOTORS COMPANY
  4. Inspect the timing chain marks (1, 2, and 3) to confirm they remained aligned after engaging the timing chain tensioner.
    5. Fig 4: Camshaft Holder
    GM4091100Courtesy of GENERAL MOTORS COMPANY
  5. Remove camshaft holding tool EN-51367  (1).
  6. Using a suitable tool, rotate the crankshaft one complete engine cycle then verify the timing chain marks are aligned properly.
  7. Install Engine Front Cover Replacement
