Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Reposition both floor jacks and blocks of wood in order to allow a 1/8 inch gap between the mount and bracket.
  2. Shake the powertrain vigorously by hand from front to rear and allow the powertrain to settle.

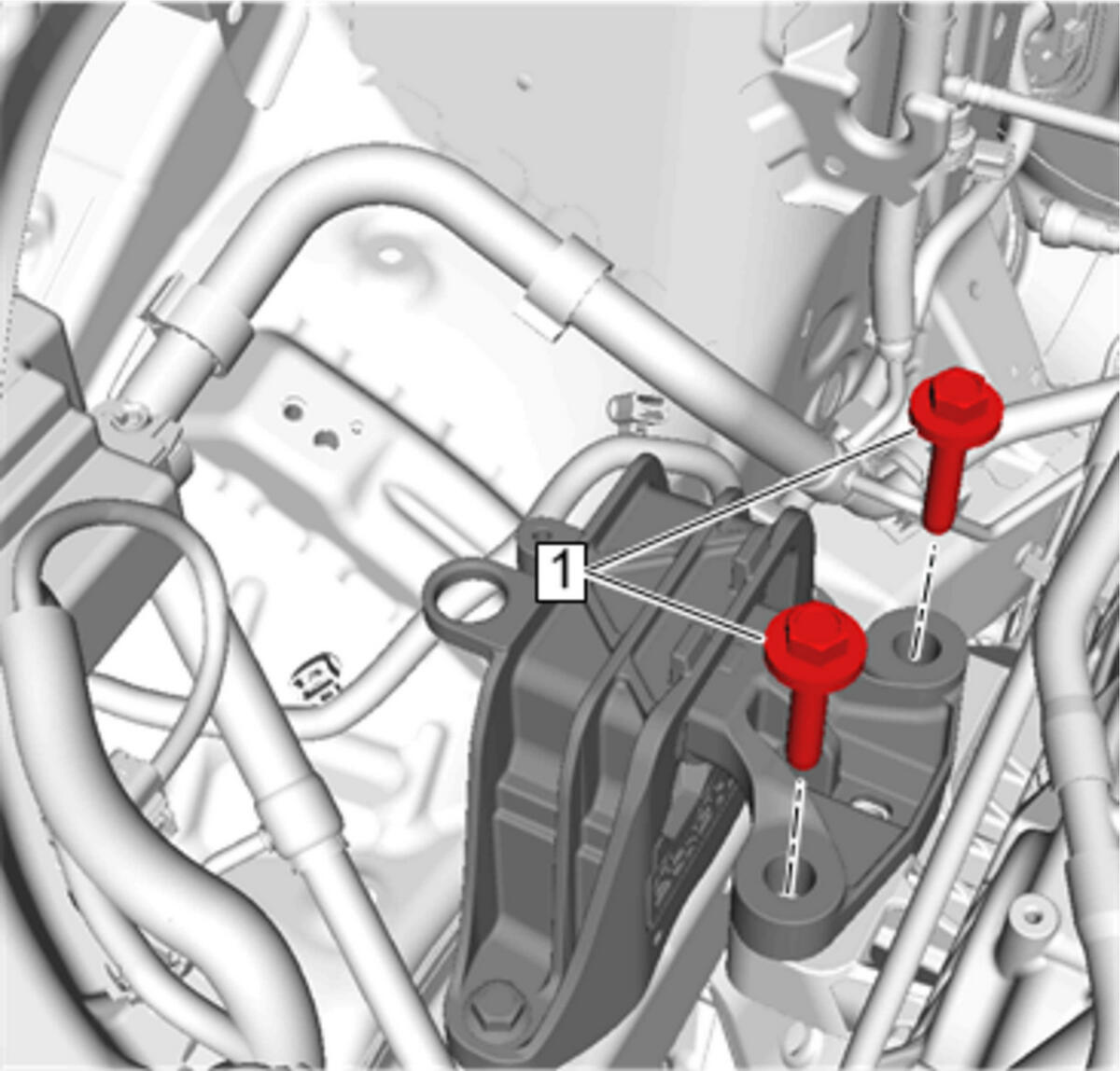

    3. Fig 1: Engine Mount Bracket Bolts
    GM4597434Courtesy of GENERAL MOTORS COMPANY
  3. Tighten the engine mount to engine mount bracket bolts (1). Engine Mount Replacement
    4. Fig 2: Transmission Mount Bolts And Fastener
    GM4572700Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Bolts (1) should remain tightened during the balancing procedure.

  4. Tighten bolts (2) at the left transmission mount (3). Transmission Mount Replacement - Left Side
  5. Raise the vehicle. Lifting and Jacking the Vehicle
    6. Fig 3: Transmission Mount Strut Bolt
    GM4572779Courtesy of GENERAL MOTORS COMPANY
  6. Tighten the transmission mount strut bolt (2) at the transmission mount strut (3). Transmission Mount Strut Replacement (All Wheel Drive)Transmission Mount Strut Replacement (Front Wheel Drive)
  7. Remove the jack stands and wood blocks supporting the engine and transaxle from underneath the powertrain.
  8. Lower the vehicle. Lifting and Jacking the Vehicle
