Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove Engine Front Cover Replacement

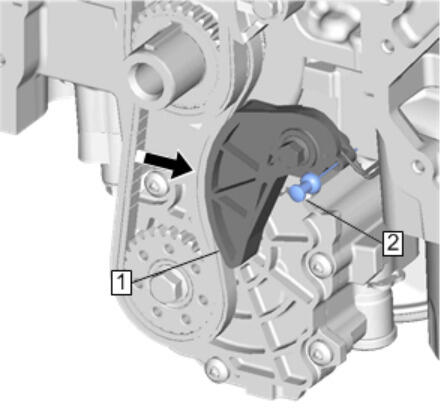

    2. Fig 1: Pushing Oil Pump Drive Chain Tensioner
    GM3985148Courtesy of GENERAL MOTORS COMPANY
  2. Push the oil pump drive chain tensioner (1) in direction of arrow.
  3. Lock the tensioner using a suitable tool (2).

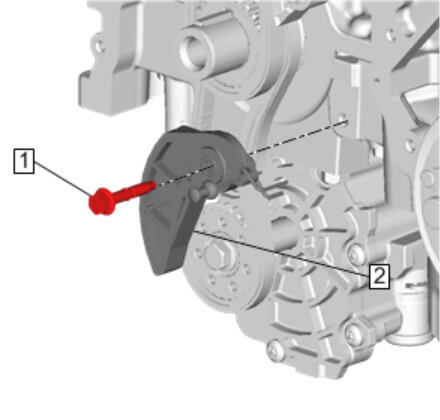

    4. Fig 2: Oil Pump Drive Chain Tensioner And Bolt
    GM3985120Courtesy of GENERAL MOTORS COMPANY
  4. Remove the oil pump drive chain tensioner bolt (1).
  5. Remove the oil pump drive chain tensioner (2).
