Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove Oil Pump Drive Chain Tensioner Replacement
  2. Remove Camshaft Timing Chain Replacement
  3. Remove Oil Pump Replacement .

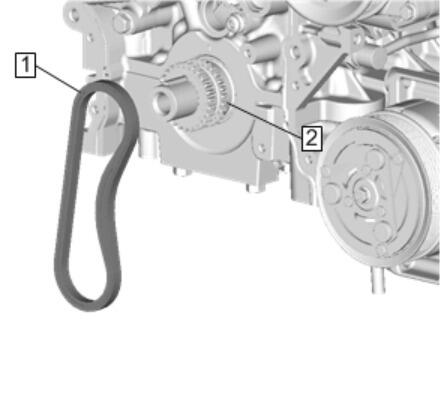

    4. Fig 1: Oil Pump Drive Chain And Crankshaft Sprocket
    GM3987522Courtesy of GENERAL MOTORS COMPANY
  4. Remove the oil pump drive chain (1) from the crankshaft sprocket (2).
