Installation Procedure

WARNING: This page is about a different variant/trim than selected.

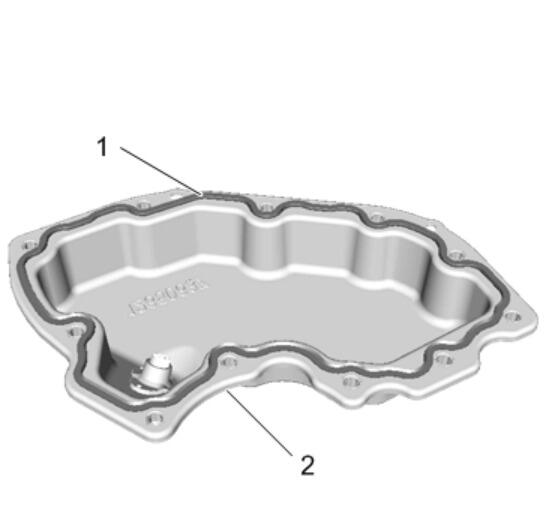

    Fig 1: Sealer
    GM4598238Courtesy of GENERAL MOTORS COMPANY
  1. Apply bead of sealer (1) on the level part of the flange around the perimeter of the NEW oil pan (2). Oil Pan Installation
    2. Fig 2: Lower Oil Pan Bolt
    GM4598237Courtesy of GENERAL MOTORS COMPANY
  2. Install NEW Lower Oil Pan (2)
  3. Loosely install Lower Oil Pan Bolt (1)
  4. Lower Oil Pan Bolt (1) - Tighten in sequence - Oil Pan Installation
  5. Change the engine oil and filter. Engine Oil and Oil Filter Replacement
