Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Intake Manifold Gasket
    GM3974149Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Upon installation of the intake manifold, ensure the gasket remains properly seated into the intake manifold (2).

  1. Install a NEW intake manifold gasket.
    2. Fig 2: Intake Manifold And Fasteners
    GM3974138Courtesy of GENERAL MOTORS COMPANY
  2. Install the intake manifold (2).
  3. Hand tighten the bolts.

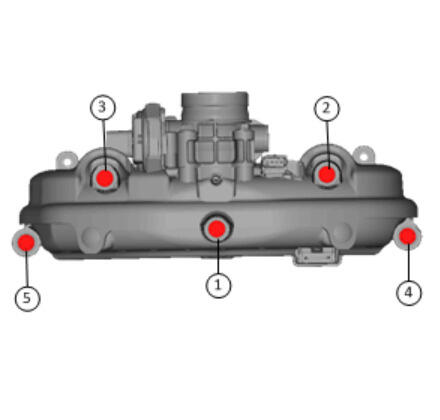

    4. Fig 3: Intake Manifold Bolt Tightening Sequence
    GM3974181Courtesy of GENERAL MOTORS COMPANY
  4. Tighten the bolts in sequence. 12 N.m (106 lb in)
    5. Fig 4: Engine Wiring Harness Bracket
    GM3682523Courtesy of GENERAL MOTORS COMPANY
  5. Install Engine Wiring Harness Bracket (2).
  6. Install Engine Wiring Harness Bracket Bolt (1) - and tighten 9 N.m (80 lb in) [2x]
  7. Install Fuel Feed Front Pipe - Fuel Feed Front Pipe Replacement
  8. Install Throttle Body Assembly - Throttle Body Assembly Replacement
    9. Fig 5: Electrical Connectors
    GM4594063Courtesy of GENERAL MOTORS COMPANY
  9. Connect the electrical connectors.(1, 2)
  10. Install Wiring Harness Retainer (3)
  11. Install Evaporative Emission Canister Purge Solenoid Valve - Evaporative Emission Canister Purge Solenoid Valve Replacement
  12. Install Intake Manifold Cover - Intake Manifold Cover Replacement
