Installation Procedure
WARNING: This page is about a different variant/trim than selected.
- Coat the intake camshaft with engine oil. Refer to:Adhesives, Fluids, Lubricants, and Sealers

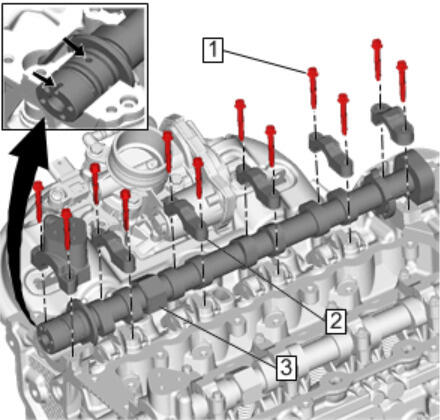

- Install the intake camshaft (3) in the cylinder head.
- Prior to installing the camshaft bearing caps, rotate the oil seal in the groove of the number one camshaft journal so that the split line is approximately at the 12 O ' clock position as indicated by the arrow
- Lubricate the camshaft bearing caps (2) and the bolts (1) with clean engine oil. Refer to:Adhesives, Fluids, Lubricants, and Sealers
- Install the camshaft bearing caps.(2)[6x]
- Hand start the 12 camshaft bearing cap bolts (1).
- Tighten the bearing cap bolts (1) in sequence three turns each until the caps are seated.
- Tighten the bearing cap bolts in sequence as shown to 12 N.m (106 lb in).
- Install Camshaft Position Actuator Replacement .
NOTE:
Ensure that the camshaft notch at the front of the camshaft indicated by arrow is in the 12 O ' clock position before installing the camshaft caps.
NOTE:
Ensure the caps are installed in the original location and position.
CAUTION:
Refer to Fastener Caution .
