Installation Procedure

WARNING: This page is about a different variant/trim than selected.

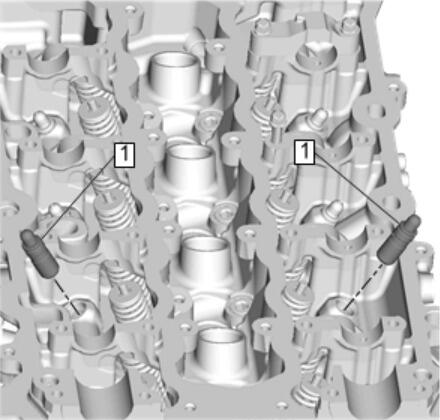

    Fig 1: Hydraulic Valve Lash Adjuster
    GM3982783Courtesy of GENERAL MOTORS COMPANY
  1. Install the 16 hydraulic valve lash adjusters (1) in the bores in the cylinder head.
  2. Apply lubricant to the 16 hydraulic valve lash adjusters (1). Adhesives, Fluids, Lubricants, and Sealers .
  3. Install Hydraulic Valve Lash Adjuster Arm Replacement
