Removal Procedure

WARNING: This page is about a different variant/trim than selected.

Remove Intake Camshaft Replacement
Remove Exhaust Camshaft Replacement

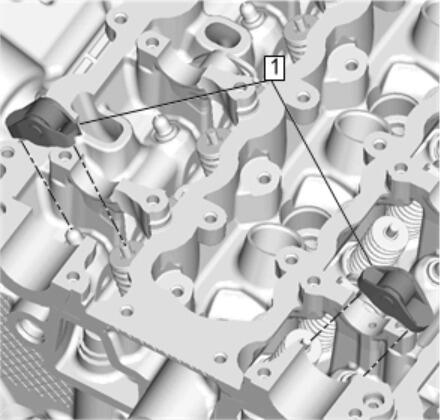

Fig 1: Hydraulic Valve Lash Adjuster Arm

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Many internal engine components will develop specific wear patterns on their friction surfaces.

NOTE:

Components MUST be separated, marked, or organized in a way to ensure installation to their original location and position. Take precautions in order to prevent interchanging of parts. Tag or mark each part immediately when removed. Indicate location, direction, or orientation when necessary.

Remove Hydraulic Valve Lash Adjuster Arm (1)[16x]
