Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Relieve the fuel system pressure. Fuel Pressure Relief

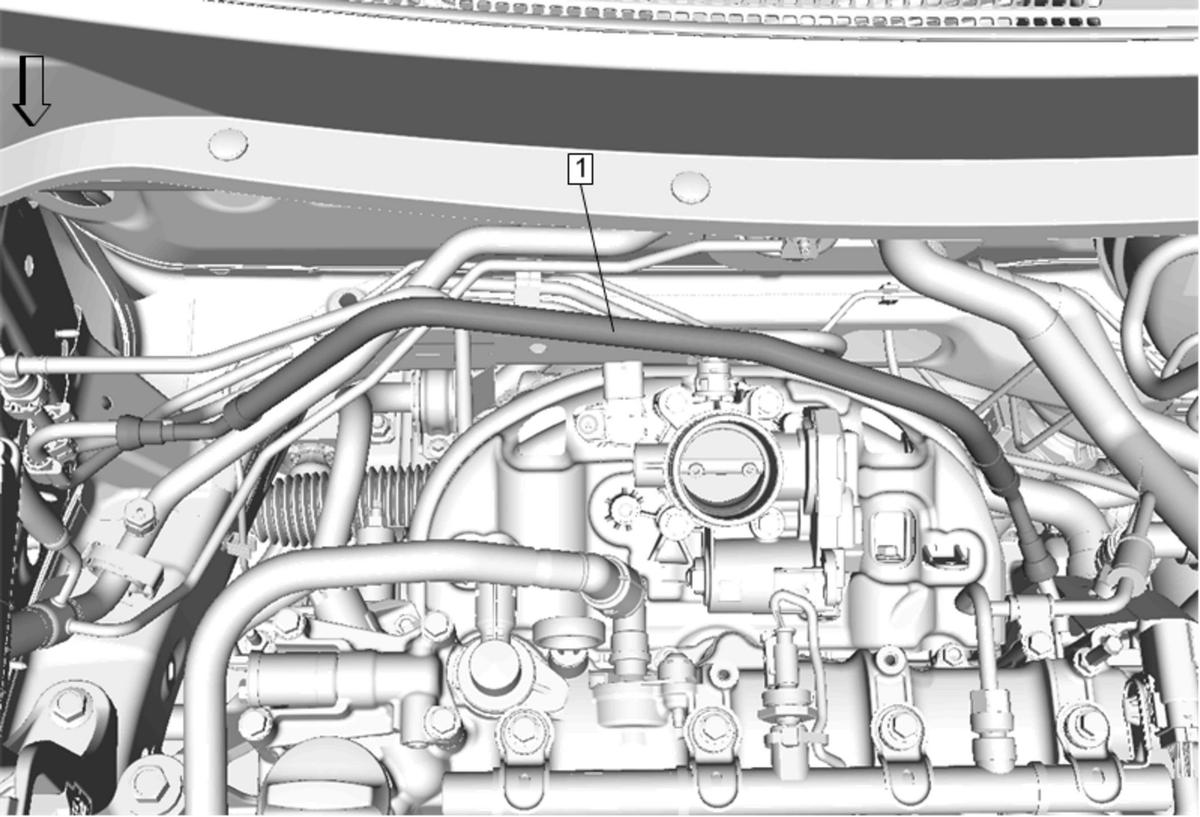

    2. Fig 1: Fuel Feed Front Pipe
    GM4592887Courtesy of GENERAL MOTORS COMPANY
  2. Disconnect Fuel Feed Front Pipe (1) @ Engine Fuel Feed Front Pipe Replacement
  3. Recover the refrigerant. Refrigerant Recovery and Recharging (R-134a)Refrigerant Recovery and Recharging (R-1234yf)
    4. Fig 2: Intake Manifold Cover
    GM4583622Courtesy of GENERAL MOTORS COMPANY
  4. Remove Intake Manifold Cover (3) - Intake Manifold Cover Replacement
  5. Remove Charge Air Cooler Inlet Air Tube - Charge Air Cooler Inlet Air Tube Replacement
  6. Remove Charge Air Cooler Outlet Air Tube - Charge Air Cooler Outlet Air Tube Replacement
  7. Remove Air Cleaner Assembly - Air Cleaner Assembly Replacement

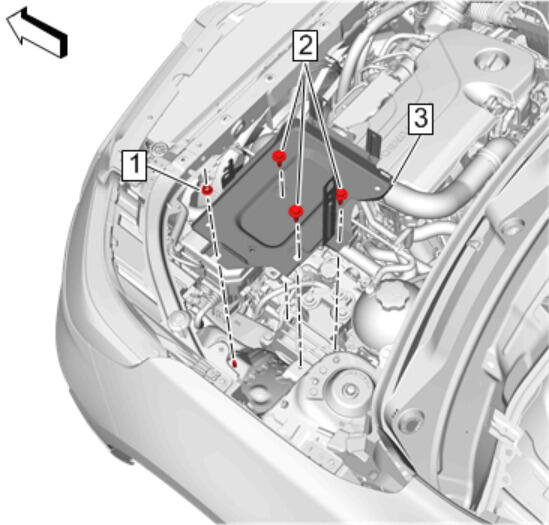

    8. Fig 3: Battery Tray
    GM4582789Courtesy of GENERAL MOTORS COMPANY
  8. Remove Battery Tray (3)Battery Tray Replacement
  9. Remove Radiator Inlet Hose - Radiator Inlet Hose Replacement (LYX)
  10. Remove Radiator Outlet Hose - Radiator Outlet Hose Replacement (LYX)

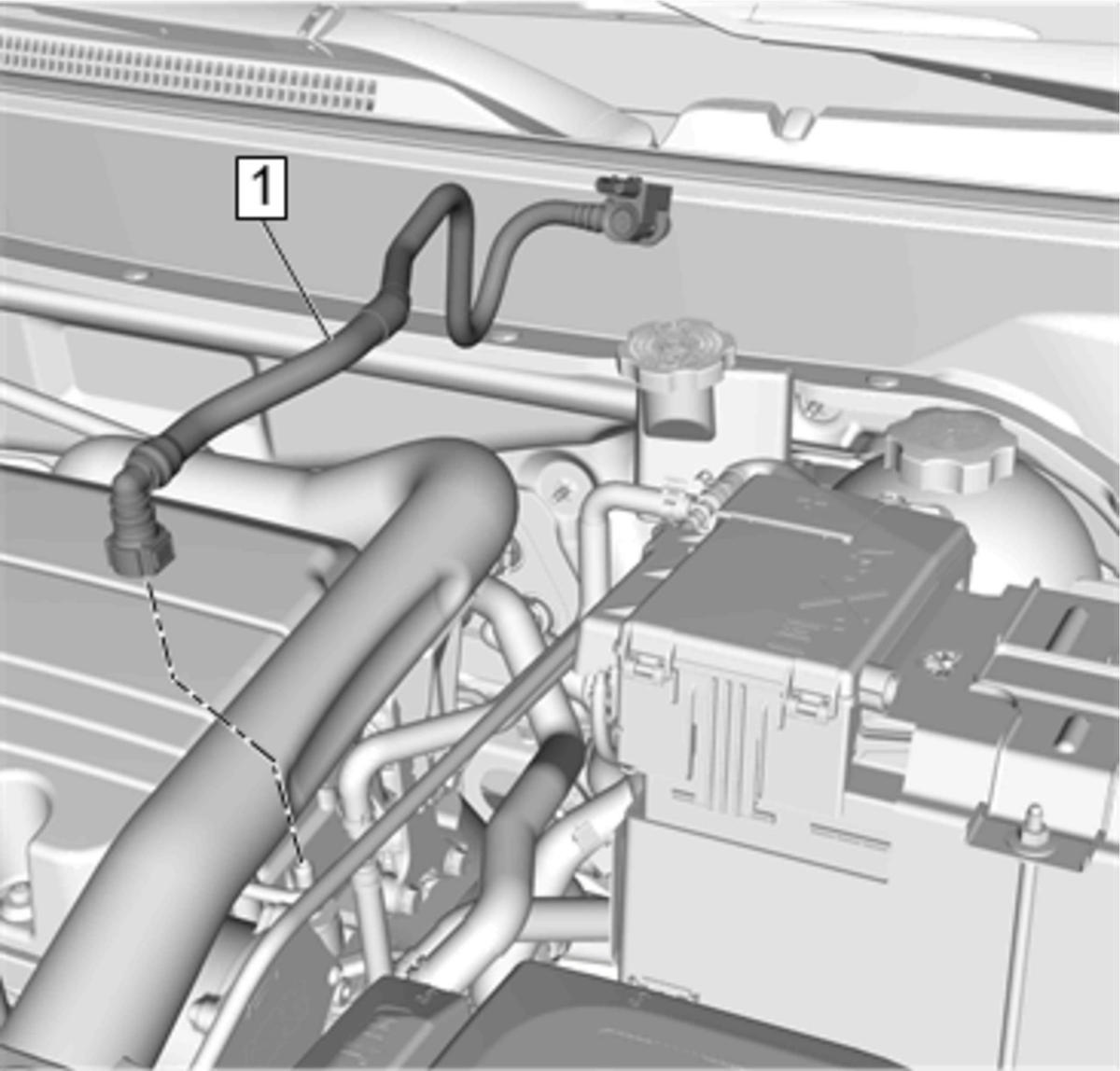

    11. Fig 4: Power Brake Booster Vacuum Pipe
    GM4599595Courtesy of GENERAL MOTORS COMPANY
  11. Remove Power Brake Booster Vacuum Pipe (1)Power Brake Booster Vacuum Pipe Replacement (LYX)
  12. Remove Heater Inlet Hose - Heater Inlet Hose Replacement (LYX AWD without KL9)Heater Inlet Hose Replacement (LYX with KL9)
  13. Remove Heater Outlet Hose - Heater Outlet Hose Replacement (LYX without KL9)

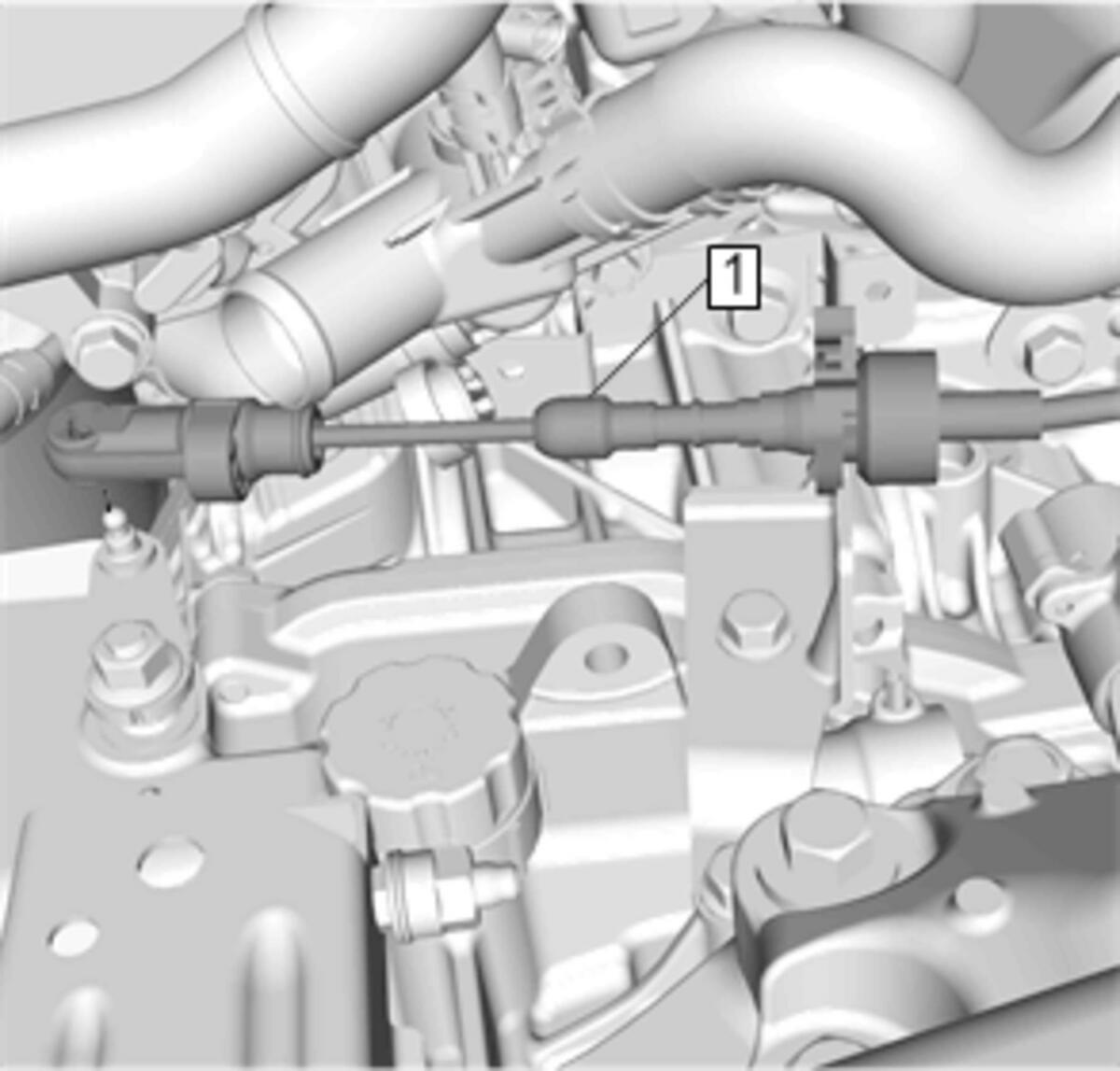

    14. Fig 5: Range Selector Lever Cable
    GM4138084Courtesy of GENERAL MOTORS COMPANY
  14. Disconnect Range Selector Lever Cable (1) @Transmission - Range Selector Lever Cable Replacement
  15. Remove Underbody Front Air Deflector -Underbody Front Air Deflector Replacement (Equinox)Underbody Front Air Deflector Replacement (Terrain)
  16. Remove Exhaust Front Pipe - Exhaust Front Pipe Replacement (LYX)
  17. Disconnect Air Conditioning Evaporator Connector Hose/Tube and Compressor Hose@Air Conditioning Compressor - Air Conditioning Evaporator Connector Hose/Tube and Compressor Hose Replacement (LYX)

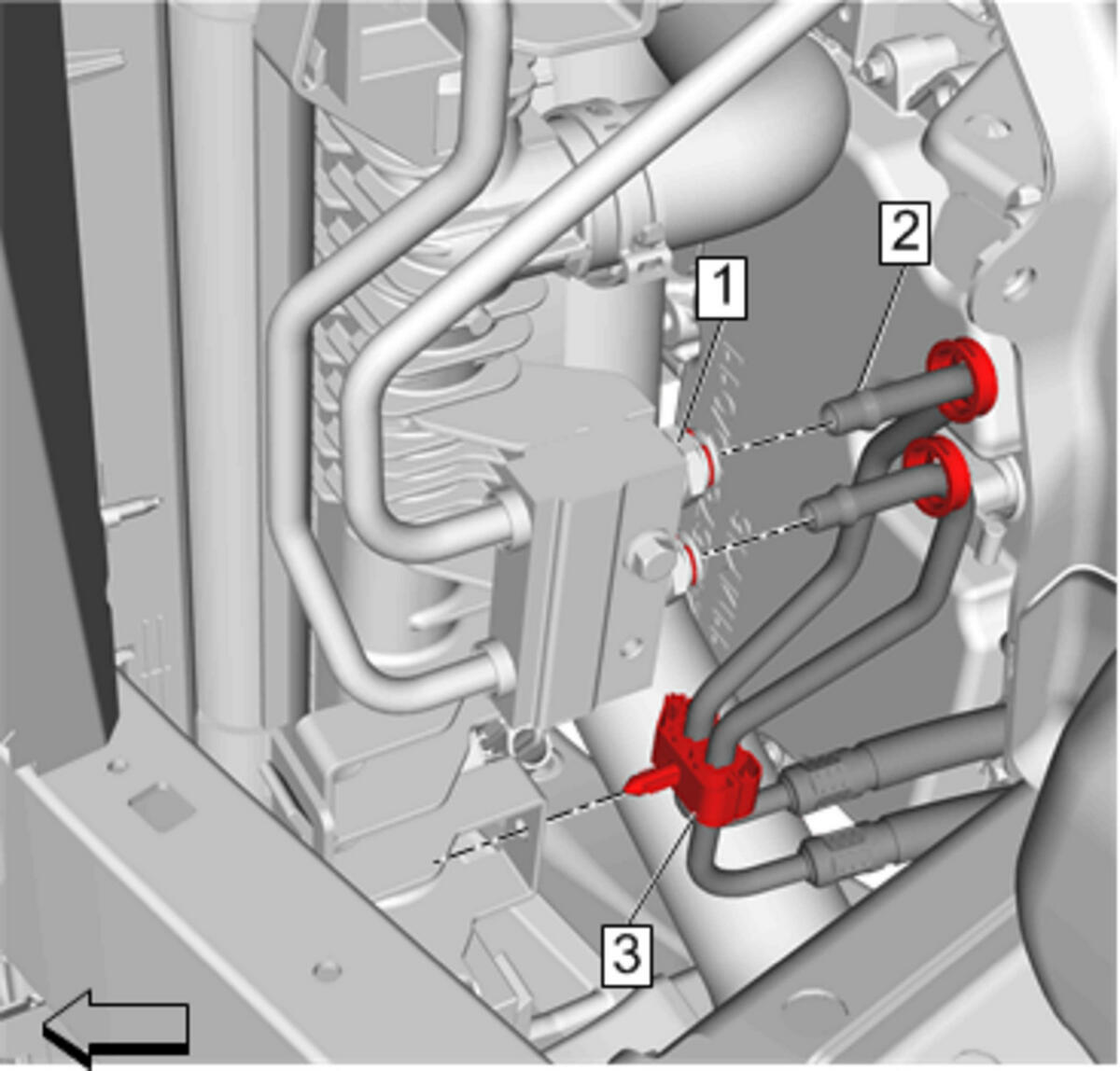

    18. Fig 6: Transmission Fluid Cooler Inlet and Outlet Pipe
    GM4583249Courtesy of GENERAL MOTORS COMPANY
  18. Disconnect Transmission Fluid Cooler Inlet and Outlet Pipe@Radiator Assembly - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (MNH, MHG)Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (M3D, M3H, M3U)
  19. Remove Front Wheel Drive Half Shaft-Left Side - Front Wheel Drive Half Shaft Replacement - Left Side
  20. Remove Front Wheel Drive Half Shaft-Right Side - Front Wheel Drive Half Shaft Replacement - Right Side (AWD)Front Wheel Drive Half Shaft Replacement - Right Side (M3U, MHG, MNH, MNK with FWD)Front Wheel Drive Half Shaft Replacement - Right Side (M3D, M3H with FWD)
  21. Remove Propeller Shaft -Two-Piece Propeller Shaft Replacement
    22. Fig 7: Intermediate Steering Shaft
    GM4582608Courtesy of GENERAL MOTORS COMPANY
  22. Remove Intermediate Steering Shaft - Intermediate Steering Shaft Replacement (Equinox)Intermediate Steering Shaft Replacement (Terrain)

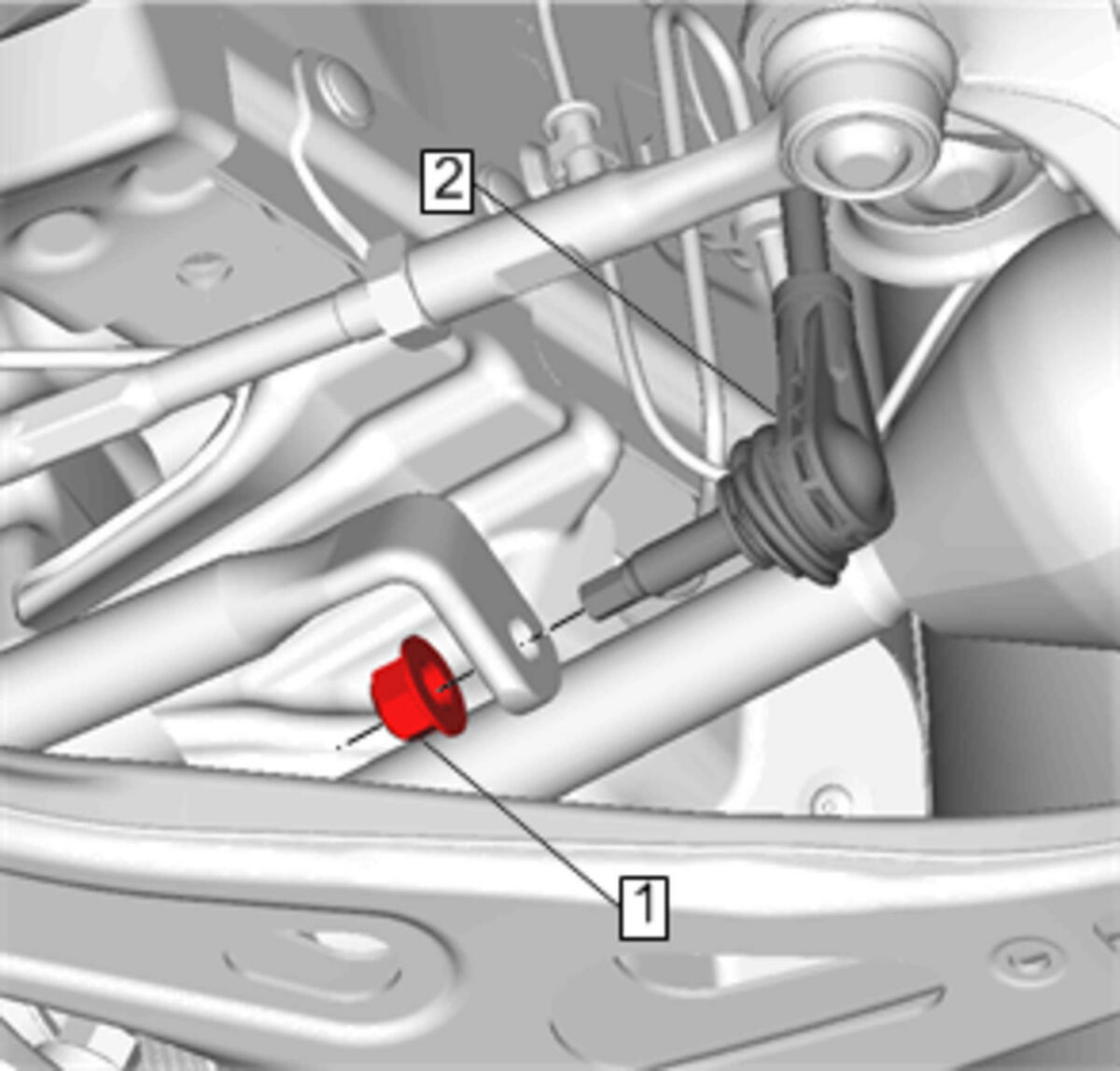

    23. Fig 8: Stabilizer Link Nuts
    GM3992231Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Right side shown, left side is similar.

  23. Remove left and right side the stabilizer link nuts (1) then disconnect the links at the stabilizer. Stabilizer Shaft Link Replacement (Equinox)Stabilizer Shaft Link Replacement (Terrain)

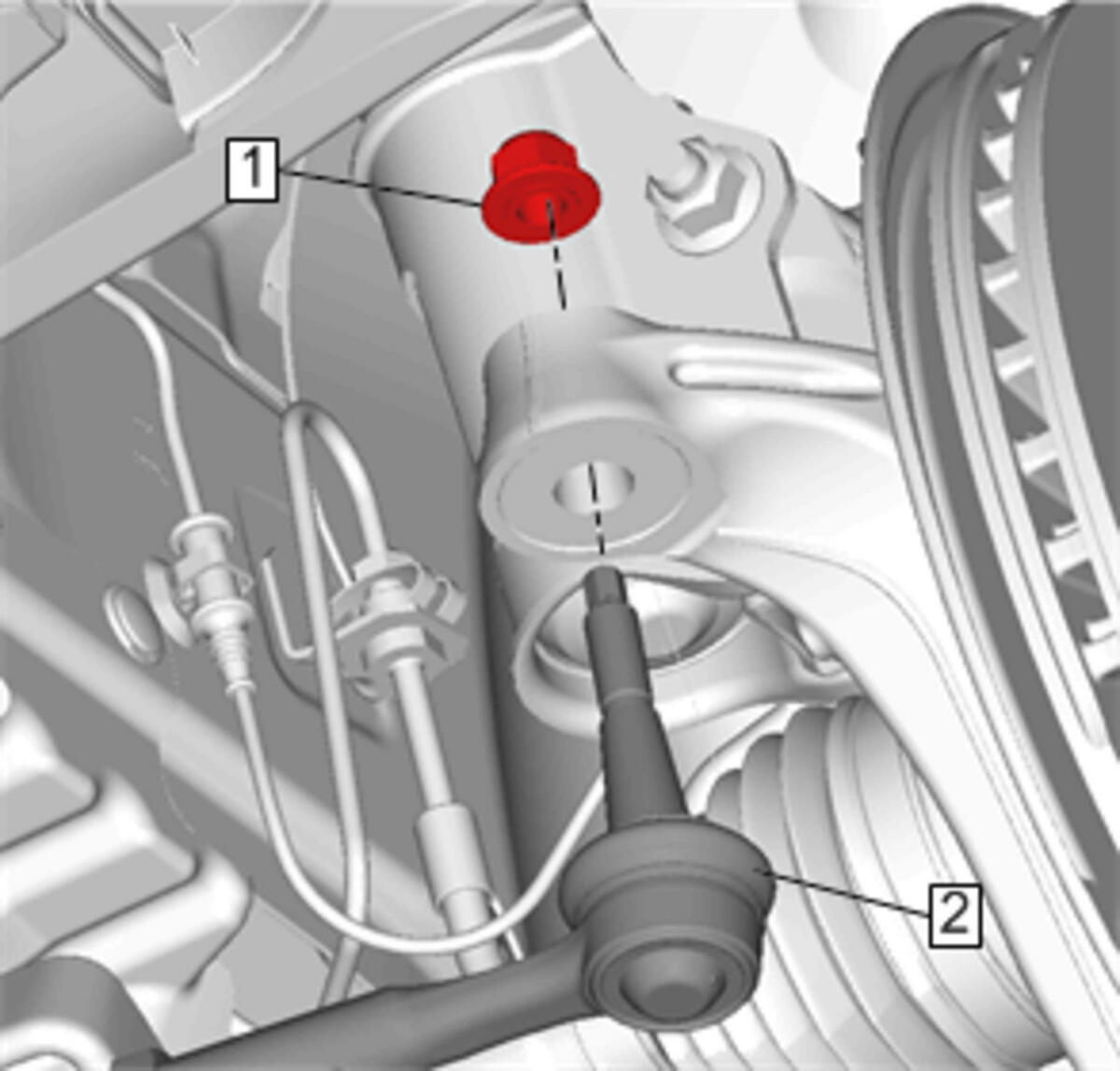

    24. Fig 9: Tie Rods And Nuts
    GM3992236Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Right side shown, left side is similar.

  24. Remove the left and right side tie rod nuts (1), then disconnect the tie rods (2) from the steering knuckles. Steering Linkage Outer Tie Rod Replacement
    25. Fig 10: Evaporative Emission Front Hose
    GM4592875Courtesy of GENERAL MOTORS COMPANY
  25. Remove Evaporative Emission Front Hose - Evaporative Emission Front Hose Replacement
  26. Position a suitable engine table or equivalent under the cradle to support the cradle and powertrain.
    27. Fig 11: Engine Mount Bracket Bolts
    GM4597434Courtesy of GENERAL MOTORS COMPANY
  27. Remove Engine Mount Fastener - and DISCARD - Engine Mount Replacement
    28. Fig 12: Transmission Mount Bolts And Fastener
    GM4572700Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    ONLY the fasteners (2) should be removed and DISCARDED

  28. Remove Transmission Mount Fastener (2) and DISCARD [3x] - Transmission Mount Replacement - Left Side
    29. Fig 13: Front Cradle Mounting Bolts
    GM4589451Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Use a suitable device to hold the cradle while removing the fasteners.

    NOTE:

    Remove ONLY the body to frame bolts as the powertrain will be removed while still bolted to the frame.

  29. Remove bolts necessary to remove the cradle (1) (2) and (3). Drivetrain and Front Suspension Cradle Replacement (Front Wheel Drive)Drivetrain and Front Suspension Cradle Replacement (All Wheel Drive)
  30. Disconnect electrical connections and reposition harnesses as needed.
  31. Carefully lower the engine table and raise the body on the hoist until the engine/transaxle and frame are separated from the vehicle.
  32. Separate the engine from the transmission. Transmission Replacement (Front Wheel Drive except Diesel Engine)Transmission Replacement (All Wheel Drive except Diesel Engine)Transmission Replacement (All Wheel Drive with Diesel Engine, Equinox)Transmission Replacement (Front Wheel Drive with Diesel Engine)Transmission Replacement (All Wheel Drive with Diesel Engine, Terrain)
  33. Install the engine to a suitable engine stand.
