Installation Procedure

WARNING: This page is about a different variant/trim than selected.

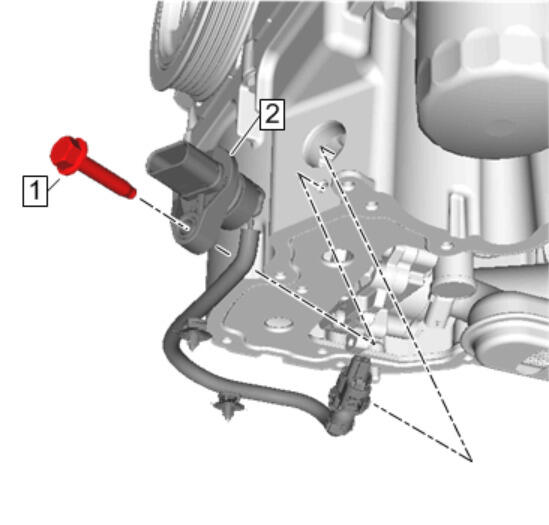

    Fig 1: Wiring Harness Connector Bolt
    GM4597727Courtesy of GENERAL MOTORS COMPANY
  1. Install Engine Oil Level Indicator Control Module Wiring Harness (2)
    2. CAUTION:

    Fastener Caution

  2. Install Wiring Harness Connector Bolt (1) and tighten 10 N.m (89 lb in)

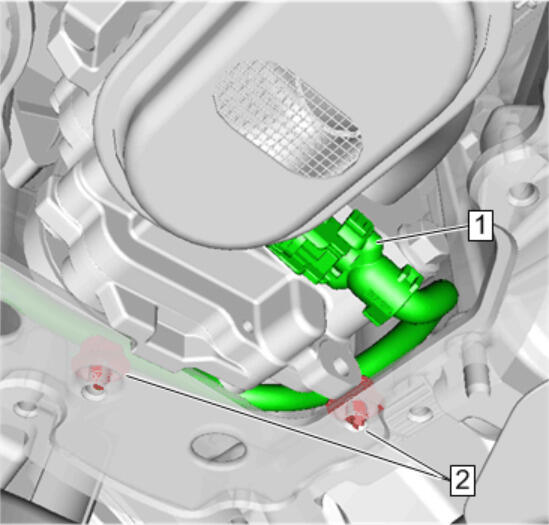

    3. Fig 2: Electrical Connector And Wiring Harness Retainer
    GM4597718Courtesy of GENERAL MOTORS COMPANY
  3. Install { If equipped } Wiring Harness Retainer (2)
  4. Connect Electrical Connector (1) @Oil Pump Flow Control Solenoid Valve (1).

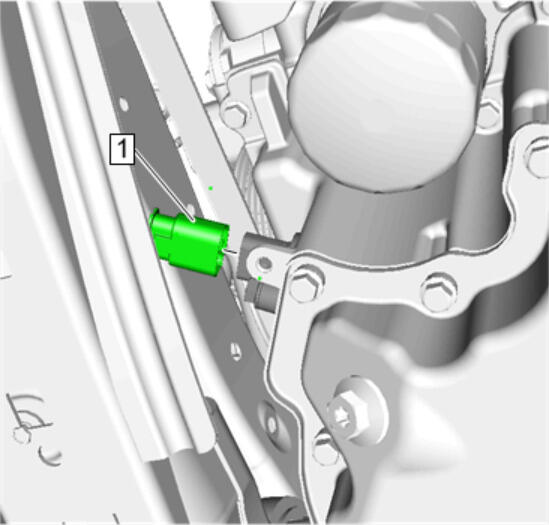

    5. Fig 3: Electrical Connector
    GM4597714Courtesy of GENERAL MOTORS COMPANY
  5. Connect Electrical Connector (1) @Engine Oil Level Indicator Control Module Wiring Harness
  6. Install Lower Oil Pan - Lower Oil Pan Replacement
  7. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (KL9)
