Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove Intake Manifold Cover - Intake Manifold Cover Replacement
  2. Remove Air Cleaner Assembly -Air Cleaner Assembly Replacement
  3. Install Engine Support Fixture - Engine Support Fixture

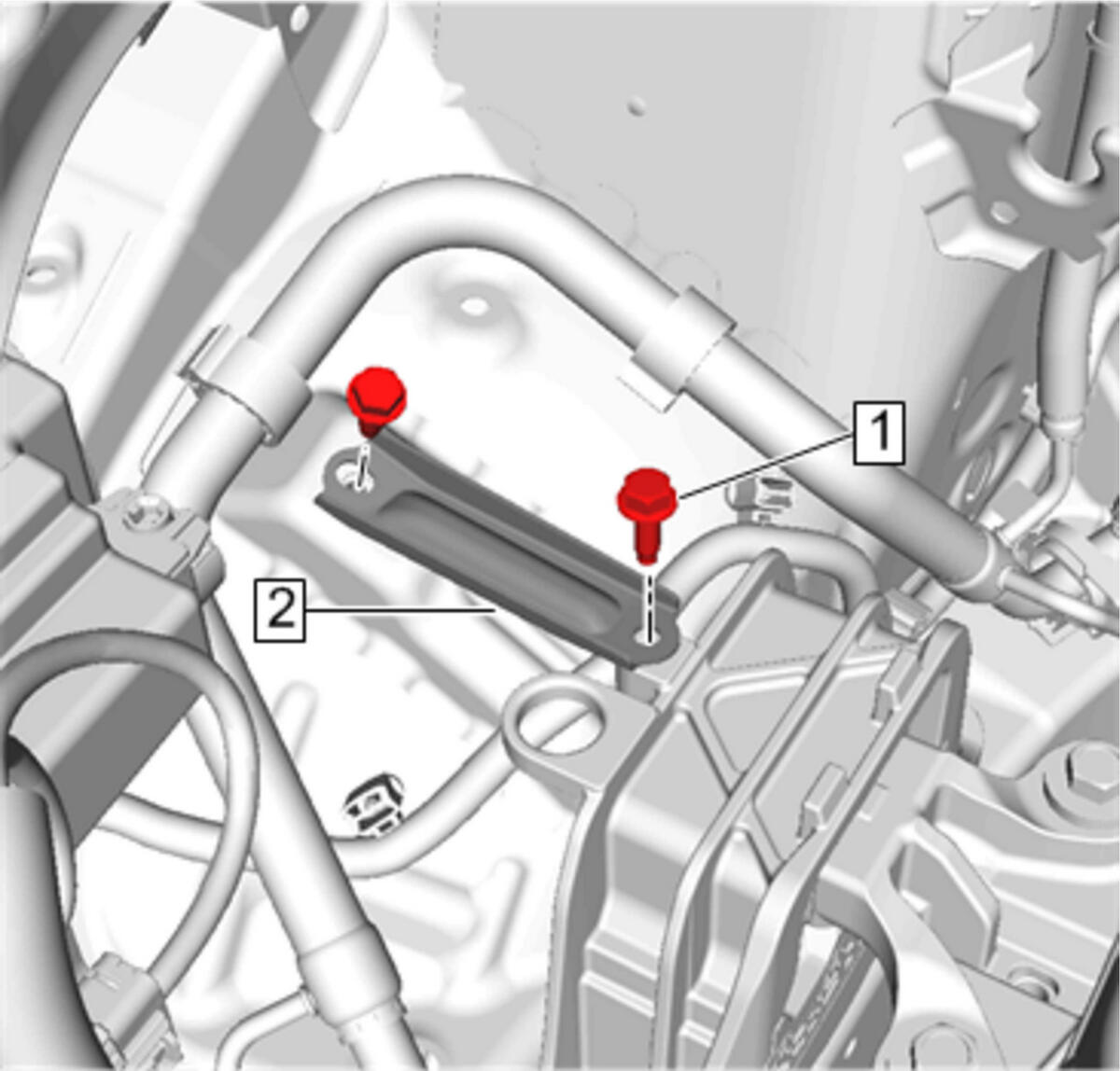

    4. Fig 1: Engine Mount Brace And Bolt
    GM4597428Courtesy of GENERAL MOTORS COMPANY
  4. Remove Engine Mount Brace Bolt (1)
  5. Remove Engine Mount Brace (2)

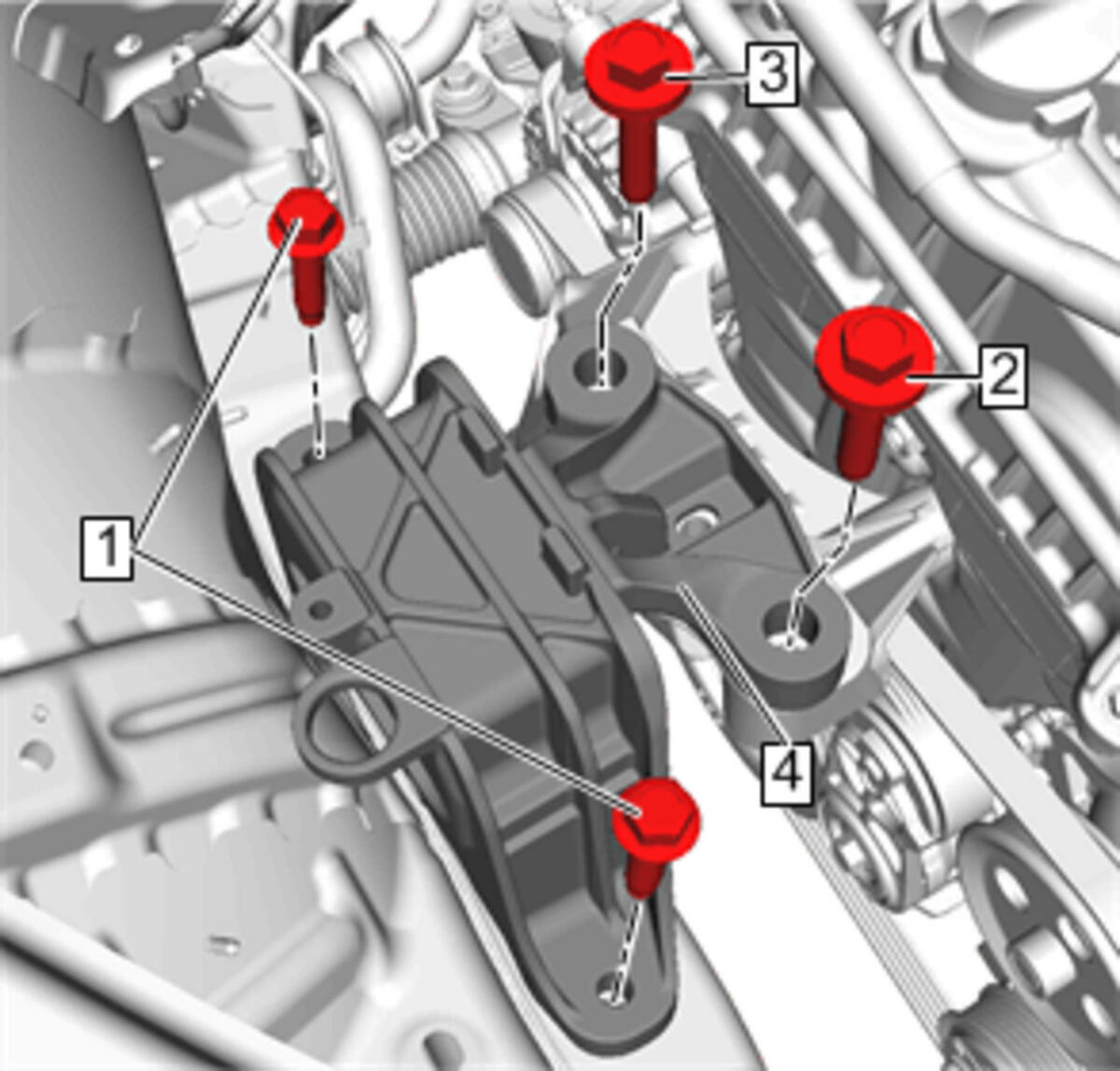

    6. Fig 2: Engine Mount Bolt
    GM4847332Courtesy of GENERAL MOTORS COMPANY
  6. Remove Engine Mount Bolt (1)
  7. Remove Engine Mount Engine Side Bolt (2) and DISCARD
  8. Remove Engine Mount Engine Side Bolt (3) and DISCARD
  9. Remove Engine Mount (4)
