Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove Charge Air Cooler Outlet Air Tube - Charge Air Cooler Outlet Air Tube Replacement

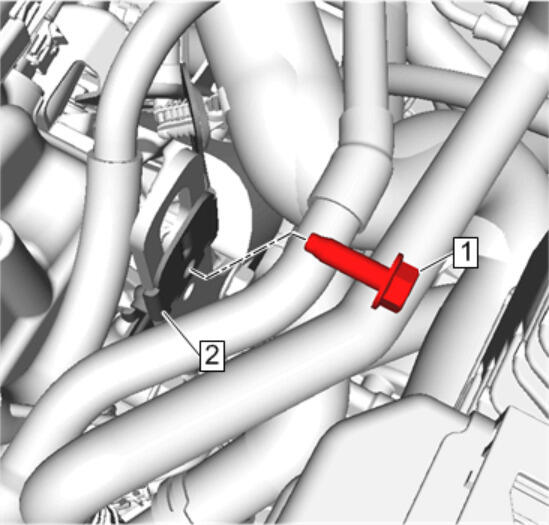

    2. Fig 1: Engine Wiring Harness Bracket Bolt And Charge Air Cooler Outlet Air Tube
    GM4594288Courtesy of GENERAL MOTORS COMPANY
  2. Remove Engine Wiring Harness Bracket Bolt (1).

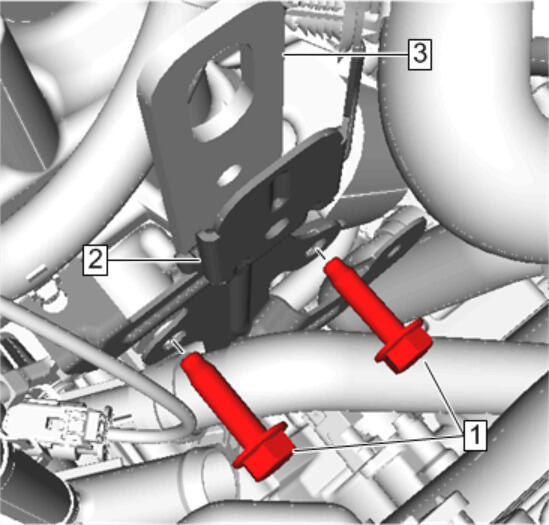

    3. Fig 2: Engine Wiring Harness Bracket And Engine Lift Bracket
    GM4594305Courtesy of GENERAL MOTORS COMPANY
  3. Remove Engine Lift Bracket Bolt (1)
  4. Separate the engine wiring harness bracket (2) from the engine lift bracket then remove the engine lift bracket (3).
