Removal Procedure

WARNING: This page is about a different variant/trim than selected.

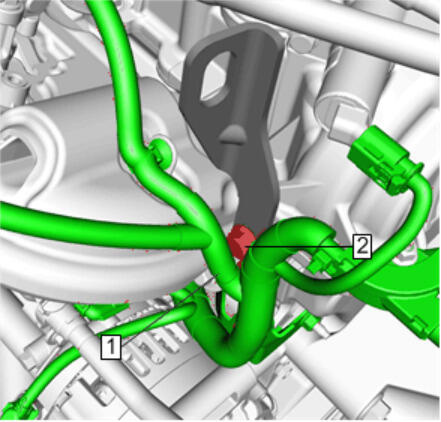

    Fig 1: Wiring Harness And Bolts
    GM4113115Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Slight repositioning of the wiring harness will gain enough clearance to access the bolts (2)

  1. Reposition the wiring harness (1)

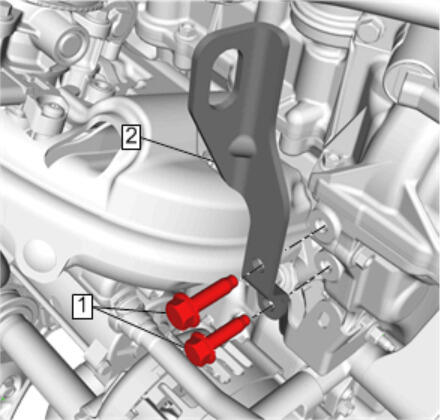

    2. Fig 2: Engine Lift Bracket And Bolts
    GM4113114Courtesy of GENERAL MOTORS COMPANY
  2. Remove Engine Lift Bracket Bolt (1)
  3. Remove Engine Lift Bracket (2)
