Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove Drive Belt - Drive Belt Replacement

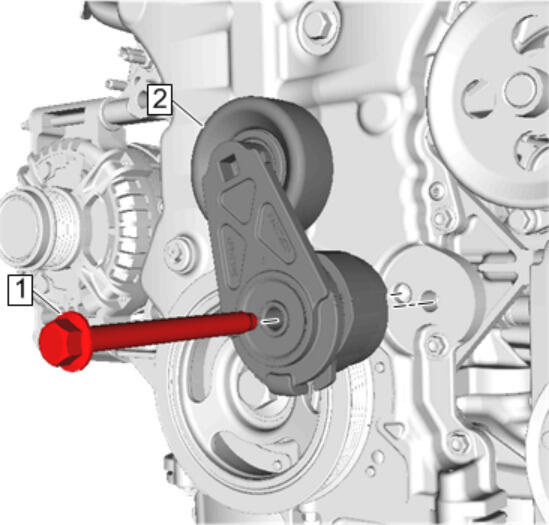

    2. Fig 1: Drive Belt Tensioner
    GM4583427Courtesy of GENERAL MOTORS COMPANY
  2. Remove Drive Belt Tensioner Fastener (1).
  3. Remove Drive Belt Tensioner (2).
