Removal Procedure

WARNING: This page is about a different variant/trim than selected.

Remove Front Wheelhouse Liner-Right Side - Front Wheelhouse Liner Replacement - Right Side (Equinox)Front Wheelhouse Liner Replacement - Right Side (Terrain)

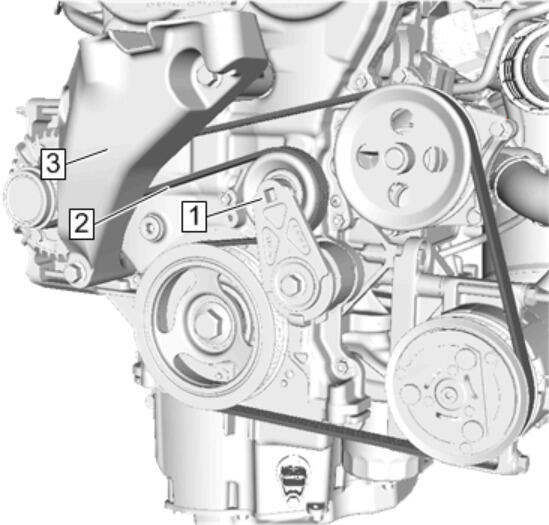

Fig 1: Drive Belt Diagram

Courtesy of GENERAL MOTORS COMPANY

Rotate the drive belt tensioner (1) counterclockwise and hold tension.

NOTE:

It is NOT necessary to remove the engine mount bracket (3) to remove the belt. Once the drive belt has been removed from the pulleys, navigate the belt past the engine mount bracket to remove.

Remove Drive Belt (2).
Slowly release the tension on the drive belt tensioner.(1)
