Installation Procedure

WARNING: This page is about a different variant/trim than selected.

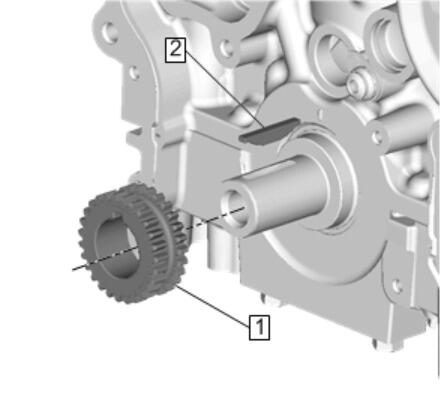

    Fig 1: Crankshaft Sprocket And Balancer Key
    GM3984620Courtesy of GENERAL MOTORS COMPANY
  1. Install the crankshaft balancer key (2).
  2. Align the keyway of the crankshaft sprocket with the crankshaft balancer key.
  3. Install Crankshaft Sprocket (1)
  4. Install Oil Pump Drive Chain Replacement
  5. Install Camshaft Timing Chain Replacement
