Installation Procedure
WARNING: This page is about a different variant/trim than selected.

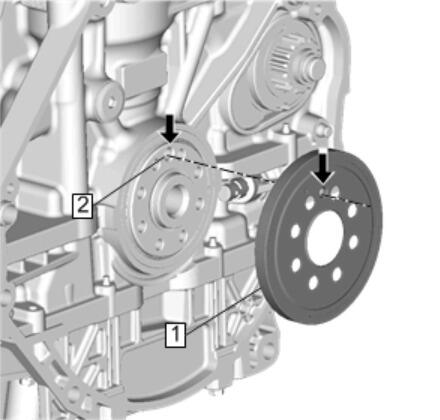

- Install the crankshaft position sensor reluctor ring.(1)
- Install Automatic Transmission Flex Plate Replacement
CAUTION:
Do not allow the crankshaft position sensor reluctor ring to come into contact with external magnetic fields or sharp metal objects. Do not drop the crankshaft position sensor reluctor ring. Do not damage the rubberized encoder track. Failure to follow these precautions may cause damage to the component.
NOTE:
Ensure that the crankshaft reluctor ring alignment hole indicated by arrows properly aligns with the hole in the crankshaft (2).
