Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove Crankshaft Balancer Replacement
    2. Fig 1: Identifying Crankshaft Front Oil Seal
    GM3686999Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The engine can be equipped with two different front oil seal designs.

  2. Check the seal to confirm which crankshaft front oil seal (1, 2) is installed.

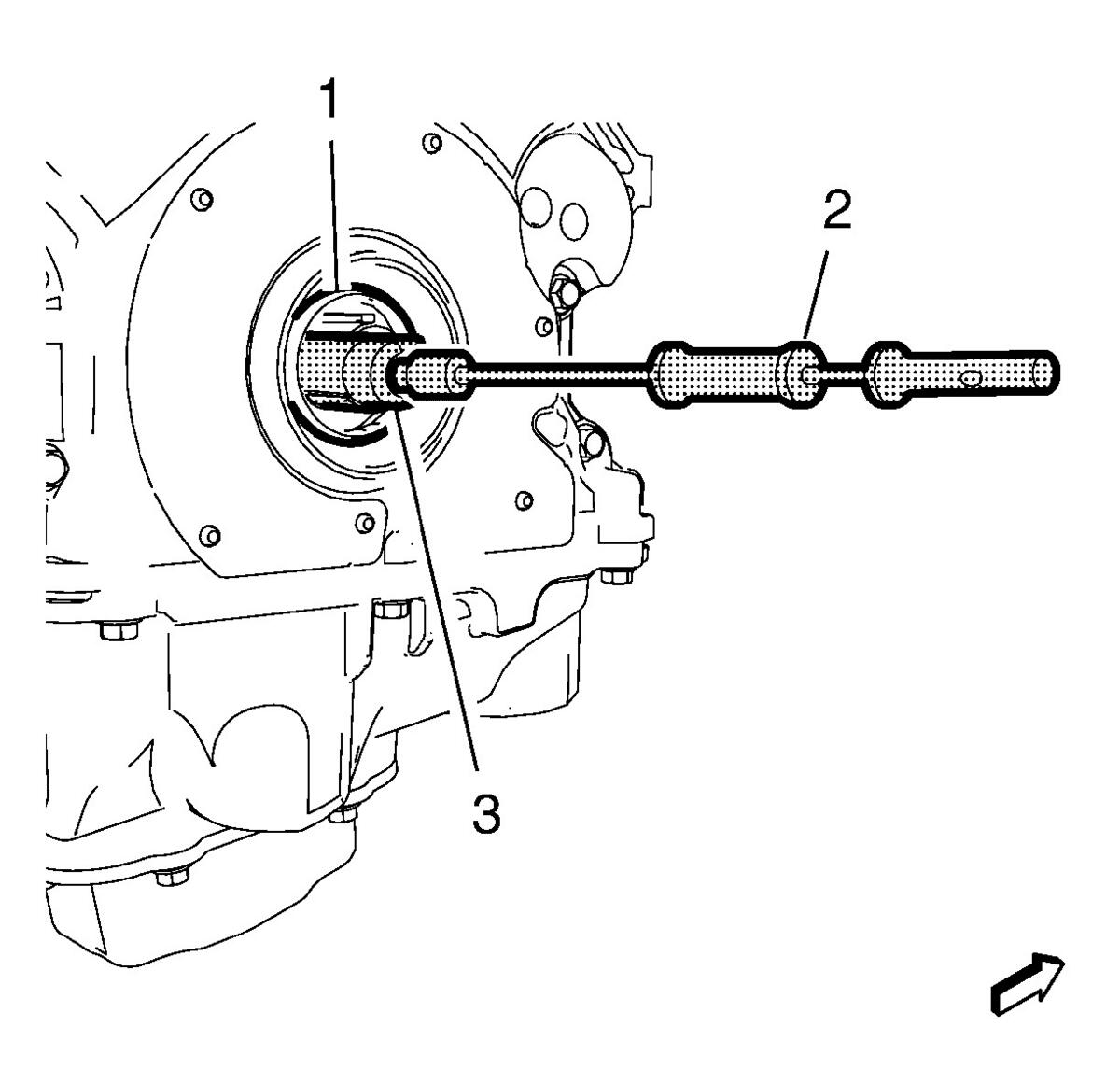

    3. Fig 2: Removing Crankshaft Front Oil Seal
    GM3686993Courtesy of GENERAL MOTORS COMPANY
  3. Install the DT-6125-B  hammer (2) to DT-23129  seal remover (3).
  4. Install the DT-2165-B  hammer with the DT-23129  seal remover behind the crankshaft front oil seal (1).
  5. Remove the crankshaft front oil seal (1), with the DT-6125-B  hammer (2).
