Installation Procedure
WARNING: This page is about a different variant/trim than selected.

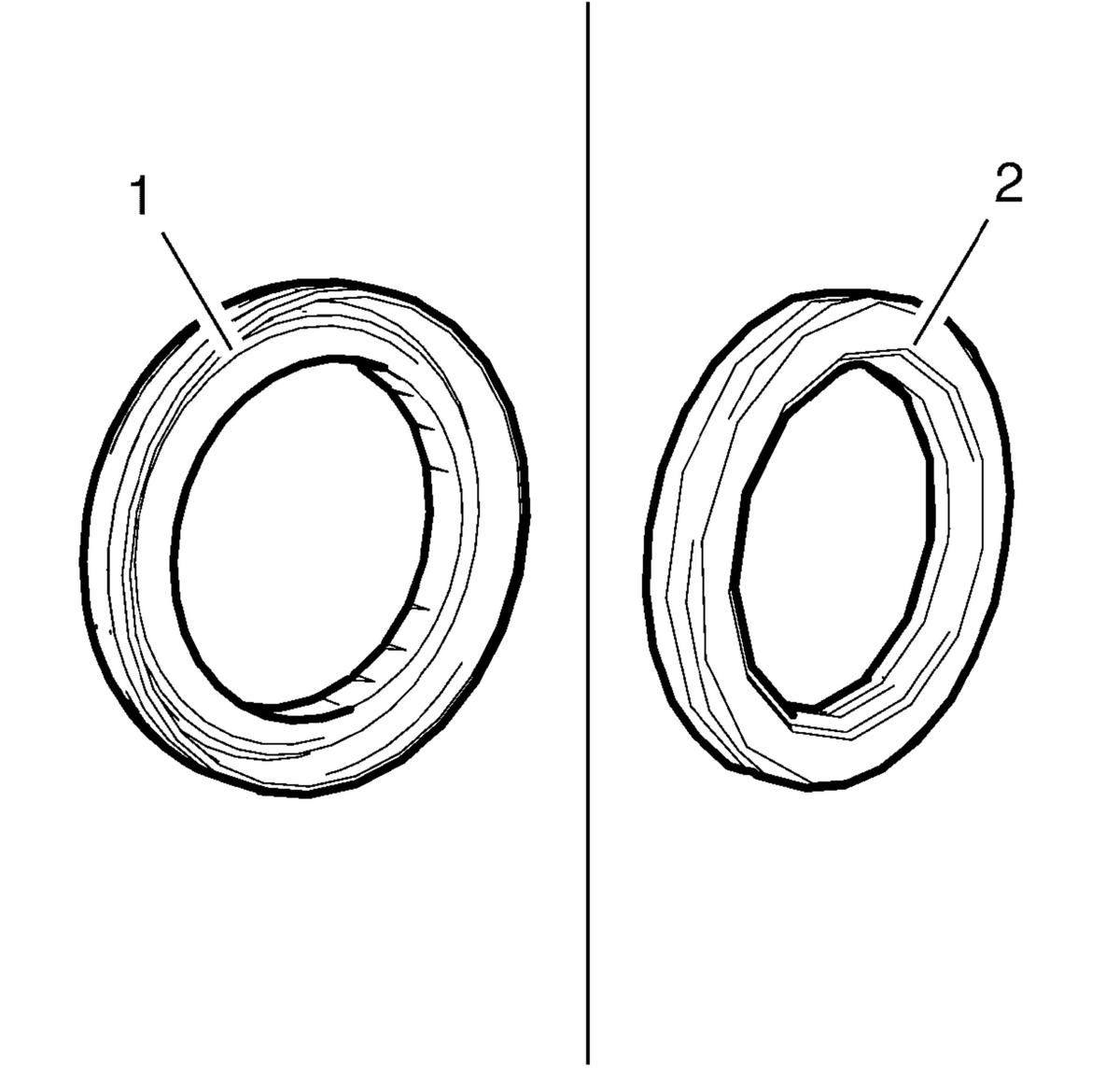

- Check the seal to confirm which crankshaft front oil seal (1, 2) is installed.
- For front oil seal first design, use the following procedure:

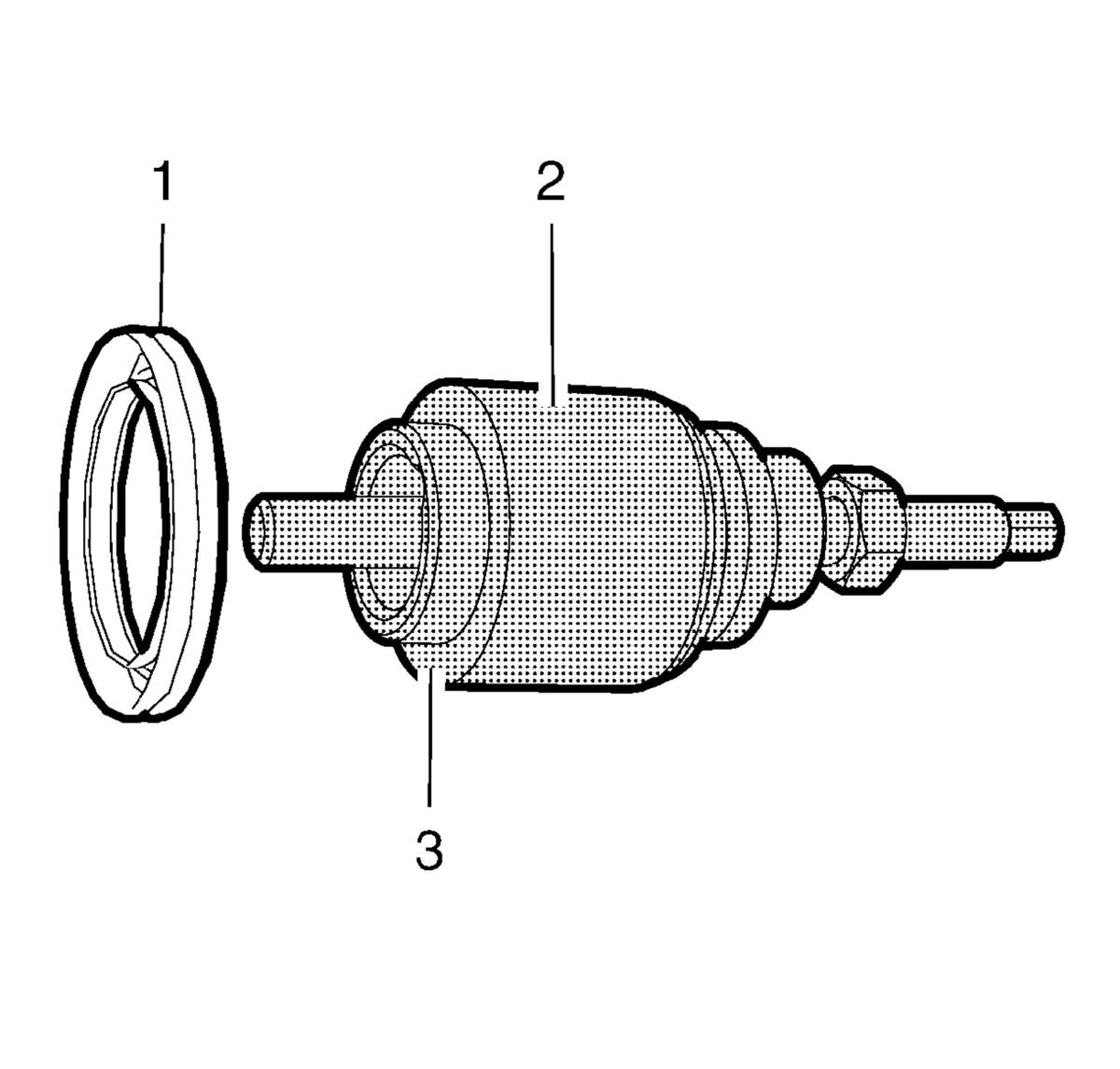

- Install the crankshaft front oil seal (1) to the EN-51368 seal installer (2) with the notch on the surface. (3).
- For front oil seal second design, use the following procedure:

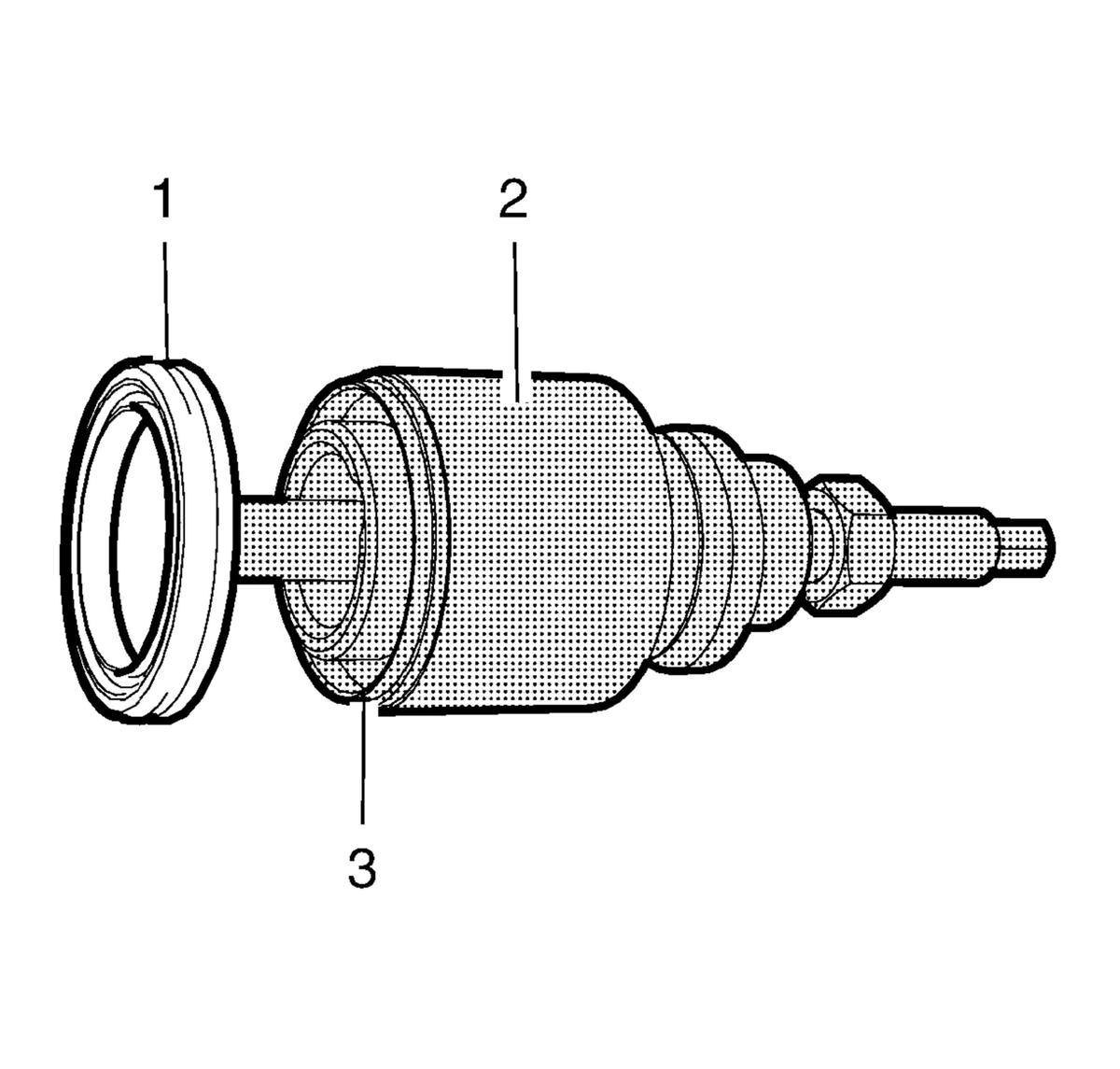

- Install the crankshaft front oil seal (1) to the EN-51368 seal installer (2) with the plain surface (3).

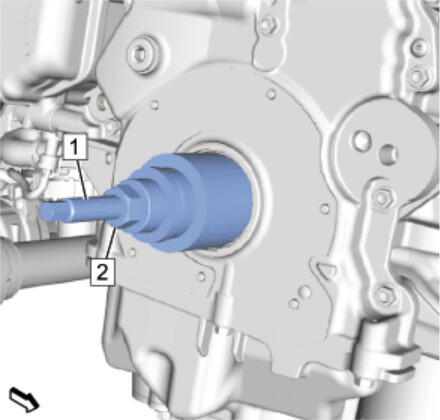

- Press the crankshaft front oil seal into the correct seat, by tightening the nut (2) from the EN-51368 seal installer (1).
- Remove the EN-51368 seal installer
- Check to ensure that the crankshaft front oil seal is properly seated.
- Install Crankshaft Balancer Replacement
NOTE:
The engine can be equipped with two different front oil seal designs.
NOTE:
The special tool EN-51368 seal installer can be used in two positions, depending which crankshaft front oil seal type is used.
NOTE:
The special tool EN-51368 seal installer can be used in two positions, depending which crankshaft front oil seal type is used.
CAUTION:
Be careful that the crankshaft front oil seal does not deform while installing. Failing to do so may reduce the leak-tightness and could cause damage to the crankshaft.
