Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove Drive Belt Replacement

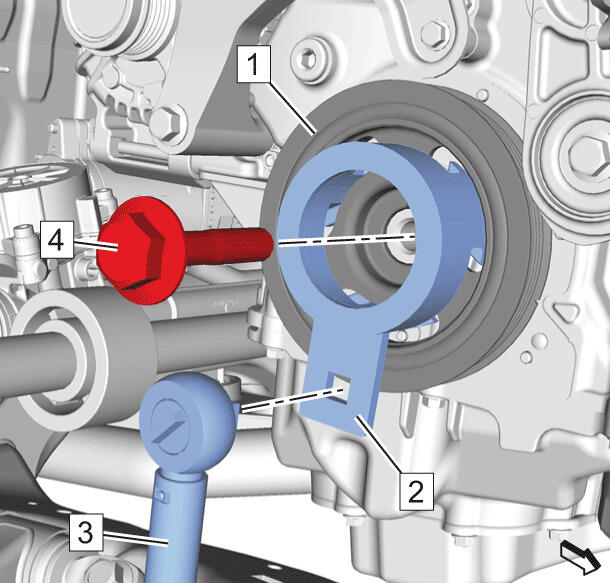

    2. Fig 1: Crankshaft Balancer, Special Tools And Bolt
    GM3686986Courtesy of GENERAL MOTORS COMPANY
  2. Install the EN-44226-1  remover (2) to the crankshaft balancer (1).
  3. Loosen the crankshaft balancer bolt (3) by counter holding the crankshaft balancer (1) with the EN-44226-1  remover (3) and suitable tool.
  4. Remove the EN-44226-1  remover.
  5. Remove the crankshaft balancer bolt.

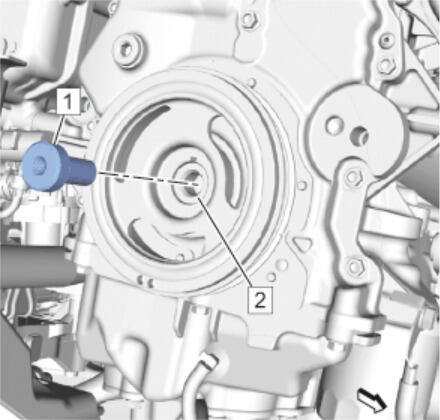

    6. Fig 2: Protector And Crankshaft
    GM3686991Courtesy of GENERAL MOTORS COMPANY
  6. Install the EN-44226-5  protector (1) to the crankshaft (2).

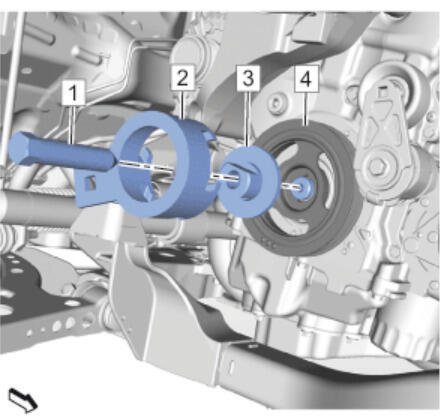

    7. Fig 3: Remover Plate Assembly And Balancer
    GM3952844Courtesy of GENERAL MOTORS COMPANY
  7. Install EN-44226-1  remover (2) and EN-44226-2  remover plate (3) onto the balancer (4).
  8. Install the EN-44226-3  remover screw (1) through the EN-44226-2  remover plate and against the EN-44226-5  protector.
  9. Counter hold the EN-44226-2  remover plate and turn the EN-51368  installer screw to remove the balancer.
  10. Remove the EN-44226  remover.
  11. Remove the crankshaft balancer (4).
  12. Remove the EN-44226-5  protector.
