Installation Procedure

WARNING: This page is about a different variant/trim than selected.

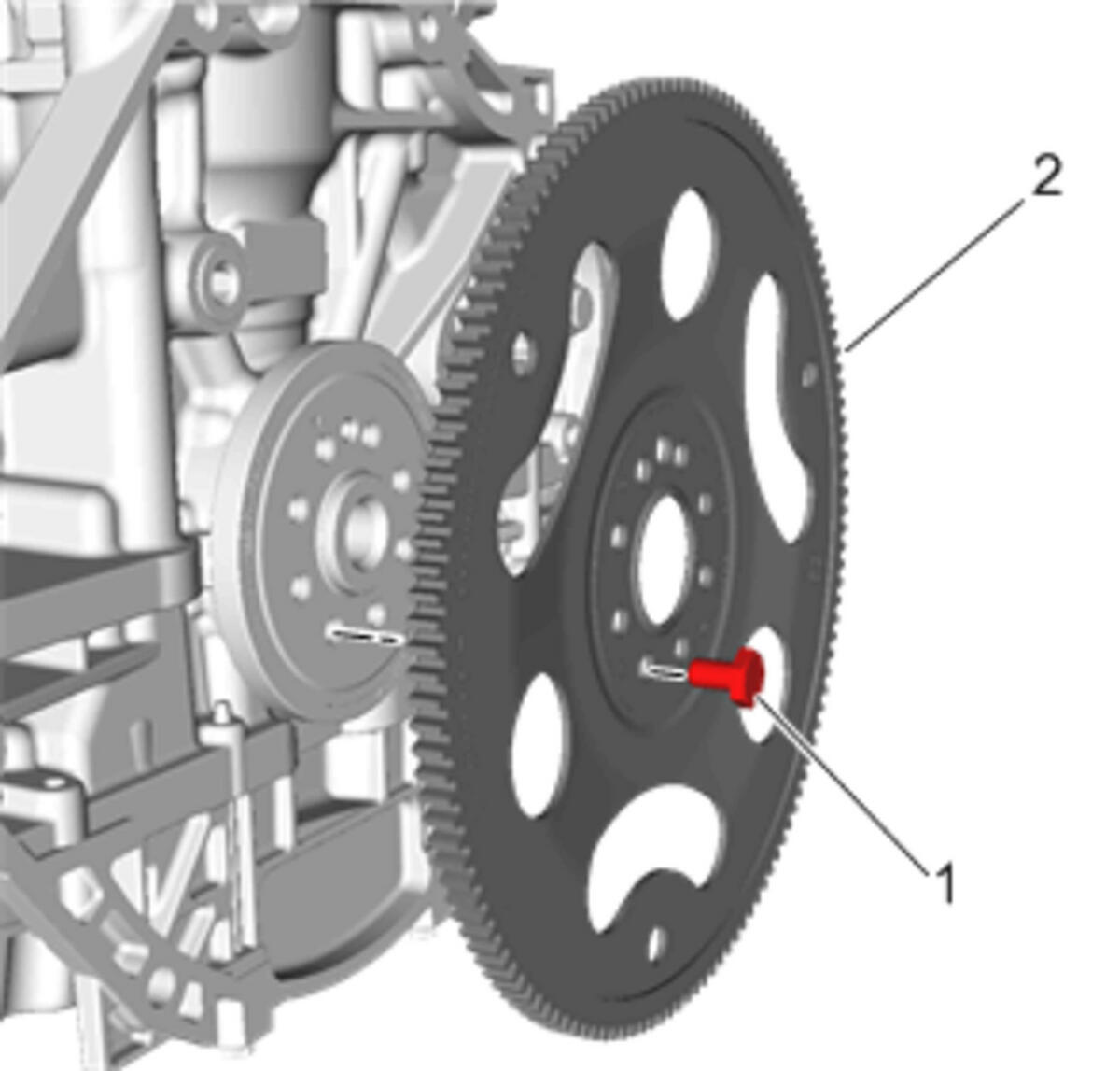

    Fig 1: Automatic Transmission Flex Plate Bolt
    GM4233655Courtesy of GENERAL MOTORS COMPANY
  1. Install Engine Flywheel (2)
    2. NOTE:

    Install NEW bolts.

    NOTE:

    Bolts have adhesive patch and must be tightened to final torque within 5 minutes.

  2. Loosely install Automatic Transmission Flex Plate Bolt (1)

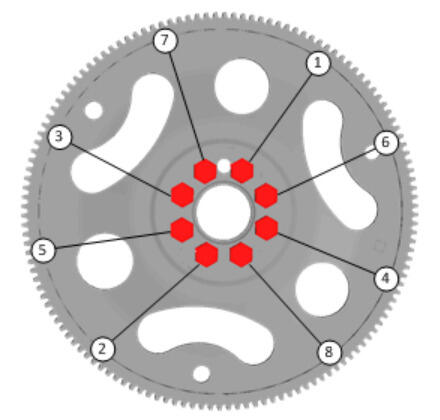

    3. Fig 2: Flywheel Bolts
    GM4233658Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    CAUTION:

    Refer to Torque-to-Yield Fastener Caution .

  3. Tighten the flywheel bolts in the sequence shown.

    Tighten

    1. First Pass:20 N.m (15 lb ft)
    2. Second Pass:30 N.m (22 lb ft)
    3. Final Pass:70 degrees, using the EN-45059  angle meter
  4. Remove the EN-51760  Holding tool.
  5. Install Transmission - Transmission Replacement (Front Wheel Drive except Diesel Engine)Transmission Replacement (All Wheel Drive except Diesel Engine)Transmission Replacement (All Wheel Drive with Diesel Engine, Equinox)Transmission Replacement (Front Wheel Drive with Diesel Engine)Transmission Replacement (All Wheel Drive with Diesel Engine, Terrain)
