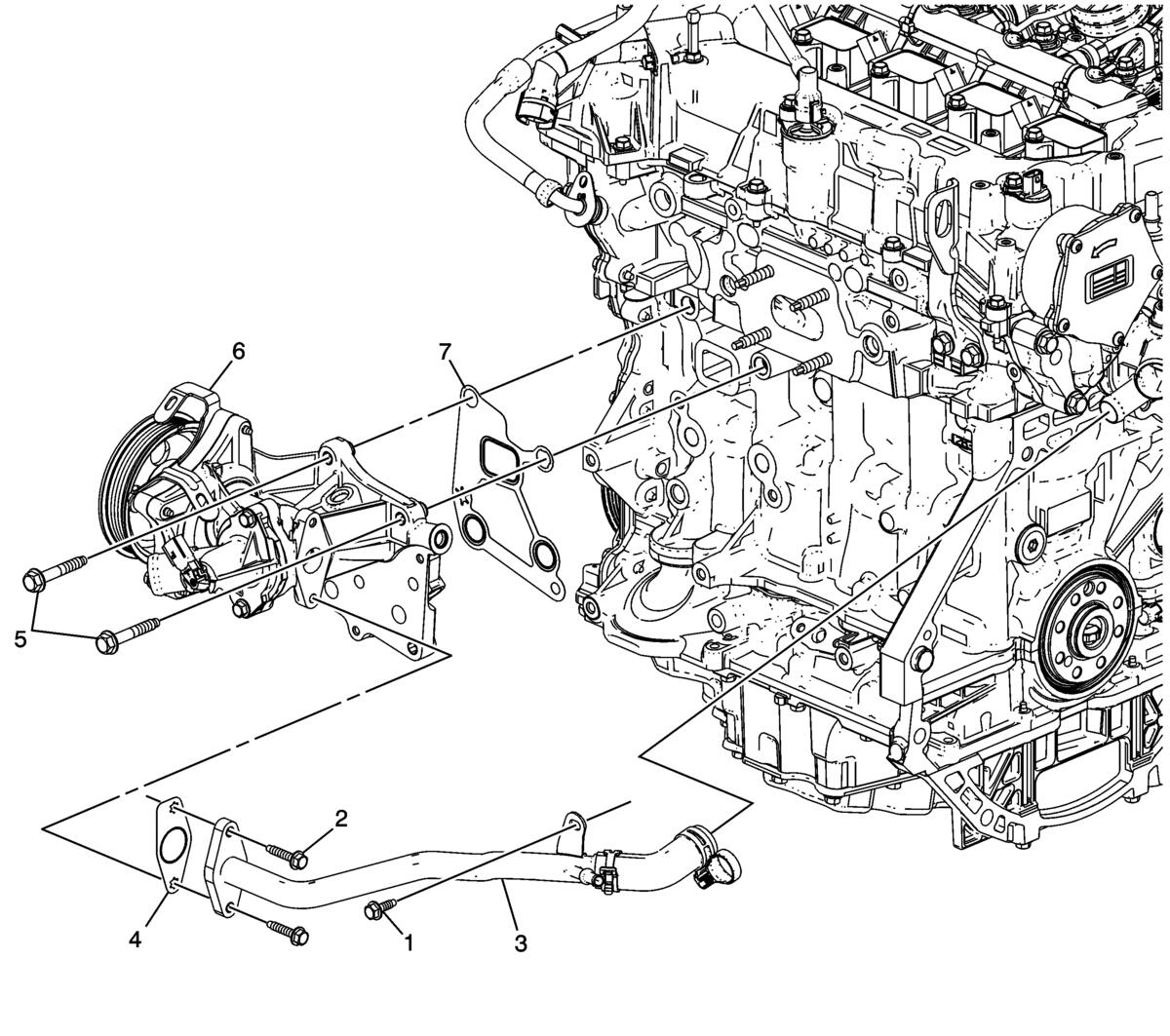

Water Pump Removal
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
| 1 |
Thermostat Bypass Pipe Bolt (Qty: 1) |
| 2 |
Thermostat Bypass Pipe Bolt (Qty: 2) |
| 3 |
Thermostat Bypass Pipe Assembly |
| 4 |
Thermostat Bypass Pipe Gasket |
| 5 |
Water Pump Bolt (Qty: 2) |
| 6 |
Water Pump |
| 7 |
Water Pump Housing Gasket |
