Water Outlet Removal

WARNING: This page is about a different variant/trim than selected.

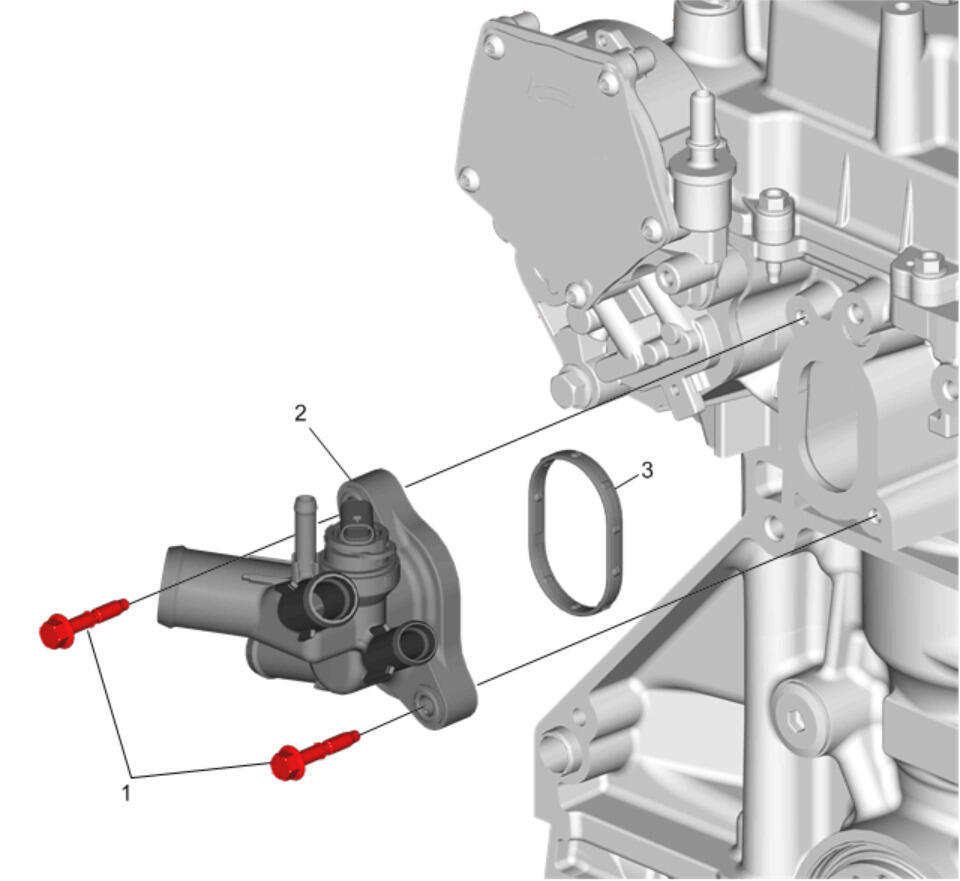

Fig 1: Water Outlet
GM3599981Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Water Outlet Assembly Bolt (Qty: 2)
2 Water Outlet Assembly
3 Water Outlet Gasket
