Vacuum Pump Removal

WARNING: This page is about a different variant/trim than selected.

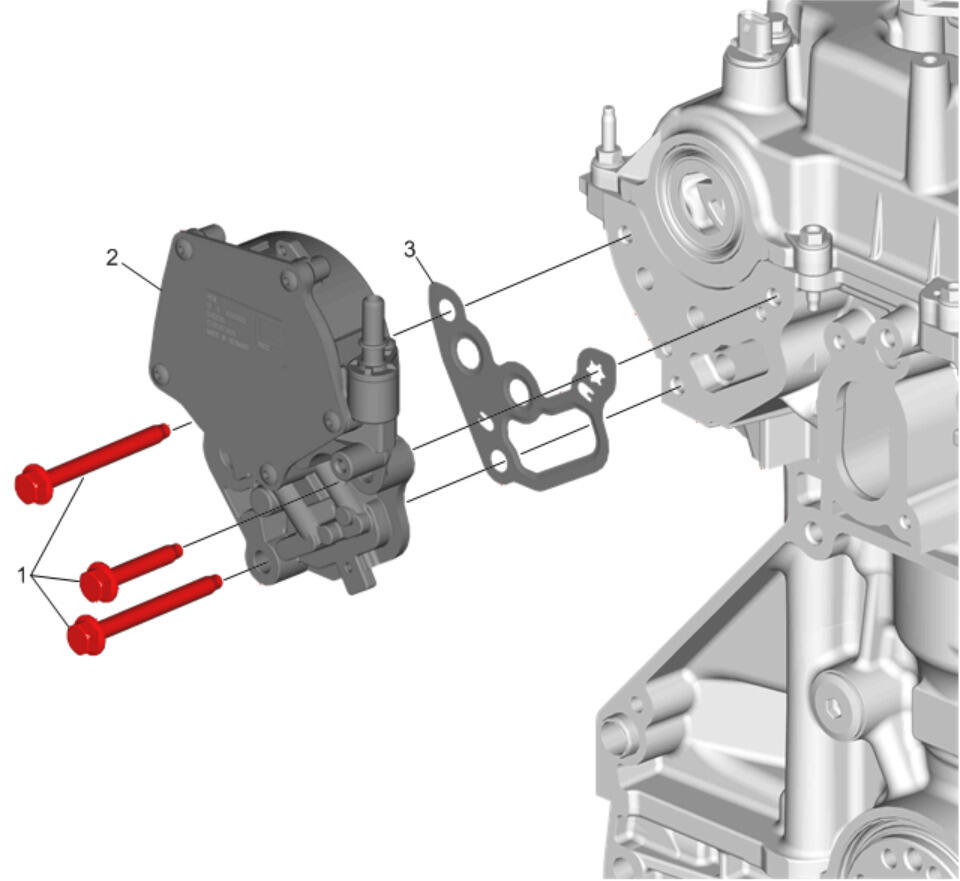

Fig 1: Vacuum Pump
GM3599987Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Vacuum Pump Assembly Bolt (Qty: 3)
2 Vacuum Pump Assembly
3 Vacuum Pump Gasket
